Hardware Setup

N300 Wireless Gigabit Router WNR3500Lv2

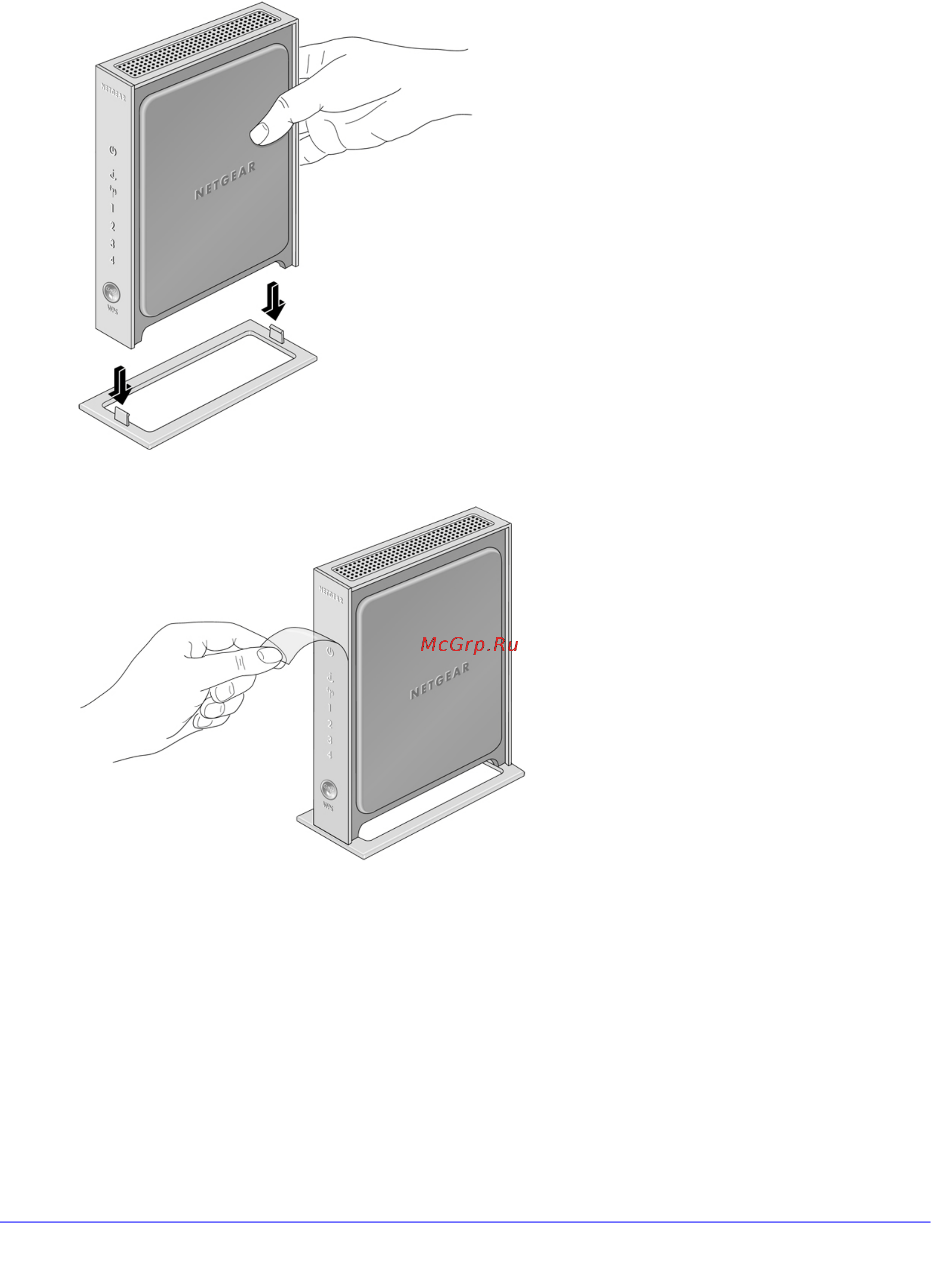

2. Set up your N300 Wireless router by inserting the tabs of the stand (supplied with your

router) into the slots on the bottom of your router as shown.

3. Remove the protective film covering the front panel of the router.

4. Place your router in a suitable area for installation (near an AC power outlet and accessible

to the Ethernet cables for your wired computers).
