Administration
64
N300 Wireless Gigabit Router WNR3500Lv2
Domain Name Server. The Domain Name Server addresses being used by the router. A
Domain Name Server translates human-language URLs such as www.netgear.com into IP
addresses.
Statistics Button
On the Router Status screen, in the Internet Provider (WAN) Setup pane, click the Statistics
button to display the following screen:

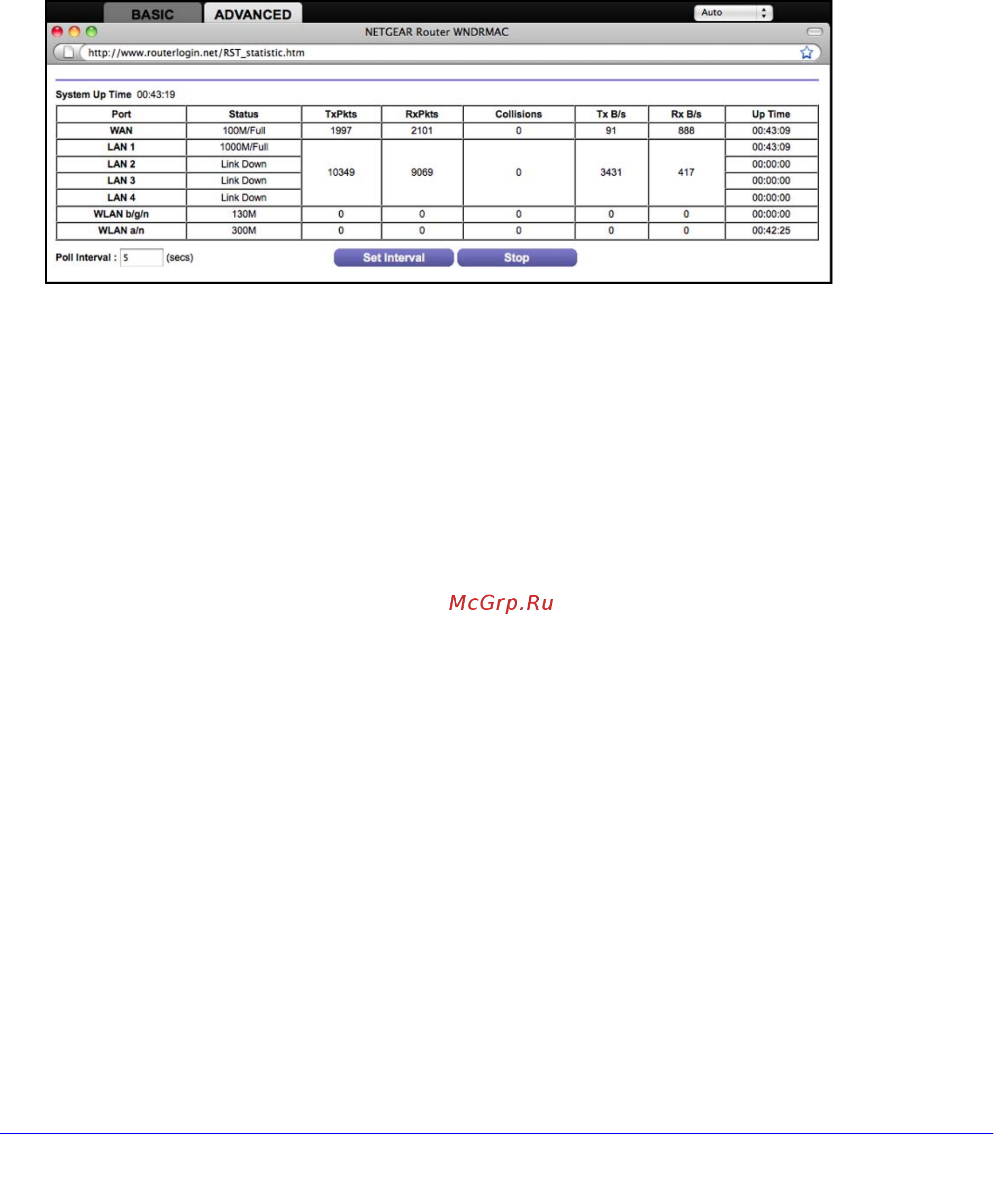

Figure 6. System up time and poll interval statistics
System Up Time. The time elapsed since the router was last restarted.
Port. The sta
tistics for the WAN (Internet) and LAN (Ethernet) ports. For each port, the
screen displays:
• St
atus. The
link status of the port.
• TxPkts. The
number of packets transmitted on this port since reset or manual clear.
• RxPkts. The n
umber of packets received on this port since reset or manual clear.
• Collisions. Th
e number of collisions on this port since reset or manual clear.
• Tx B/s. The current transmission (outbound) bandwidth used on the WAN and LAN ports.
• Rx B/s. The current re
ception (inbound) bandwidth used on the WAN and LAN ports.
• Up Time. Th
e time elapsed since this port acquired the link.
• Poll Interval. Th
e interval at which the statistics are updated in this screen.
To change the polling frequency, enter a time in seconds in the Poll Interval field, and click
Set Interval.
To stop the polling entirely, click St
o
p.
