Advanced Settings
91
N300 Wireless Gigabit Router WNR3500Lv2
IPv6
You can use this feature to set up an IPv6 Internet connection type if NETGEAR Genie does
not detect it automatically.
To set up an IPv6 Internet connection type:

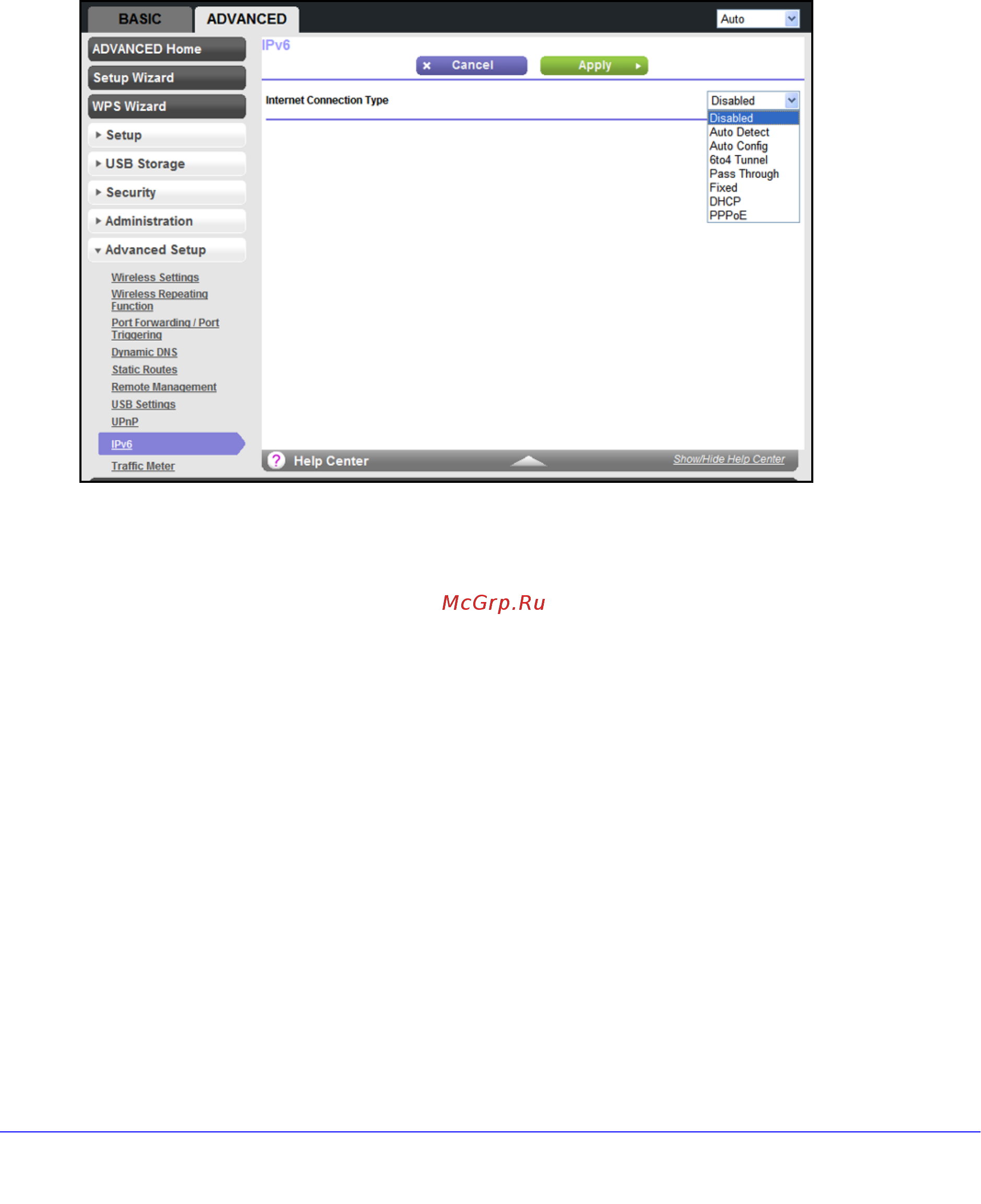

1. Select Advanced > Adva
nced Setup > IPv6 to display the following screen:
2. Select the IPv6 connection type from the list. Your Internet service provider (ISP) can
provide this information.
• If your ISP did not provide det
ails, you can select IPv6 Tunnel.
• If you are not sure, select Auto Detect so that
the router detects the IPv6 type that is
in use.
• If your Internet connection does not use PPPoE, DHCP, or
fixed, but is IPv6, then
select IPv6 auto config.
3. Click Appl
y so that your changes take effect.
Traffic Meter
Traffic metering allows you to monitor the volume of Internet traffic passing through your
router’s Internet port. With the Traffic Meter utility, you can set limits for traffic volume, set a
monthly limit, and get a live update of traffic usage.
