Genie Advanced Home
38
N300 Wireless Gigabit Router WNR3500Lv2
LAN Setup
The LAN Setup screen allows configuration of LAN IP services such as Dynamic Host
Configuration Protocol (DHCP) and Routing Information Protocol (RIP).
The router is shipped preconfigured to use private IP a
ddresses on th
e LAN side and to act
as a DHCP server. The router’s default LAN IP configuration is:
• LAN IP ad
dress.
192.168.1.1
• Subnet mask. 255.2
55.255.0
These addresses are part of the designated private address range for use in private networks
and should be
suitable for most applications. If your network has a requirement to use a
different IP addressing scheme, you can make those changes in the LAN Setup screen.
To change the LAN settings:
Note: If you change the LAN IP address of the router while connected
through the browser, you will be disconnected. You will have to open
a new connection to the new IP address and log in again.

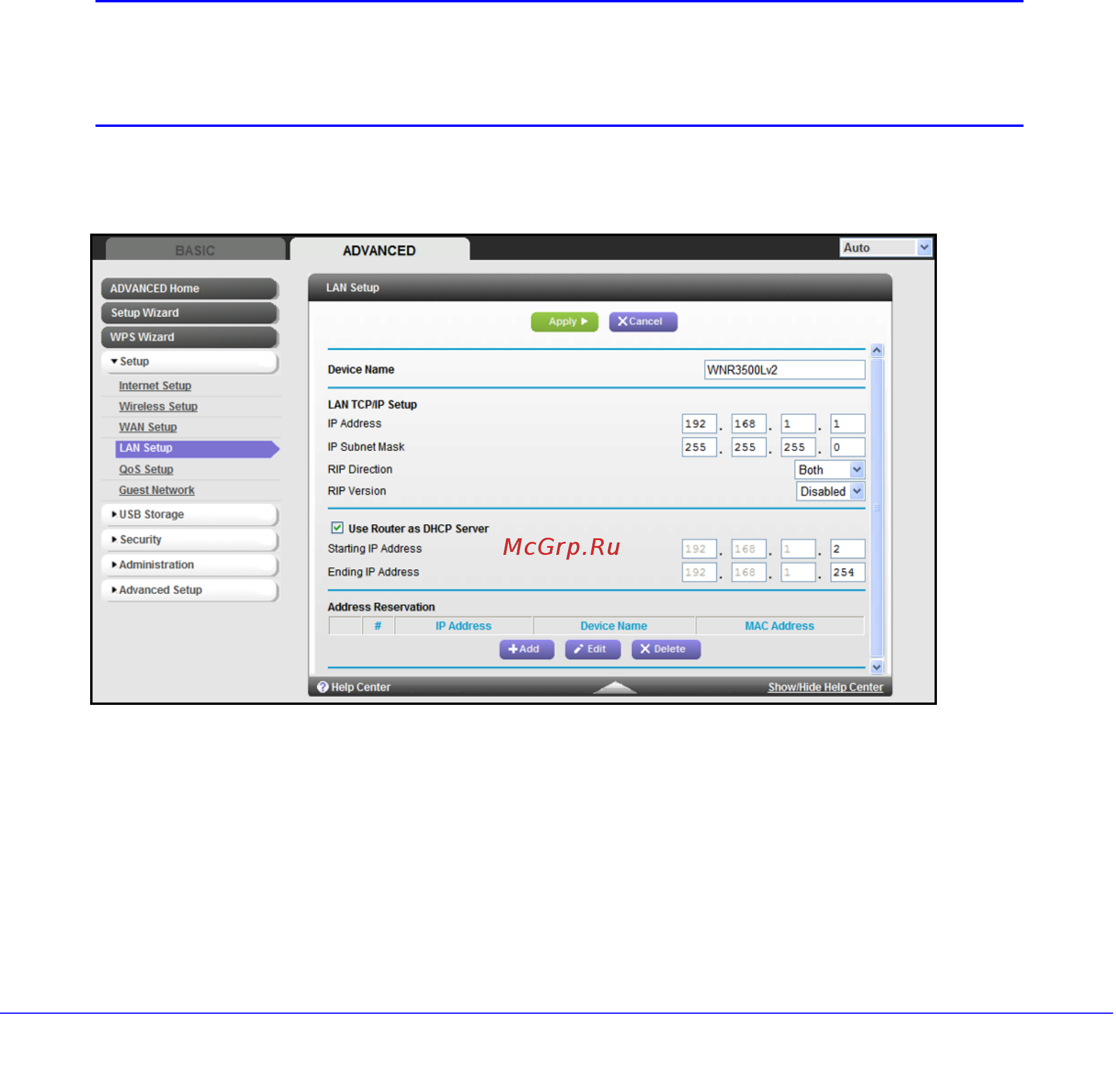

1. Select Advanced > Setup > LAN Setup to display the following screen:
2. Enter the settings that you want to customize. These settings are described in the following
section, LAN Setup Screen Settings.
3. Click Apply to save
your changes.
