Hardware Setup
9
N300 Wireless Gigabit Router WNR3500Lv2
Front Panel

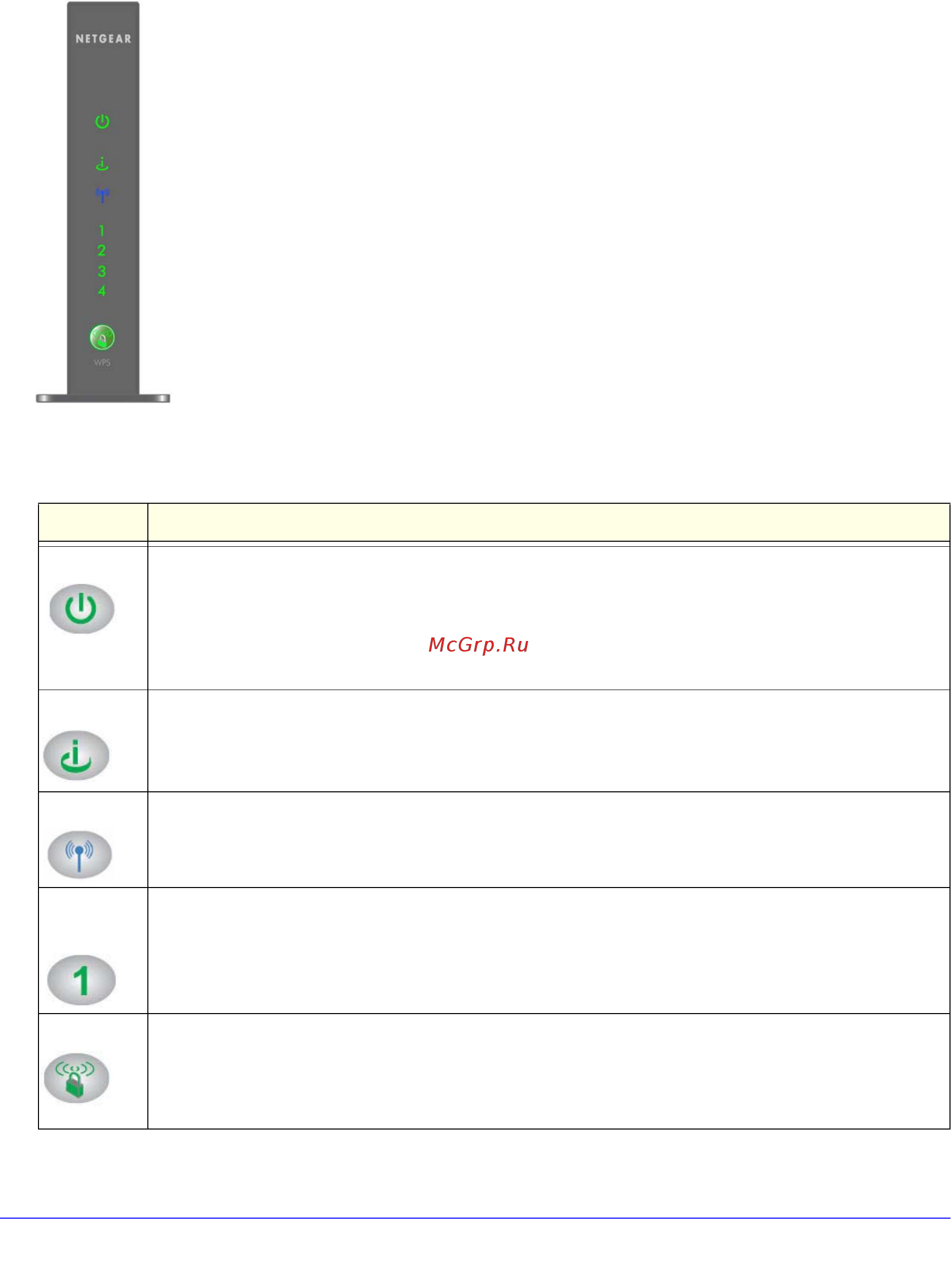

The router front panel has the status LEDs and icons shown in the figure.
Figure 2. Front panel
Table 1. Front panel LED descriptions
LED Description
Power
• Solid amber. The unit is starting up after being powered on.
• Solid green. T
he power is on, and the router is ready.
• Blinking amber. A firmware update is in progress.
• Blinking green.
The firmware is corrupt.
• Off. Power is
not supplied to the router.
Internet
• Solid amber. The IP address has not been acquired.
• Solid green. An
IP address has been received; ready to transmit data.
• Off. No Ethernet
cable is connected between the router and the modem.
Wireless
• Solid blue. The wireless radio is operating.
• Off. The wireless radio is off.
LAN ports
1–4
• Solid green. The LAN port has detected a 1,000 Mpbs link with an attached device.
• Solid amber. The
LAN port has detected a 10 Mbps link with an attached device.
• Off. No link is detected on th
is port.
WPS • Solid green. Indicates that wireless security is enabled.
• Blinking green.
The router is attempting to use WPS to add a wireless device or computer to
the wireless network.
• Off. No WPS co
nnection exists.
