Advanced Settings
73
N300 Wireless Gigabit Router WNR3500Lv2
Wireless Repeater. The router sends all traffic from its local wireless or wired computers to a
remote access point. To configure this mode, you have to know the MAC address of the
remote parent access point.
For you to set up a wireless network with WDS,
the following conditions have to be met for
both access points:
• Both acce
ss
points have to use the same SSID, wireless channel, and encryption mode.
• Both access
points have to be on the same LAN IP subnet. That is, all the access point
LAN IP addresses are in the same network.
• All LAN devices (wired and wireless computers) have to be configured to operate in the
same LAN network addre
ss range as the access points.

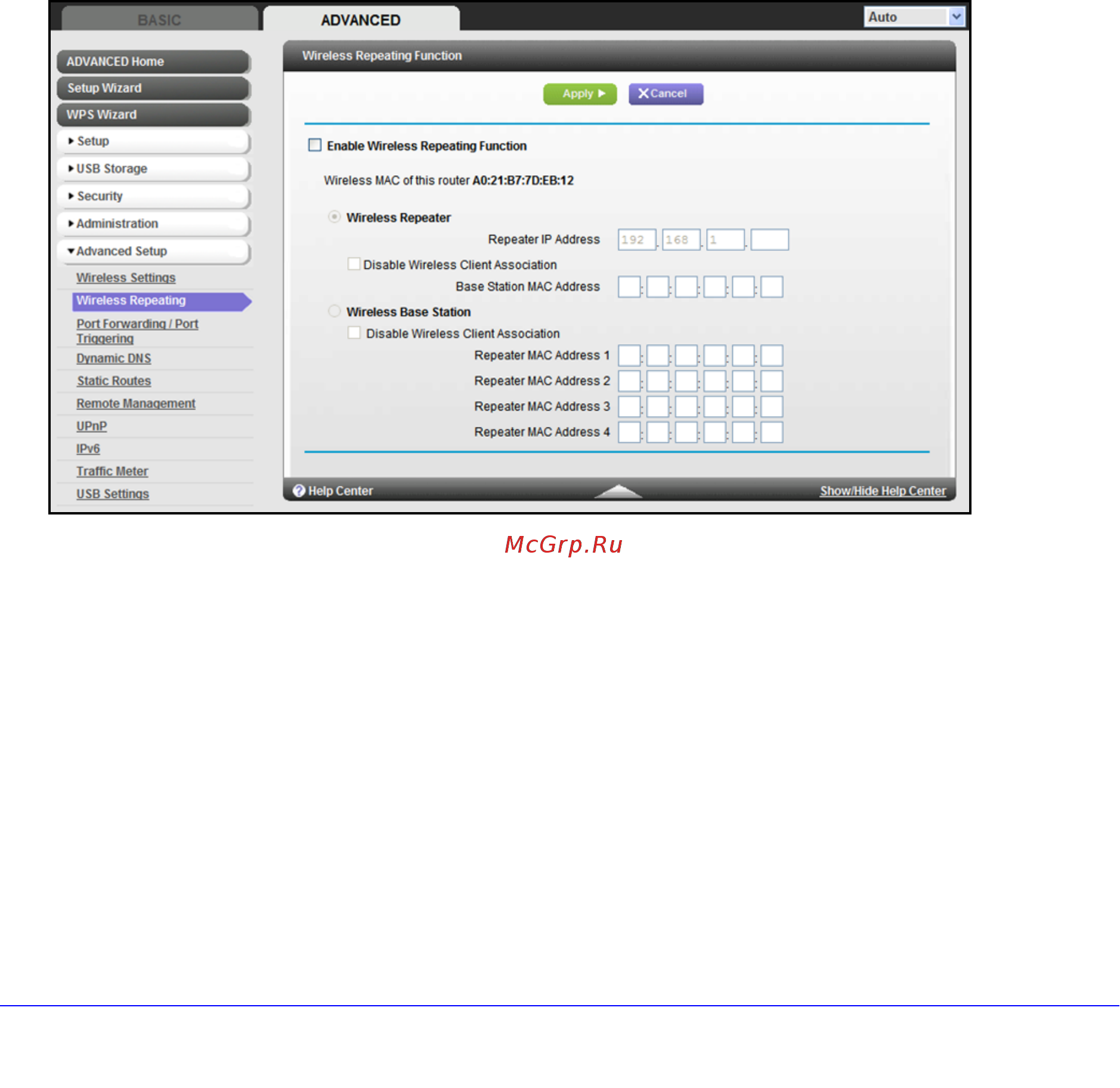

Wireless Repeating Function
Select Advanced > Advanced Setup > Wireless Repeating Function to view or change
wireless repeater settings for the router.
• Enable Wireless Repeating Function. Select the check box for the network to use the
wireless repeating function.
• Wireless MAC of this router.
This field displays the MAC address for your router for
your reference. You need to enter this MAC address in the corresponding Wireless
Repeating Function screen of the other access point you are using.
• Wireless Repeater. If your ro
uter is the repeater, select this check box.
Repeater IP Address. If yo
ur router is the repeater, enter the IP address of the other
access point.
Disable Wireless Client Association.
If your ro
uter is the repeater, selecting this check
box means that wireless clients cannot associate with it. Only LAN client associations are
allowed.
