Netgear WNR3500L [32/114] Setup wizard

Genie Advanced Home

N300 Wireless Gigabit Router WNR3500Lv2

Setup Wizard

The NETGEAR Genie installation process is launched the first time you set up the router.

After setting up the router the first time, if you want to perform this task again, you can run

Setup Wizard from the Advanced tab of the Genie.

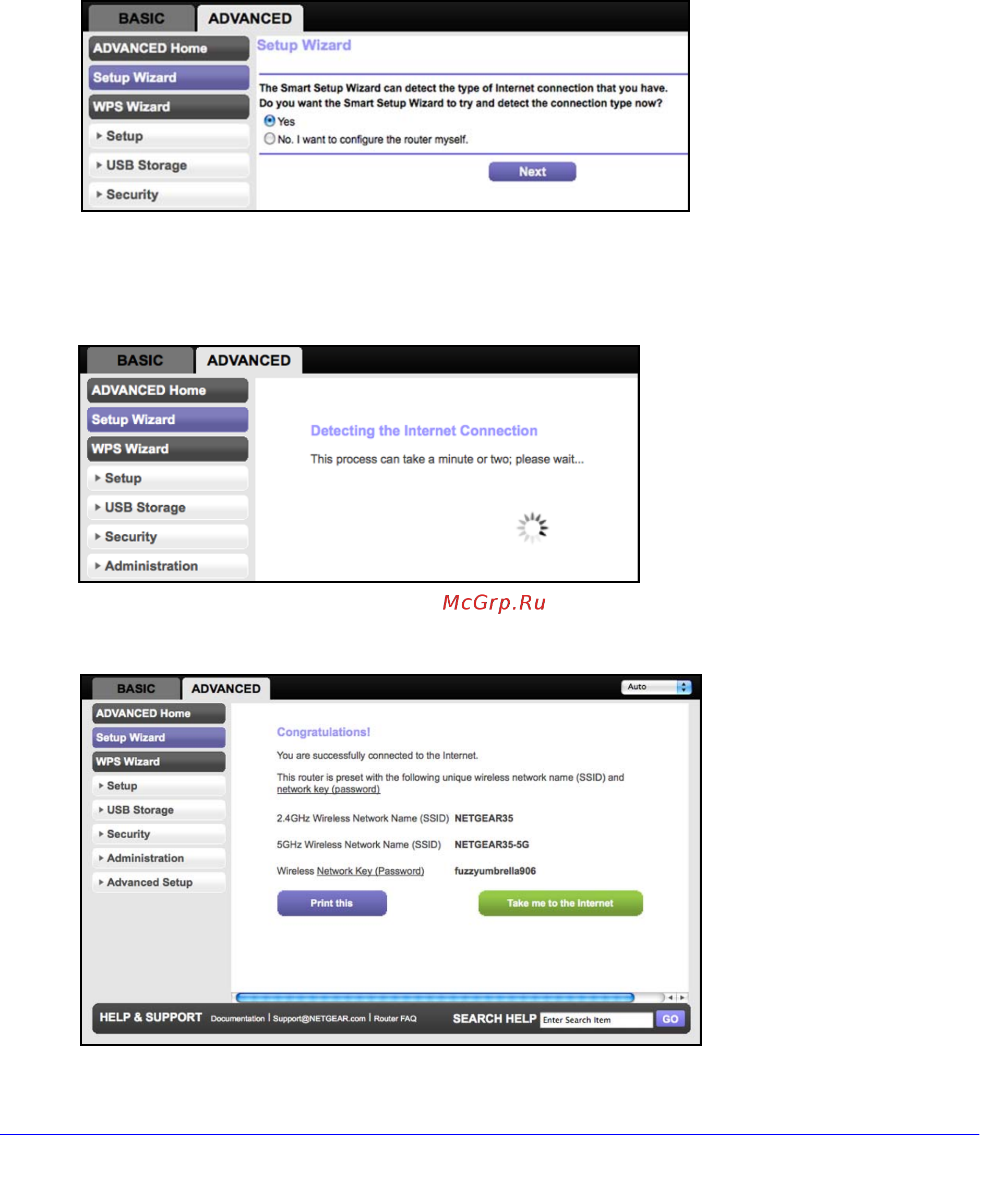

1. Select Setup Wi

zard to display the following screen:

2. Select either Yes or No, I want to configure the router myself. If you select No, you are

taken to the Internet Setup screen (see Internet Setup on pa

ge 22).

3. If you selected Ye

s, click Next. The following screen displays:

The Setup Wizard searches your Internet connection for servers and protocols to

determine your ISP configuration. The following screen displays:
