Advanced Settings
87
N300 Wireless Gigabit Router WNR3500Lv2
To set up a static route:

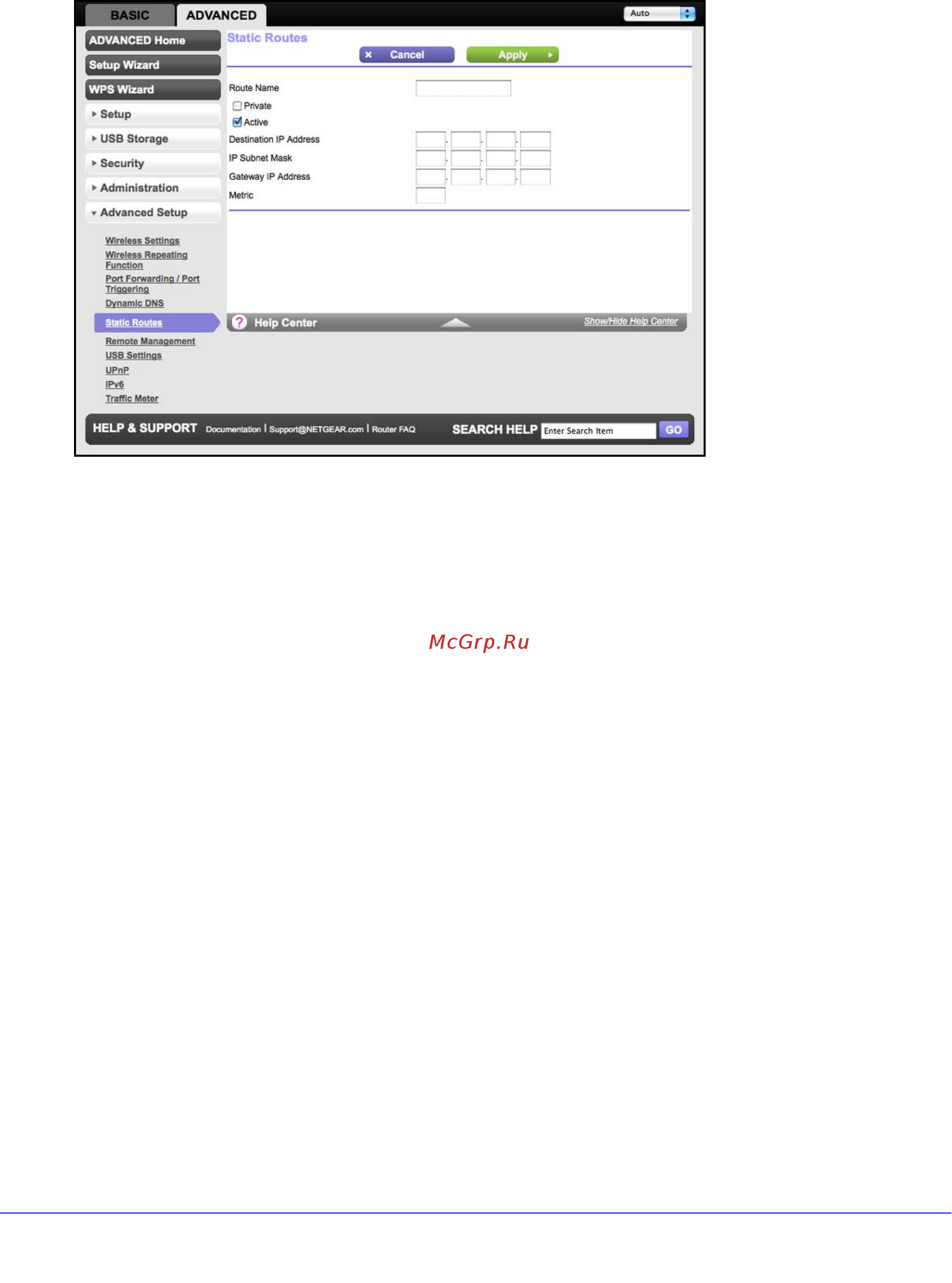

1. Select Advanced > Advanced Setup > Static Routes, and click Add to display the
following screen:
2. In the Route Name field, type a name for this static route (for identification purposes only.)
3. Select the Pri
vate check box if you want to limit access to the LAN only. If Private is
selected, the static route is not reported in RIP.
4. Select the Active ch
eck box to make this route effective.
5. Type the IP address of the final destination.
6. Type the IP subnet mask for this destination. If the destination is a single host, type
255.25
5.255.255.
7. Type the gateway IP address, which has to be a router on the same LAN segment as the
N300
Wireless Router.
8. Type a number between 1 and 15 as the metric value.
T
his value represents the number of routers between your ne
twork and the destination.
Usually, a setting of 2 or 3 works, but if this is a direct connection, set it to 1.
9. Click App
l
y to add the static route.
