Aten VS0102 [12/25] Switch command for cascaded splitters
![Aten VS0102 [12/25] Switch command for cascaded splitters](/views2/1211545/page12/bgc.png)
VS0102/04/08 RS-232 Control Tool
12
Switch Command for Cascaded Splitters
Serial port commands for cascaded splitters require identifying the chain of
ports to which the target device is connected. The formula for Switch Port
commands in a cascade are as follows:
Switch Command + Output Command + Port Number (at first stage) + Port
Number (at second stage) + Port Number (at third stage) + Control

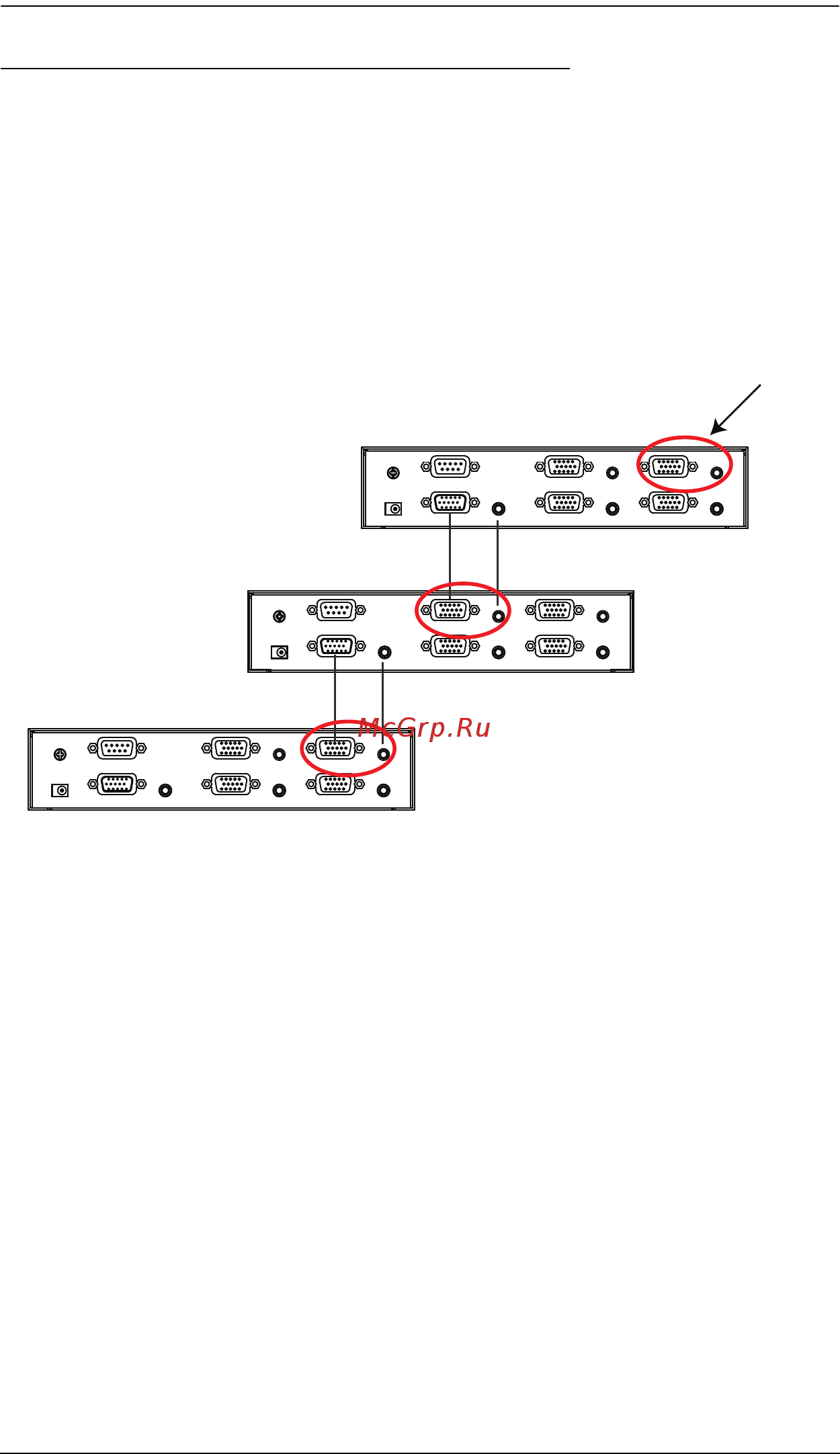

For the example above, the command for switching off the Target Output Port
4 of the splitter connected to Port 3 at the second stage of the cascade, which,
in turn, is connected to output Port 4 at the first stage unit, is as follows:
sw o04-03-04 off
This cascade command format is applied to Mute Commands, page 17, Read
Info Commands, page 20, and Reset Commands, page 23. However, the
cascade commands are not applicable for the Version or EDID commands,
which are only applied to the first stage unit.
First Stage Unit
Second Stage Unit
Third Stage Unit
Target
Output
