VS0102/04/08 RS-232 Control Tool
13
EDID Mode

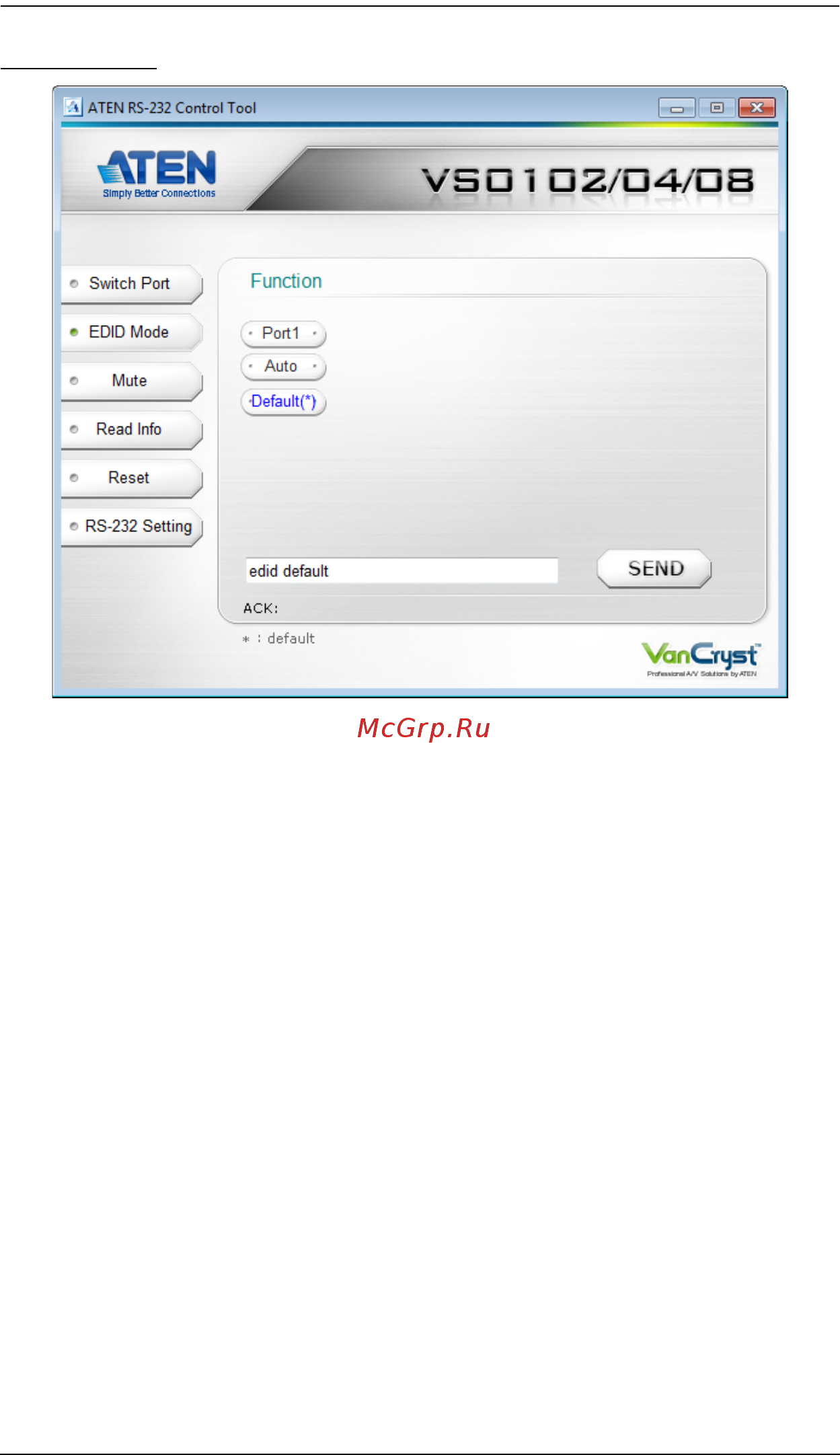

The EDID Mode page is used to set the EDID setting for all displays. The
EDID Mode page provides three options - Port1, Auto, and Default(*), as
described below.
Port1: The EDID from port1 will be passed to the video source for use
with all displays.
Auto: The EDID will automatically be selected and passed to each video
source.
Default: The default EDID will be passed to all video sources.
Use the text box to manually enter the command.
Click SEND to send the command.
