VS0102/04/08 RS-232 Control Tool
19

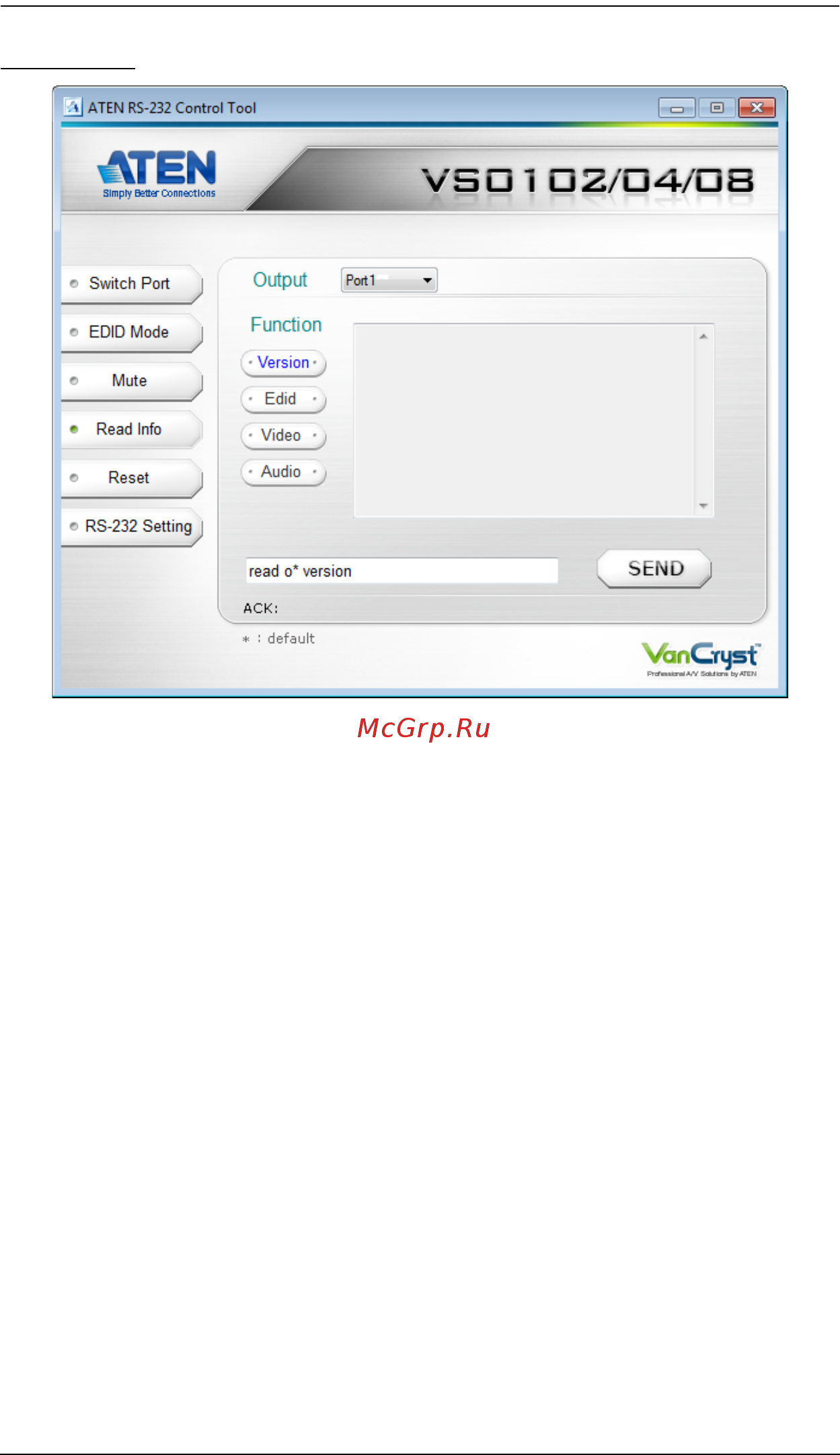

Read Info
The Read Info page is used to get configuration information from the VS0102
/ VS0104 / VS0108, which is displayed in the large text box on the center of
the page. On the Read Info page, the following actions are possible:
Select an Output port from the drop-down menu.
Select Version to display the VS0102 / VS0104 / VS0108’s firmware
version.
Select EDID to display the current EDID setting for all ports.
Select Video to display the current on/off video status of a port.
Select Audio to display the current on/off audio status of a port.
Use the text box to manually enter the command.
Click SEND to send the command.
