VS0102/04/08 RS-232 Control Tool
8
GUI Main Page
The RS-232 Control Tool is a convenient and intuitive application to send RS-
232 commands to your VS0102 / VS0104 / VS0108. The various elements of
the GUI are described in the following sections. For detailed information about
the function of each RS-232 command, see the VS0102 / VS0104 / VS0108’s
user manual.

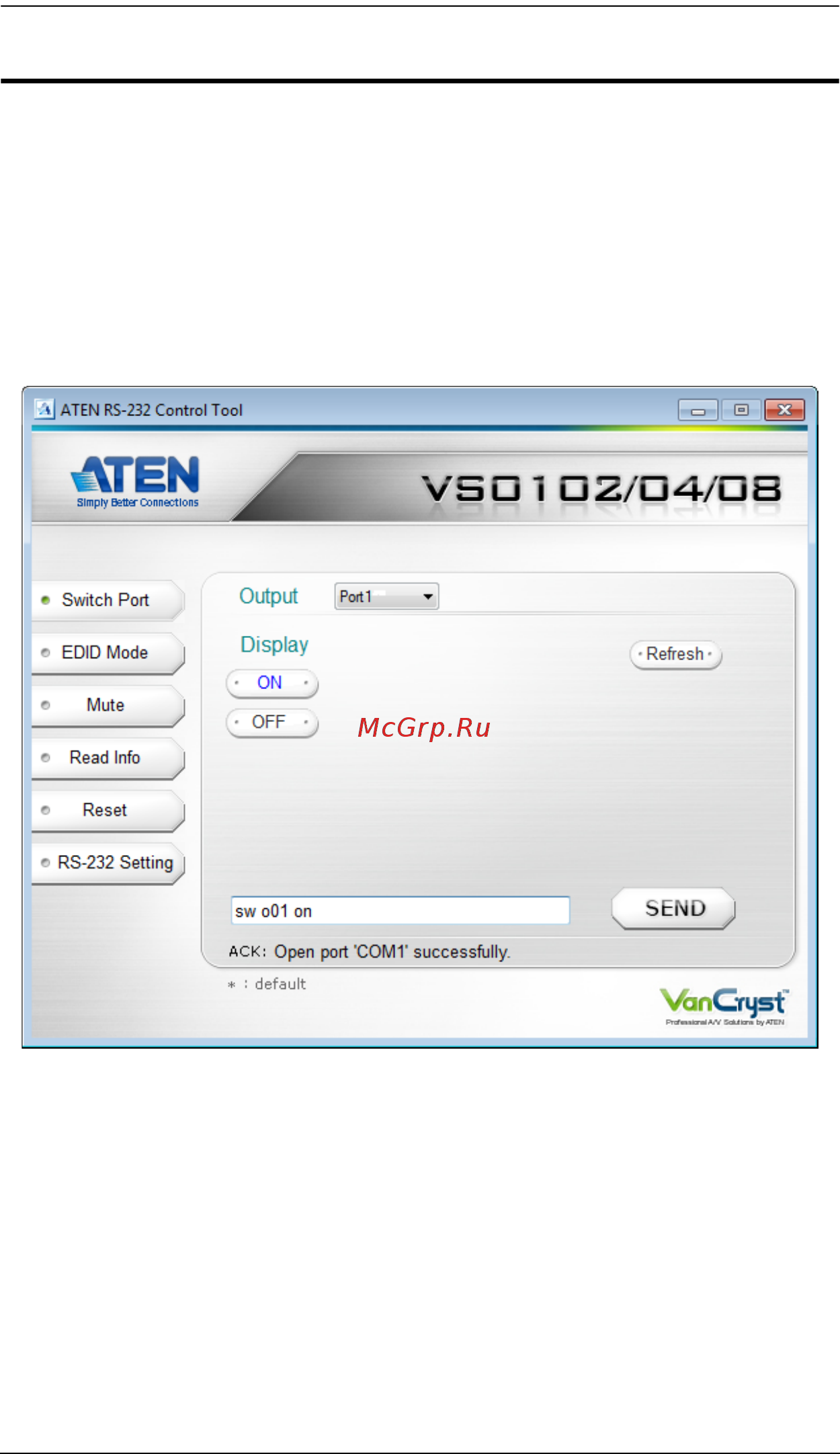

To invoke the GUI, simply click the RS-232 Control Tool shortcut. The
interface opens on the Switch Port page by default, as shown below:
