VS0102/04/08 RS-232 Control Tool
7

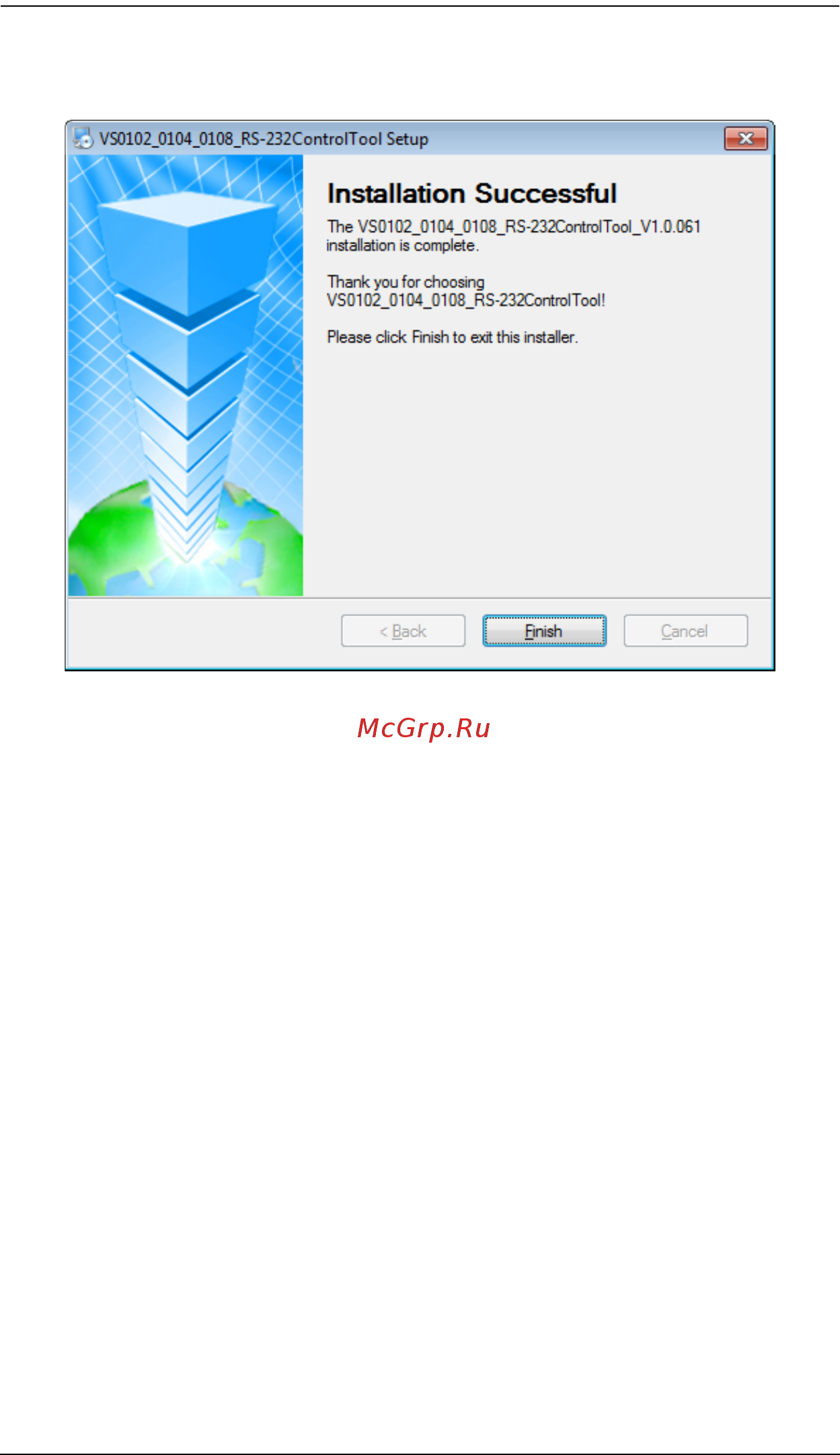

9. When the installation has completed successfully, the following screen
will appear:
Click Finish. You are now ready to use the RS-232 Control Tool.
