VS0102/04/08 RS-232 Control Tool
16
Mute

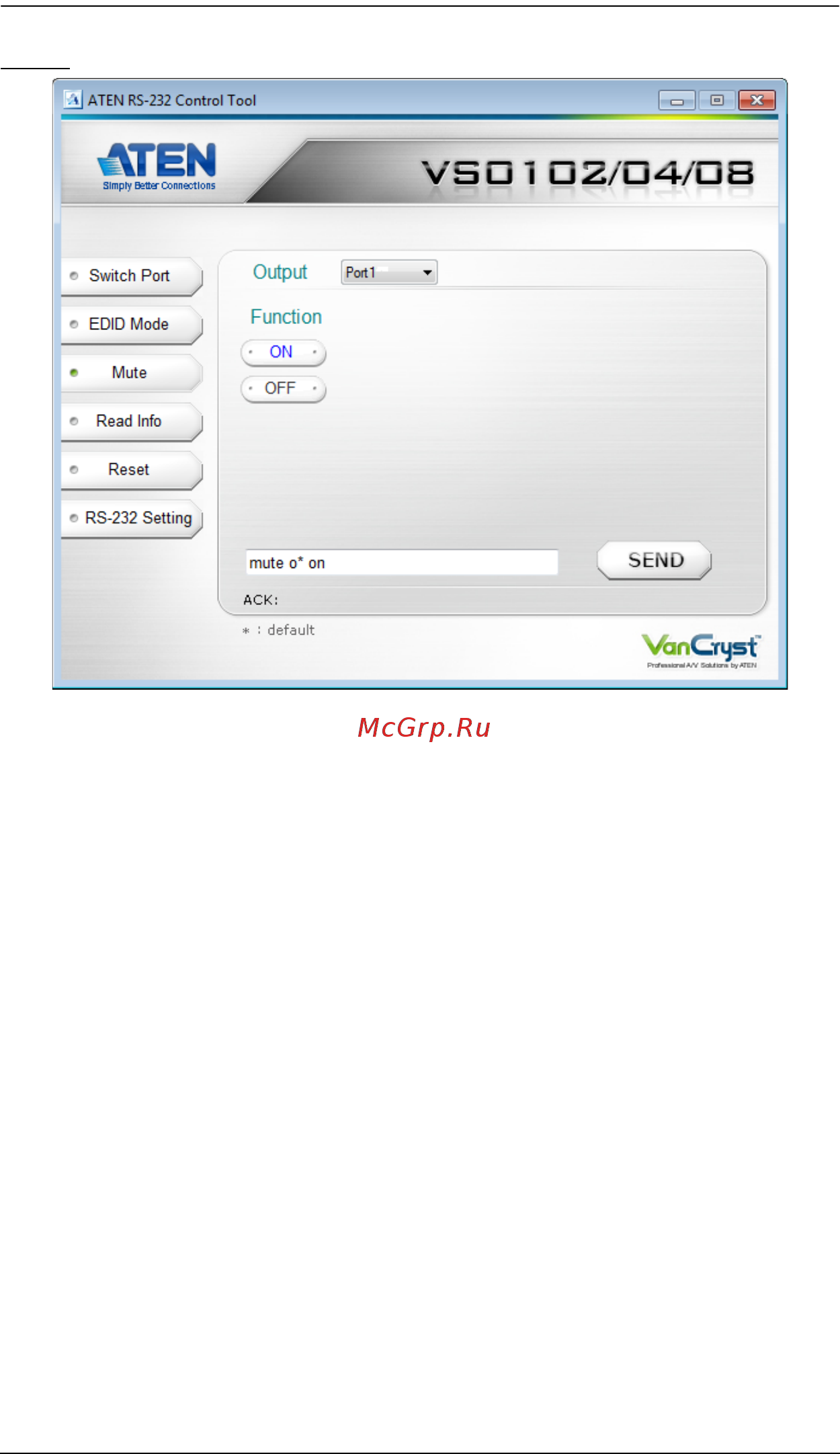

The Mute page is used to turn audio on or off for an output port. On the Mute
page, the following actions are possible:
Select an Output port from the drop-down menu.
Click ON to mute the selected port.
Click OFF to enable the audio of the selected port.
Use the text box to manually enter the command.
Click SEND to send the command.
