VS0102/04/08 RS-232 Control Tool
22
Reset

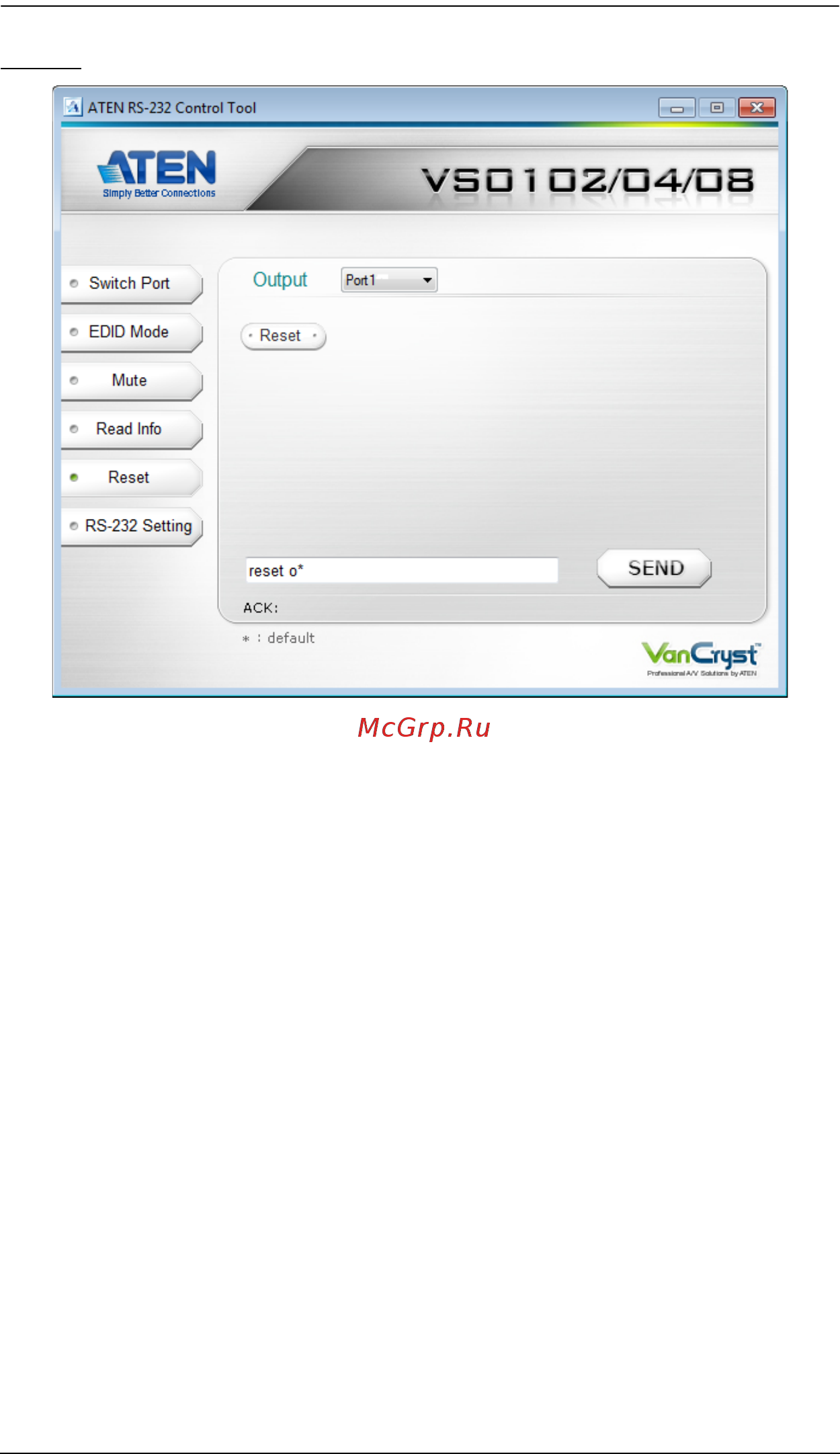

The Reset page is used to reset the VS0102 / VS0104 / VS0108 back to the
factory default settings. On the Reset page, the following actions are possible:
Select an Output port from the drop-down menu.
Select Reset to reset the current port settings back to the factory default
settings.
Use the text box to manually enter the command.
Click SEND to send the command.
