VS0102/04/08 RS-232 Control Tool
4

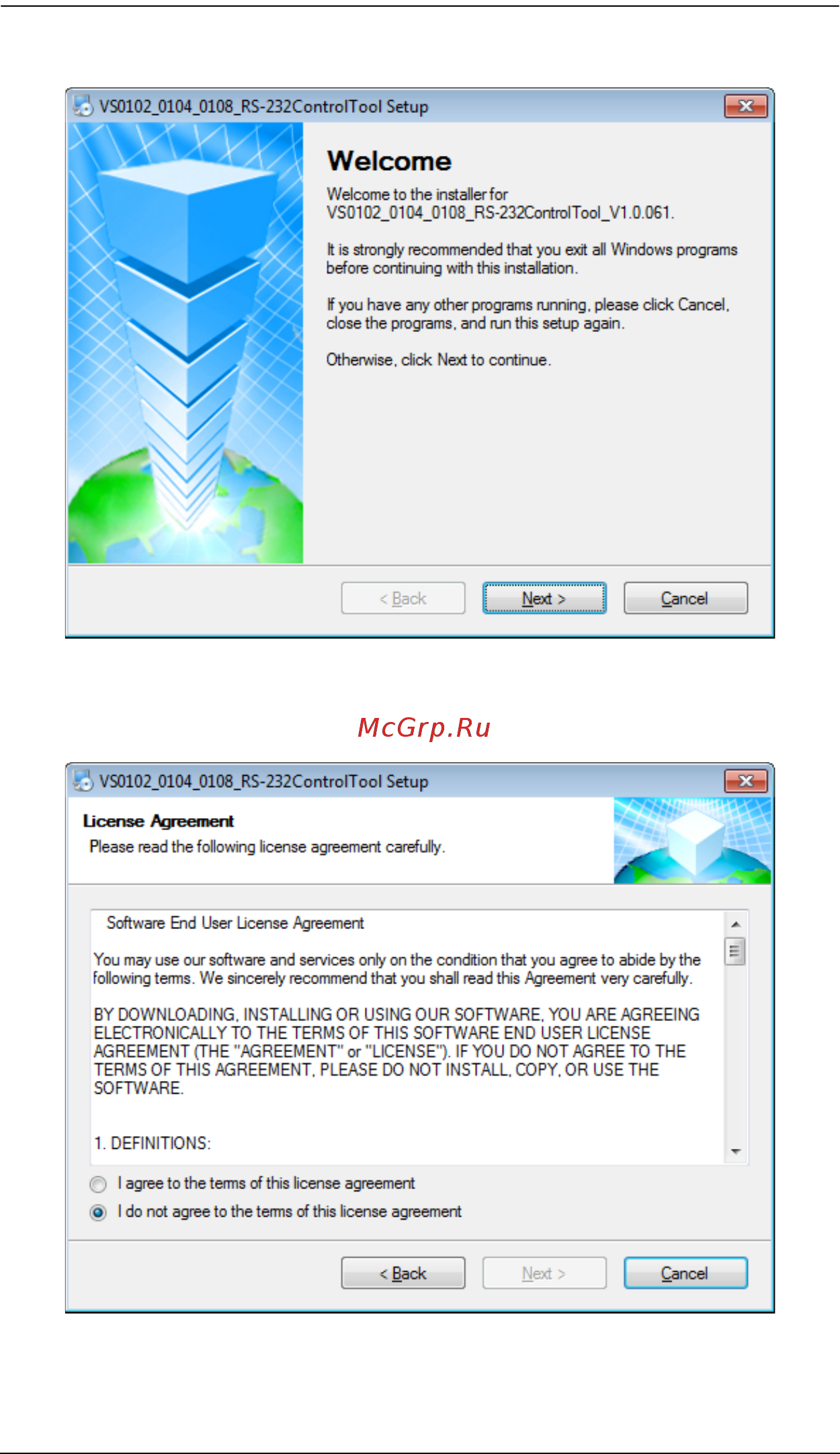

3. Double click the file to run setup. The Welcome screen appears:
Click Next.
4. The License Agreement appears:
If you agree with the License Agreement, select I agree with the terms of
this license agreement, and click Next.
