ECS Elitegroup C51G-M2 [15/88] Installing the motherboard
![ECS Elitegroup C51G-M2 [15/88] Installing the motherboard](/views2/1212428/page15/bgf.png)
9
Installing the Motherboard
Checking Jumper Settings

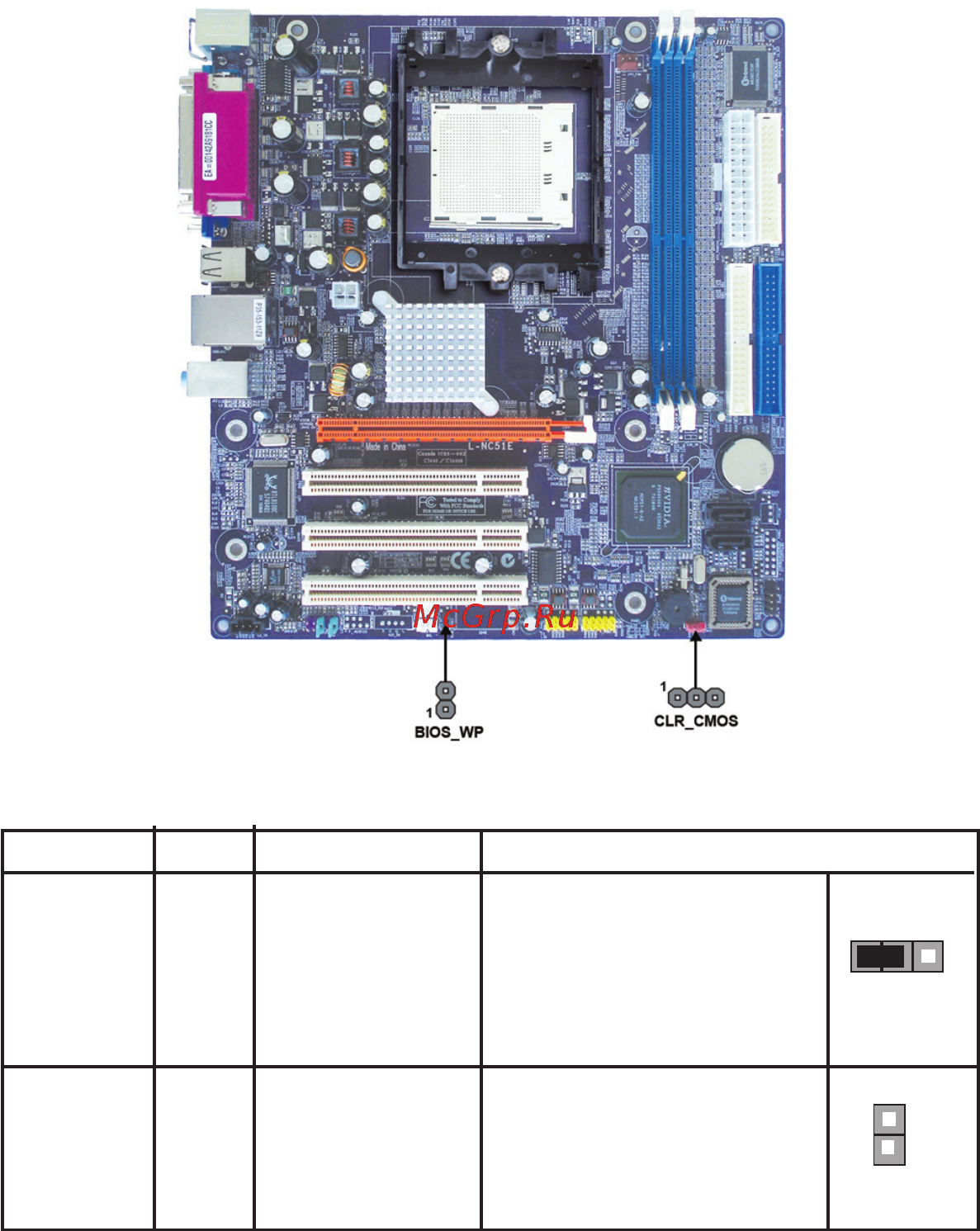

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
Type
Description
Setting (default)
BIOS PROTECT
2-pin
BIOS_WP
OPEN: Write Enable
SHORT: Write Disable
BIOS_WP
1
CLR_CMOS CLEAR CMOS
Before clearing the CMOS,
make sure to turn off the sys-
tem.
3-pin
1-2: NORMAL
2-3: CLEAR CMOS
1
CLR_CMOS
