Chapter 1: Product Introduction

Chapter 1

1.1.7 Onboard LEDs

1. POST State LEDs

The POST State LEDs provide the status of these key components during POST

(Power-On Self-Test): CPU, memory modules, VGA card, and hard disk drives. If an

error is found, the critical component’s LED stays lit up until the problem is solved.

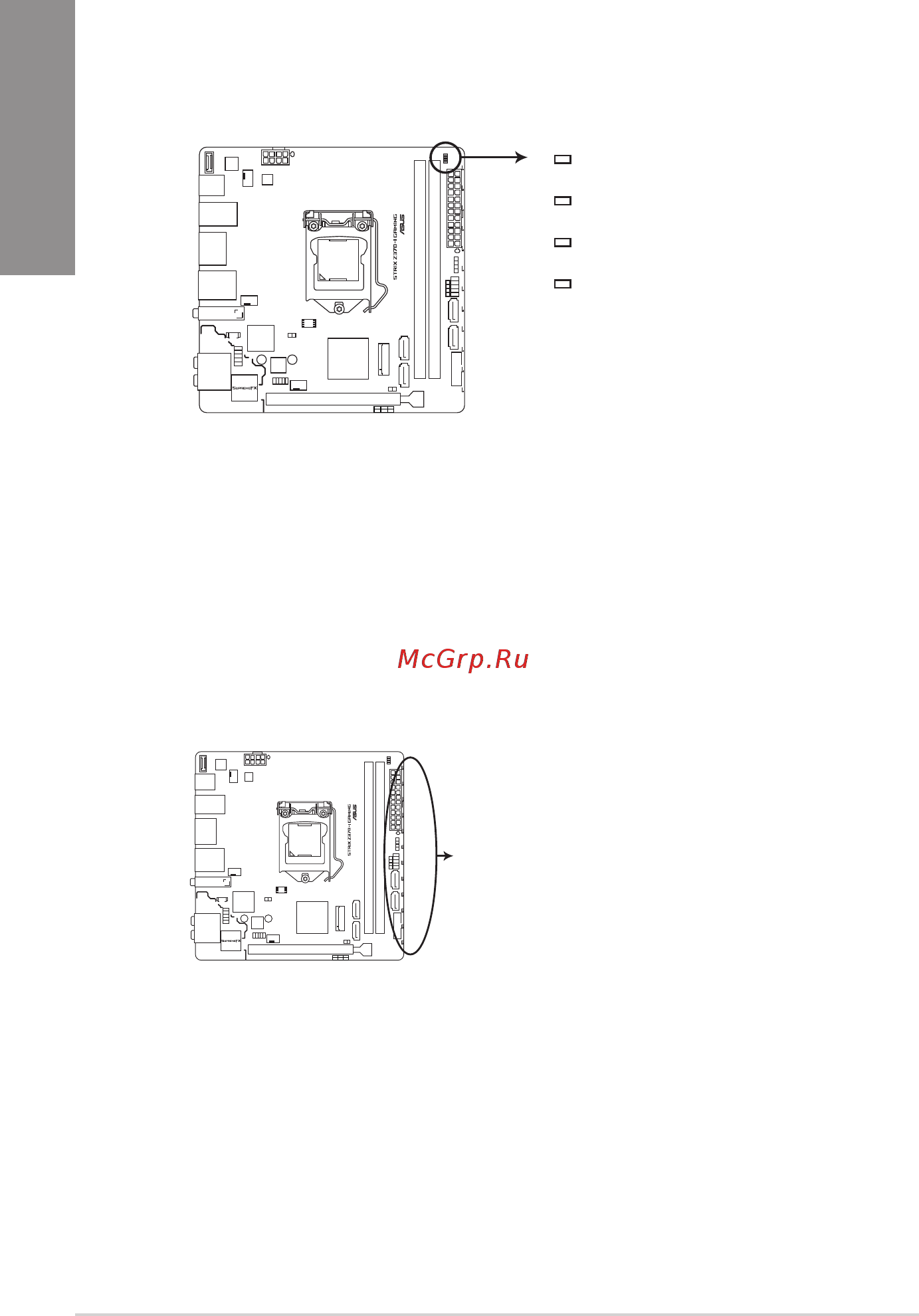

ROG STRIX Z370-I GAMING CPU/DRAM/

BOOT_DEVICE/VGA LED

CPU_LED

DRAM_LED

VGA_LED

BOOT_DEVICE_LED

2. RGB LED

The RGB LED lighting control provides several lighting schemes, which allow you

to customize your favorite LED effect. You can set your favorite LED effect to cast

a stunning multi-color glow across your build, change shades to indicate CPU

temperature, pulsate in time to the beat of your music, or set your favorite color for

each pair of LEDs.

ROG STRIX Z370-I GAMING RGB LED Lighting

RGB LED(Bottom)

RGB1

RGB2

RGB3

RGB4

RGB5

RGB6

RGB7

RGB8

RGB9

RGB10

RGB11

RGB12
