10. M.2 sockets (M.2_1; M.2_2)

These sockets allow you to install M.2 SSD modules.

• M.2_1 socket supports PCIe 3.0 x4 and SATA mode M Key design and type 2242 /

2260 / 2280 PCIe and SATA storage devices.

• M.2_2 socket supports PCIe 3.0 x4 M Key design and type 2242 / 2260 / 2280 PCIe

storage devices.

• These sockets support IRST (Intel

Rapid Storage Technology).

• These sockets support Intel

Optane Memory Ready. Intel

Optane Technology only

supported when using 8th Generation Intel

Processors. Before using Intel

Optane

memory modules, ensure that you have updated your motherboard drivers and BIOS

to the latest version from ASUS support website.

The M.2 SSD module is purchased separately.

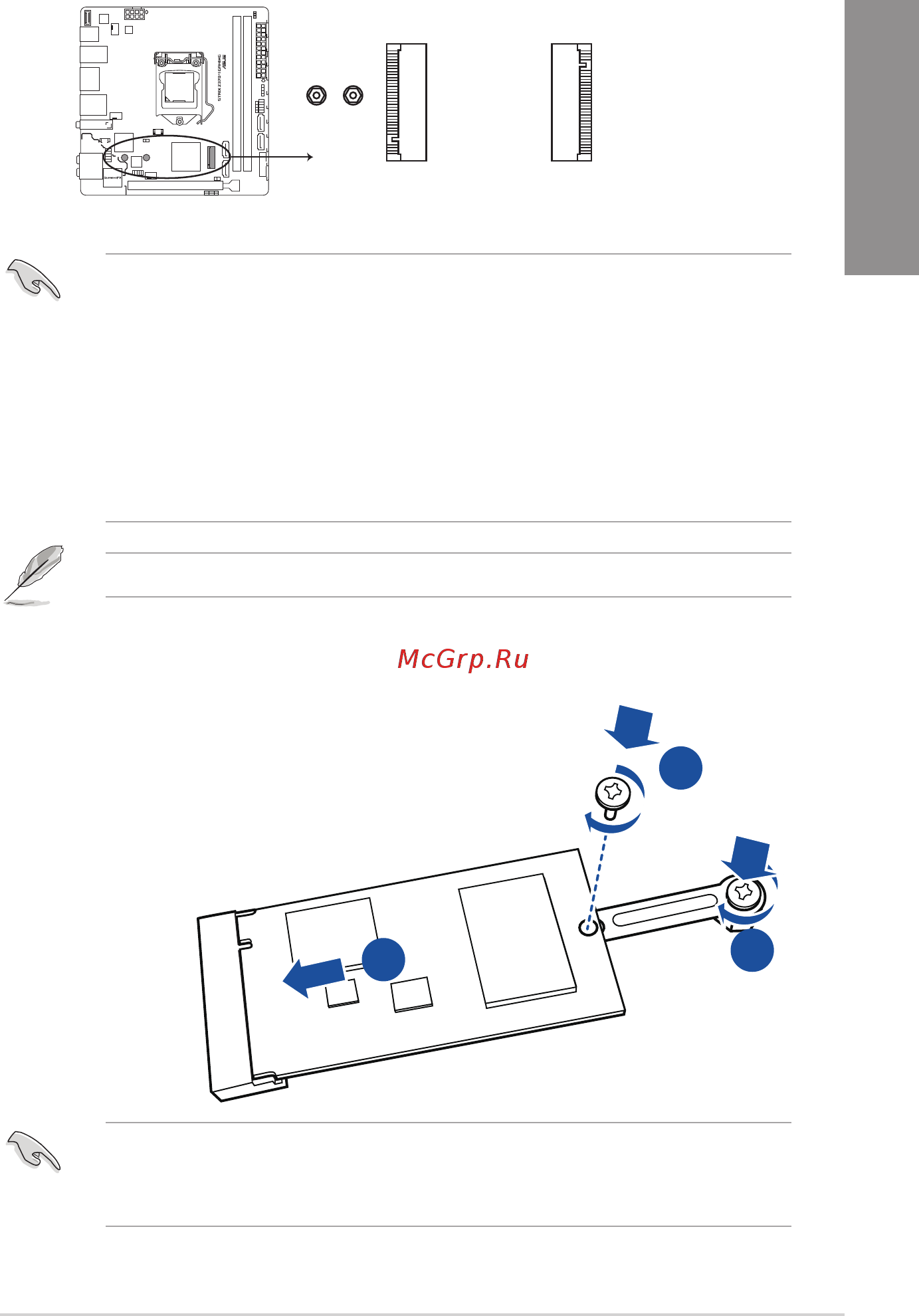

ROG STRIX Z370-I GAMING M.2(SOCKET3)s

M.2_2(SOCKET3)

(Bottom)

2280 2260

M.2_1(SOCKET3)

• For a 2242 storage device, use the bundled 2242 mounting kit.

• Before installing a 2242 M.2 SSD module, ensure that the mounting kit is properly

installed with the bigger screw hole on the 2260 standoff.

To install a 2242 M.2 SSD module:

1. Align the bigger hole on the mounting kit with the 2260

standoff and secure it with a screw.

2. Install the 2242 M.2 SSD module to the M.2 socket.

3. Secure the M.2 SSD module to the M.2 socket with a

screw.
