2-14
Chapter 2: Basic Installation
Chapter 2
2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection

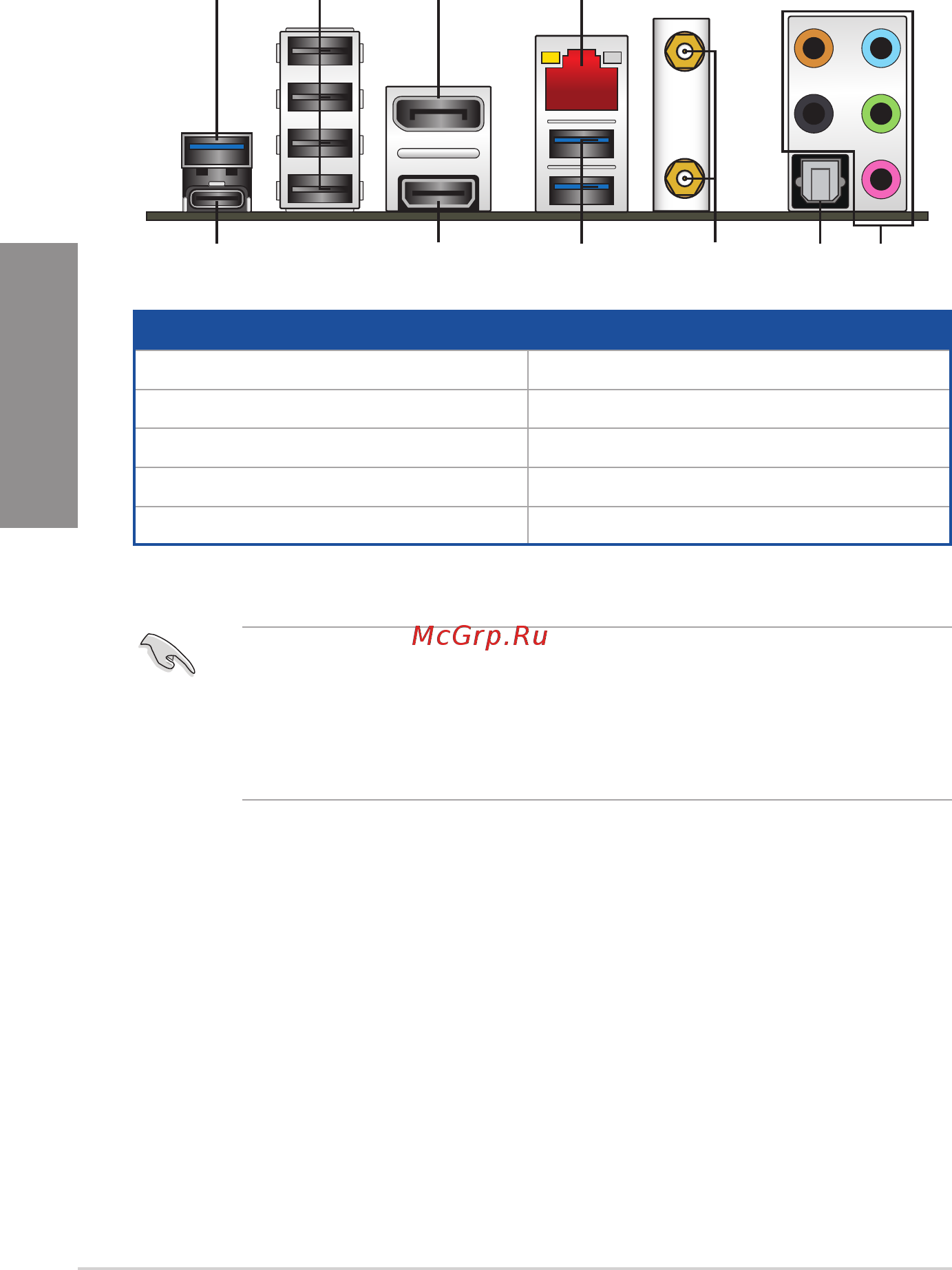

Rear panel connectors
1.
USB 3.1 Gen1 ports 6. Optical S/PDIF Out port
2.
USB 2.0 ports 7. Wi-Fi 802.11 a/b/g/n/ac, Bluetooth V4.2
3.
DisplayPort 8. HDMI 1.4b port
4.
Intel
®
LAN port (LAN1)* 9. USB 3.1 Gen1 Type-C port
5. Audio I/O ports**
* and ** : Refer to the tables on the next page for LAN port LEDs and audio port denitions.
• The plugged USB 3.1 Gen1 device may run on xHCI mode or EHCI mode, depending
on the operating system’s setting.
• USB 3.1 Gen1 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.1 Gen1 devices to USB 3.1 Gen1
ports for faster and better performance for your USB 3.1 Gen1 devices.
1 432
561 789
