ASUS ROG STRIX Z370-I GAMING
1-13
Chapter 1

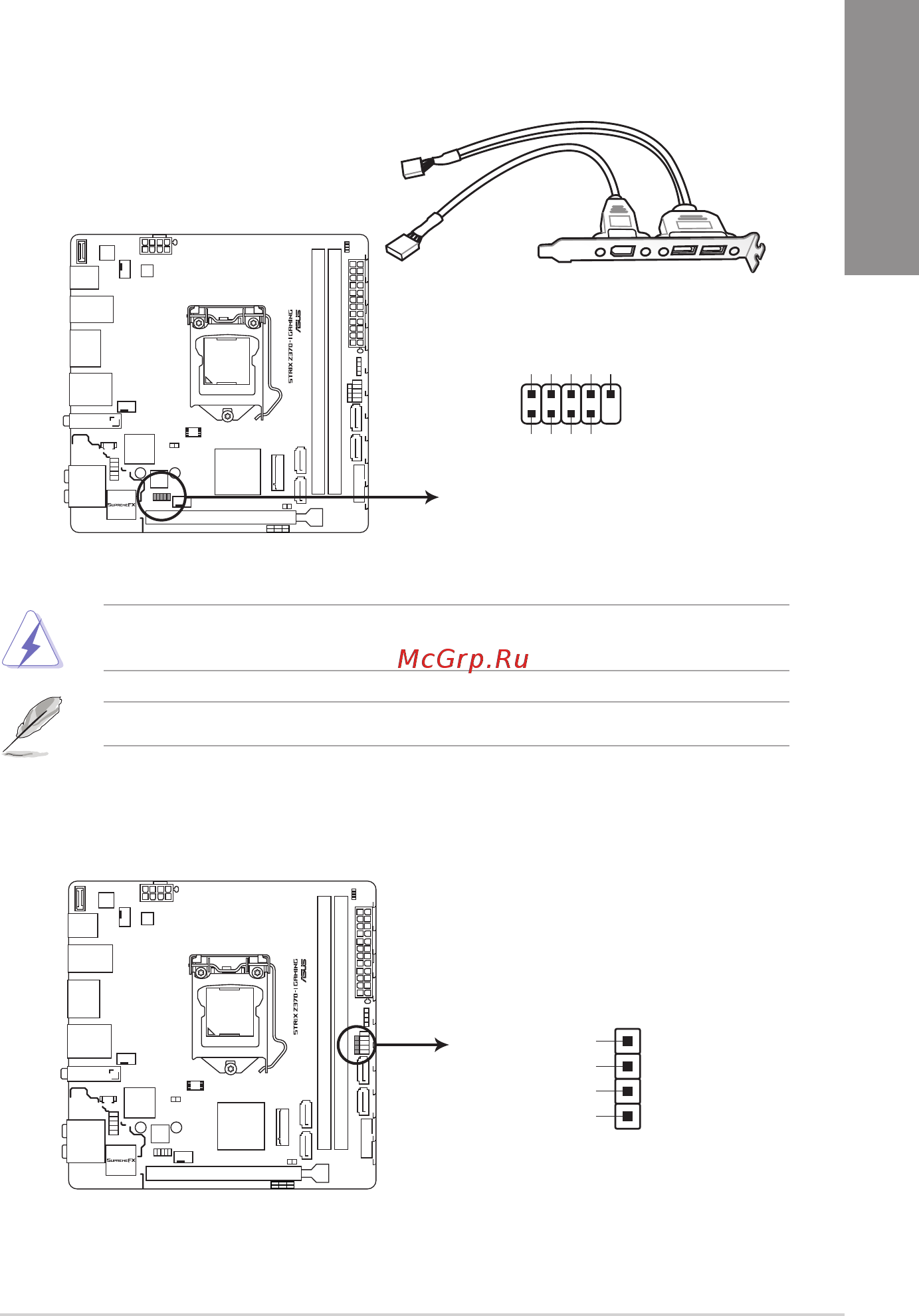

5. USB 2.0 connectors (10-1 pin USB1112)
This connector is for USB 2.0 ports. Connect the USB module cable to this connector,
then install the module to a slot opening at the back of the system chassis. This USB
connector complies with USB 2.0 specication that supports up to 480 Mb/s connection
speed.
ROG STRIX Z370-I GAMING USB2.0 connector
USB1112
PIN 1
USB+5V
USB_P11-
USB_P11+
GND
NC
USB+5V
USB_P12-
USB_P12+
GND
DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
6. Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you hear system beeps and warnings.
ROG STRIX Z370-I GAMING
Speaker Out connector
Speaker Out
GND
GND
+5V
SPEAKER
PIN 1
