3-36
Chapter 3: BIOS Setup
Chapter 3

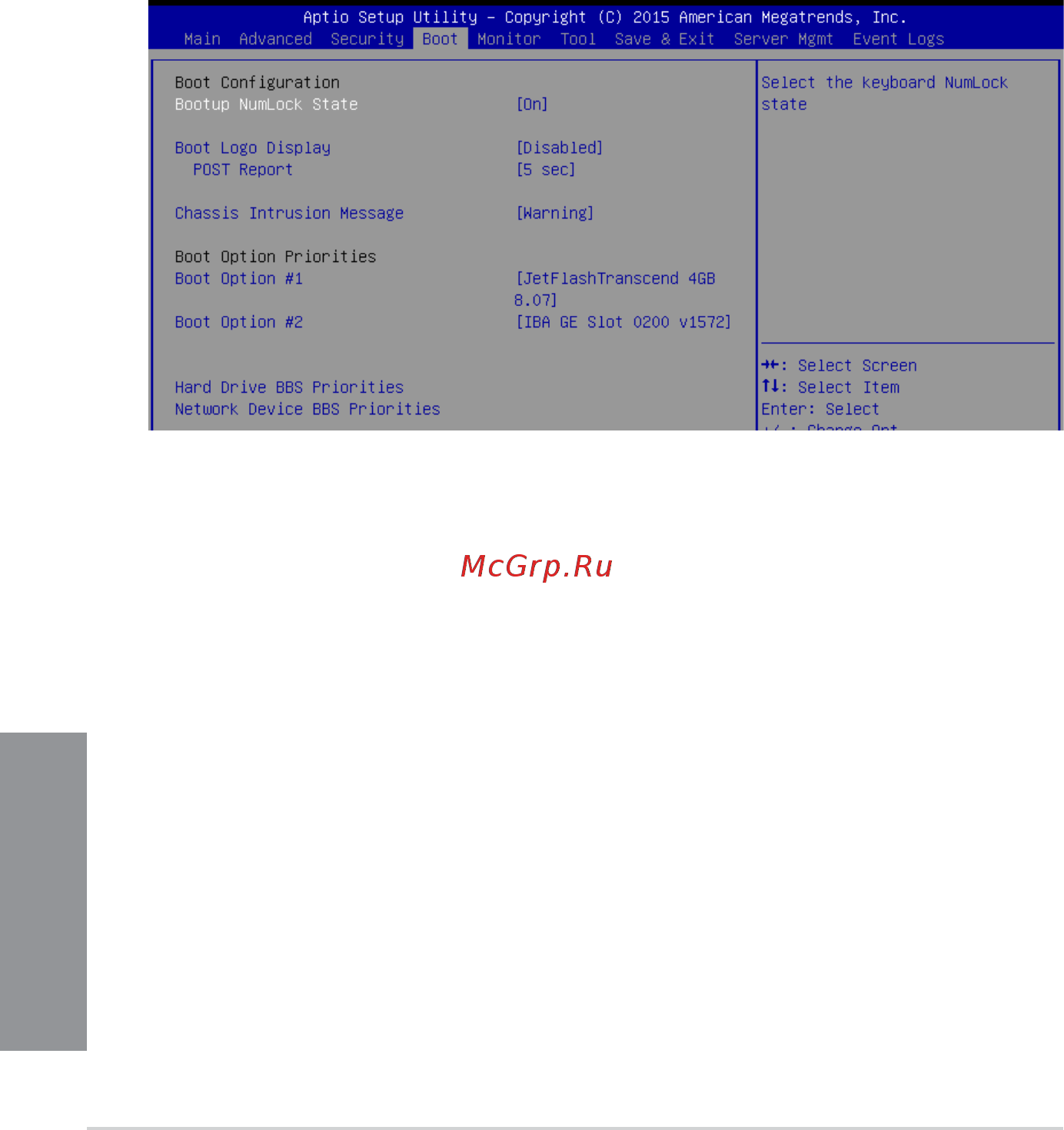

3.6 Boot Menu
The Boot menu items allow you to change the system boot options.
Bootup NumLock State [On]
Allowsyoutoselectthepower-onstatefortheNumLock.
Congurationoptions:[On][Off]
Boot Logo Display [Disabled]
Allows you to enable or disable the full screen logo display feature.
[Auto] AutoadjustmentforWindowsrequirements.
[FullScreen] Maximizethebootlogosize.
[Disabled] HidethelogoduringPOST.
POST Report [5 sec]
Allows you to set the desired POST Report waiting time from 1 to 10 seconds.
Congurationoptions:[1sec]–[10sec][UntilPressESC]
Chassis Intrusion Message [Warning]
Allows you to set an action when chassis intrusion has occured.
[Warning] Warningbeepandpauseatintrusionmessagefor3seconds.
[Halt] Haltatintrusionmessage.
Save all Secure Boot variables
Savethesecurebootvariablestoaselectedlesystem.
Platform Key (PK)
Congurationoptions:[SetNewKey][DeleteKey]
Key Exchange Keys / Authorized Signatures / Forbidden Signatures
Congurationoptions:[SetNewKey][DeleteKey][AppendKey]
Authorized TimeStamps
Congurationoptions:[SetNewKey][AppendKey]
