Asus P10S-M WS [75/146] Advanced menu

ASUS P10S-M WS Series

3-9

Chapter 3

3.4 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system

devices.

TakecautionwhenchangingthesettingsoftheAdvancedmenuitems.Incorrecteld

values can cause the system to malfunction.

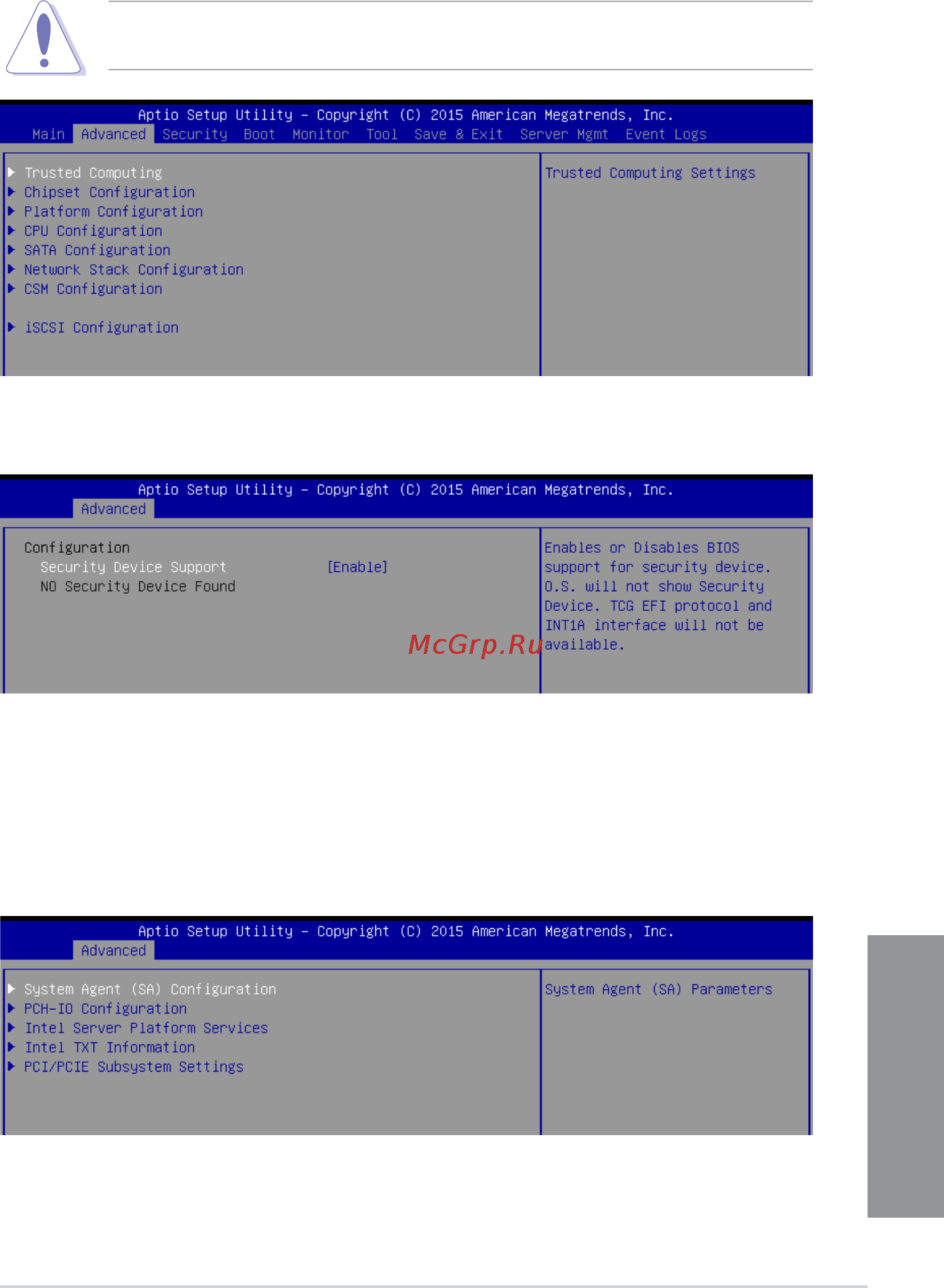

3.4.1 Trusted Computing

3.4.2 Chipset Configuration

Configuration

Security Device Support [Enabled]

Allows you to enable or disable the BIOS support for security device.

Congurationoptions:[Disabled][Enabled]
