Terminal Type [VT-UTF8]

Allows you to set the terminal type.

[VT100] ASCIIcharset.

[VT100+] ExtendsVT100tosupportcolor,functionkeys,etc.

[VT-UTF8] UsesUTF8encodingtomapUnicodecharsonto1ormorebytes.

[ANSI] ExtendedASCIIcharset.

Bits per second [57600]

Selects serial port transmission speed. The speed must be matched on the other side.

Long or noisy lines may require lower speeds.

Congurationoptions:[9600][19200][38400][57600][115200]

Data Bits [8]

Congurationoptions:[7][8]

Parity [None]

Aparitybitcanbesentwiththedatabitstodetectsometransmissionerrors.[Mark]

and[Space]paritydonotallowforerrordetection.

[None] None.

[Even] paritybitis0ifthenumof1’sinthedatabitsiseven.

[Odd] paritybitis0ifnumof1’sinthedatabitsisodd.

[Mark] paritybitisalways1.

[Space] paritybitisalways0.

Stop Bits [1]

Stopbitsindicatetheendofaserialdatapacket.(Astartbitindicatesthebeginning.)

The standard setting is 1 stop bit. Communication with slow devices may require more

than 1 stop bit.

Congurationoptions:[1][2]

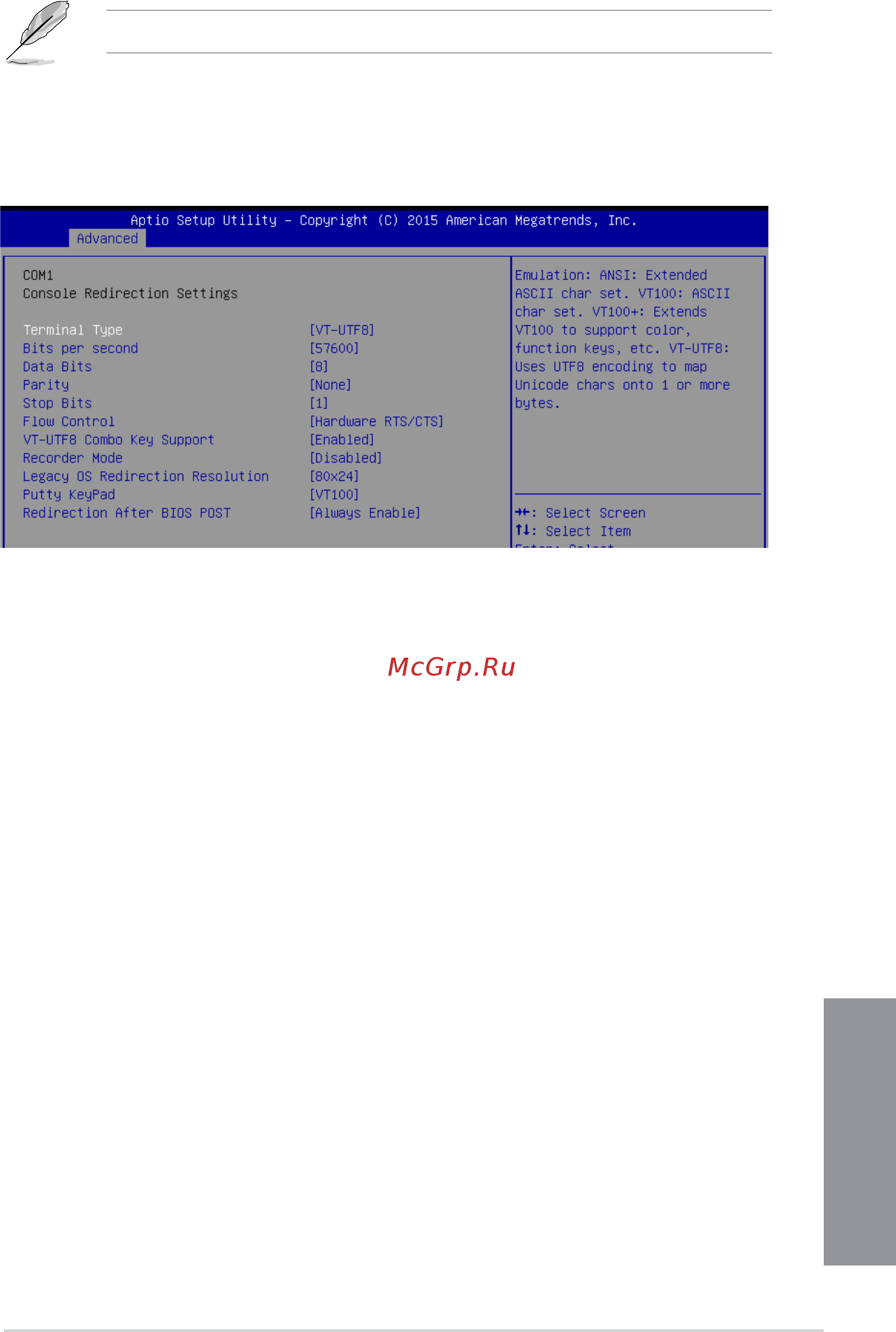

Console Redirection Settings

ThisitembecomescongurableonlywhenyouenabletheConsole Redirection item. The

settings specify how the host computer and the remote computer (which the user is using)

will exchange data. Both computers should have the same or compatible settings.

The following item appears only when you set Console Redirection to [Enabled].
