Asus P10S-M WS [113/146] Chapter 4

ASUS P10S-M WS Series

4-3

Chapter 4

8. Follow succeeding screen instructions to continue.

7. When the system nishes loading the RAID driver,

• Replace the motherboard Support DVD with the Windows Server installation disc.

• Remove the USB ash drive.

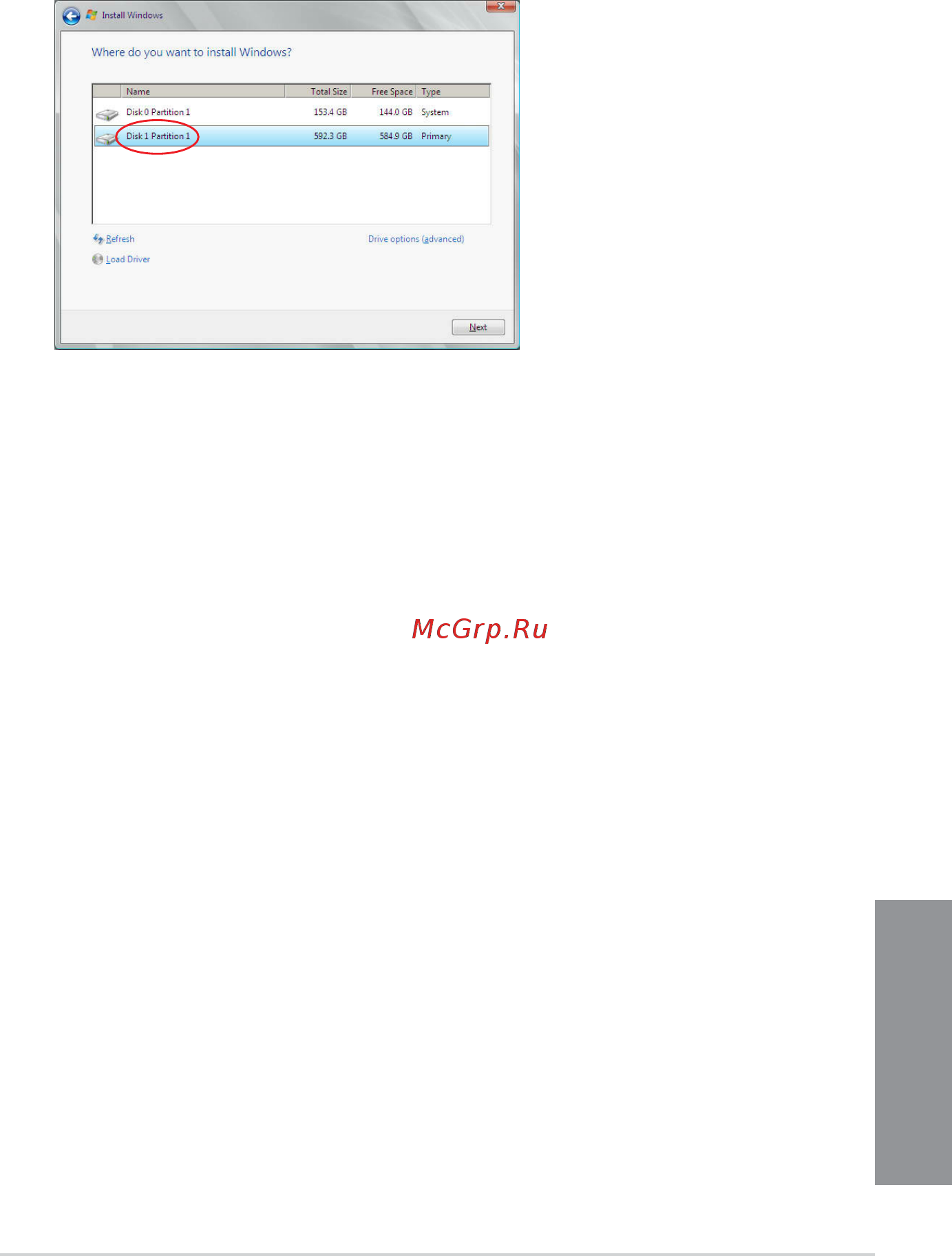

Select the drive to install Windows and click Next.
