Asus P10S-M WS [77/146] Chapter 3

Asus P10S-M WS/IPMI-O [77/146] Chapter 3

ASUS P10S-M WS Series

3-11

Chapter 3

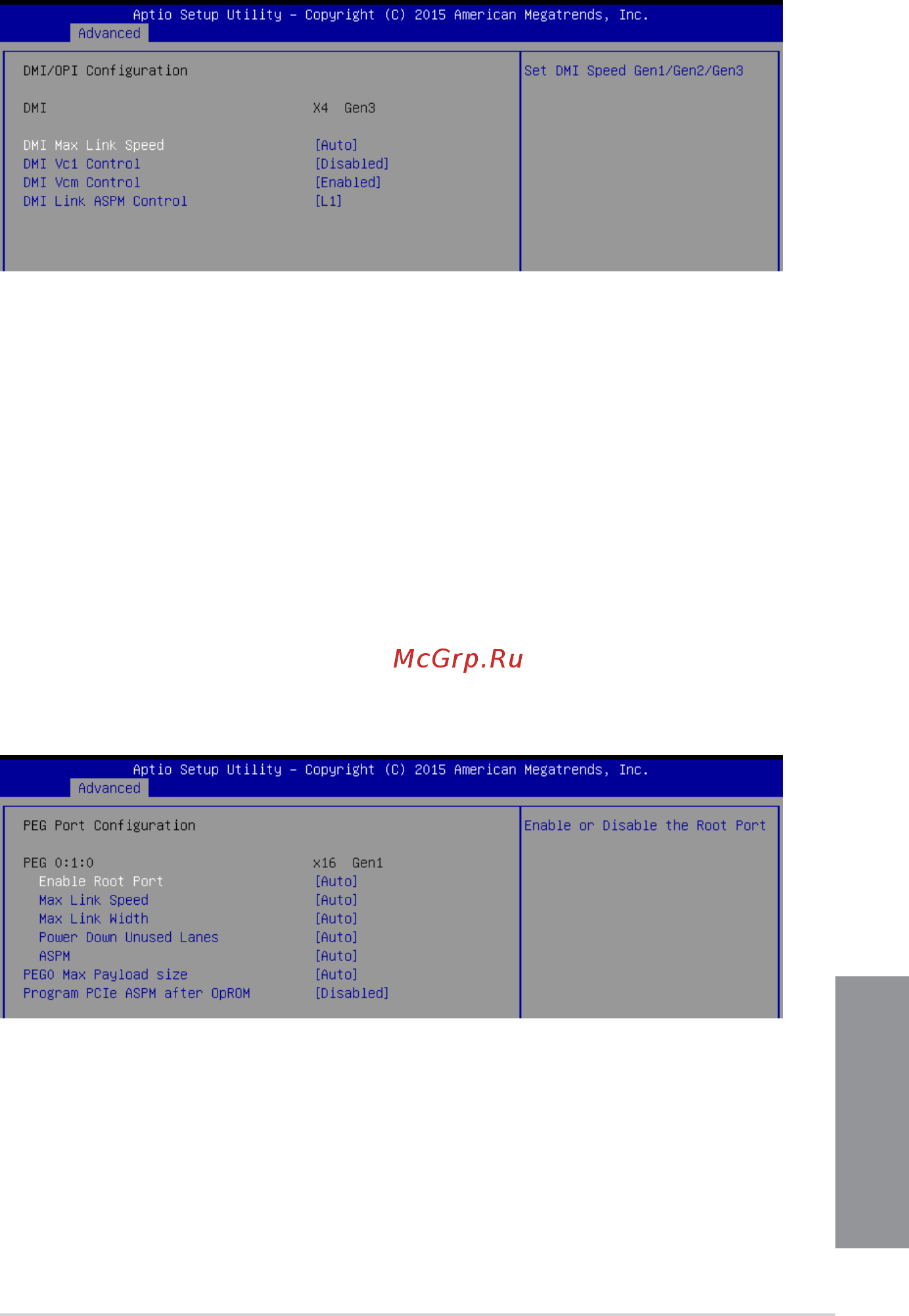

DMI Max Link Speed [Auto]

Allows you to set the DMI speed.

Congurationoptions:[Auto][Gen1][Gen2][Gen3]

DMI Vc1 Control [Disabled]

Allows you to enable or disable DMI Vc1.

Congurationoptions:[Enabled][Disabled]

DMI Vcm Control [Enabled]

Allows you to enable or disable DMI Vcm.

Congurationoptions:[Enabled][Disabled]

DMI Link ASPM Control [L1]

This item is for the control of the Active State Power Management on SA side of the

DMIlink.

Congurationoptions:[Disabled][L1]

DMI/OPI Configuration

PEG Port Configuration

PEG 0:1:0

Enable Root Port [Auto]

Allows you to enable or disable the root port.

Congurationoptions:[Disabled][Enabled][Auto]
