Asus P10S-M WS [50/146] Chapter 2

Asus P10S-M WS/IPMI-O [50/146] Chapter 2

2-2

Chapter 2: Basic Installation

Chapter 2

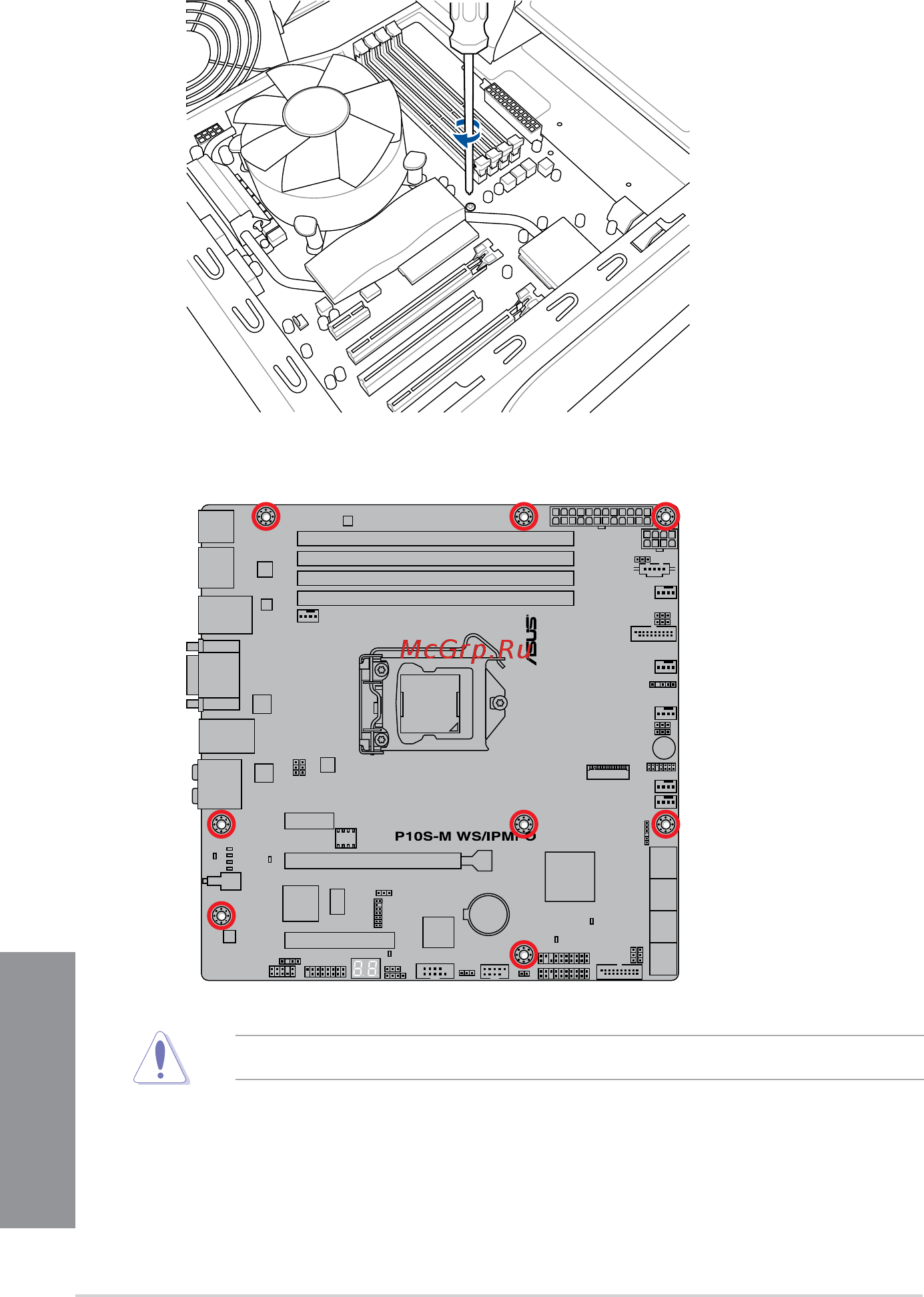

3. Place eight (8) screws into the holes indicated by circles to secure the motherboard to

the chassis.

DO NOT overtighten the screws! Doing so can damage the motherboard.
