Asus P10S-M WS [37/146] Chapter 1

ASUS P10S-M WS Series

1-23

Chapter 1

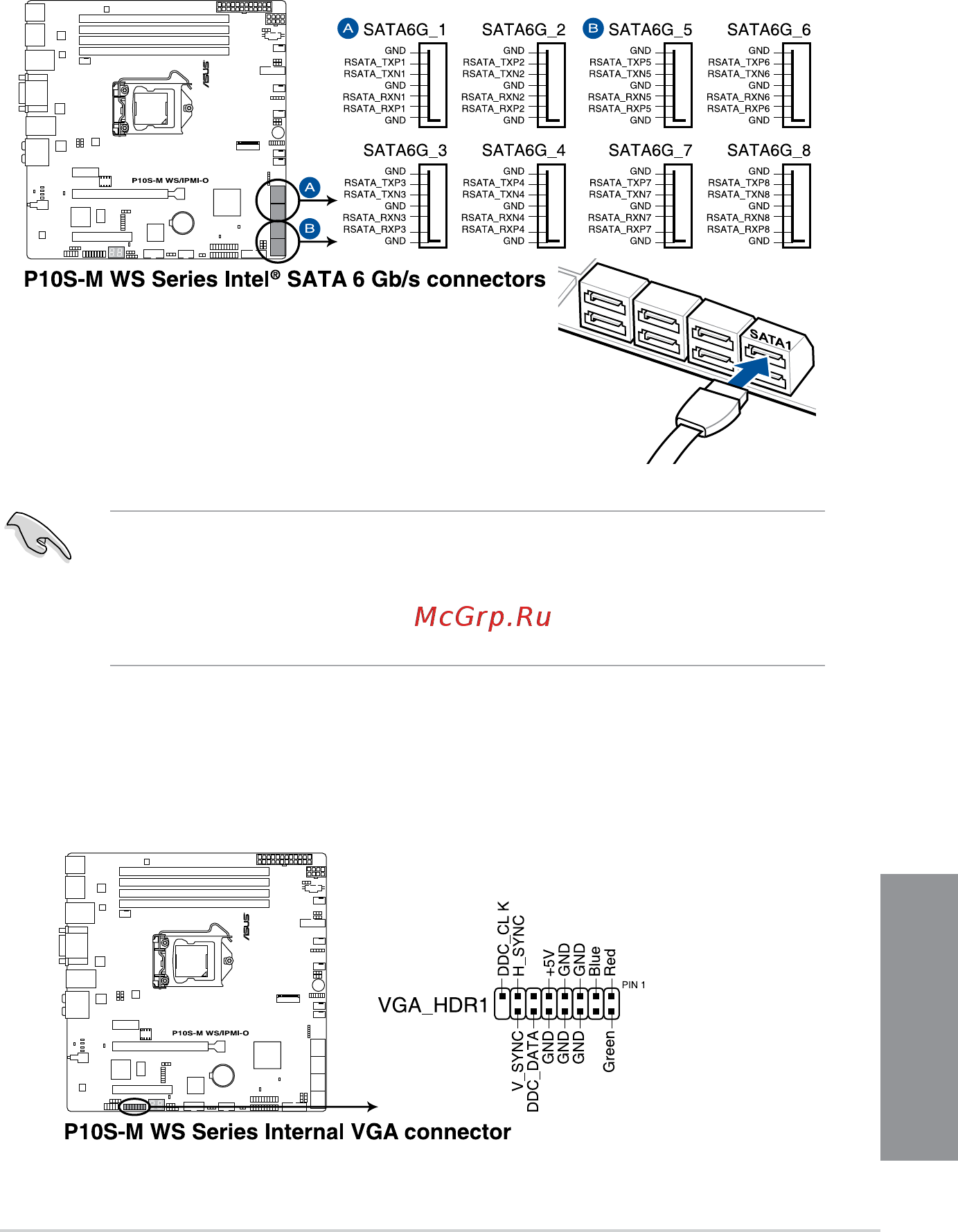

3. Serial ATA 6.0 Gbps connectors (7-pin SATA 6Gbps_1-8 connectors [Gray])

Supported by the Intel

C236 chipset, these connectors are for the Serial ATA signal

cables for Serial ATA hard disk drives that allows up to 6Gb/s of data transfer rate.

If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 10,

or RAID 5 conguration.

• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial

ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID

Mode]. Refer to section 5.1.3 Setting the RAID mode in BIOS for details.

• Before creating a RAID set, refer to the manual bundled in the motherboard support

DVD.

4. VGA connector (16-1 pin VGA_HDR1) (for P10S-M WS/IPMI-O only)

This connector supports the VGA High Dynamic-Range interface.
