Asus P10S-M WS [138/146] Preferences

5-16

Chapter 5: RAID Congurations

Chapter 5

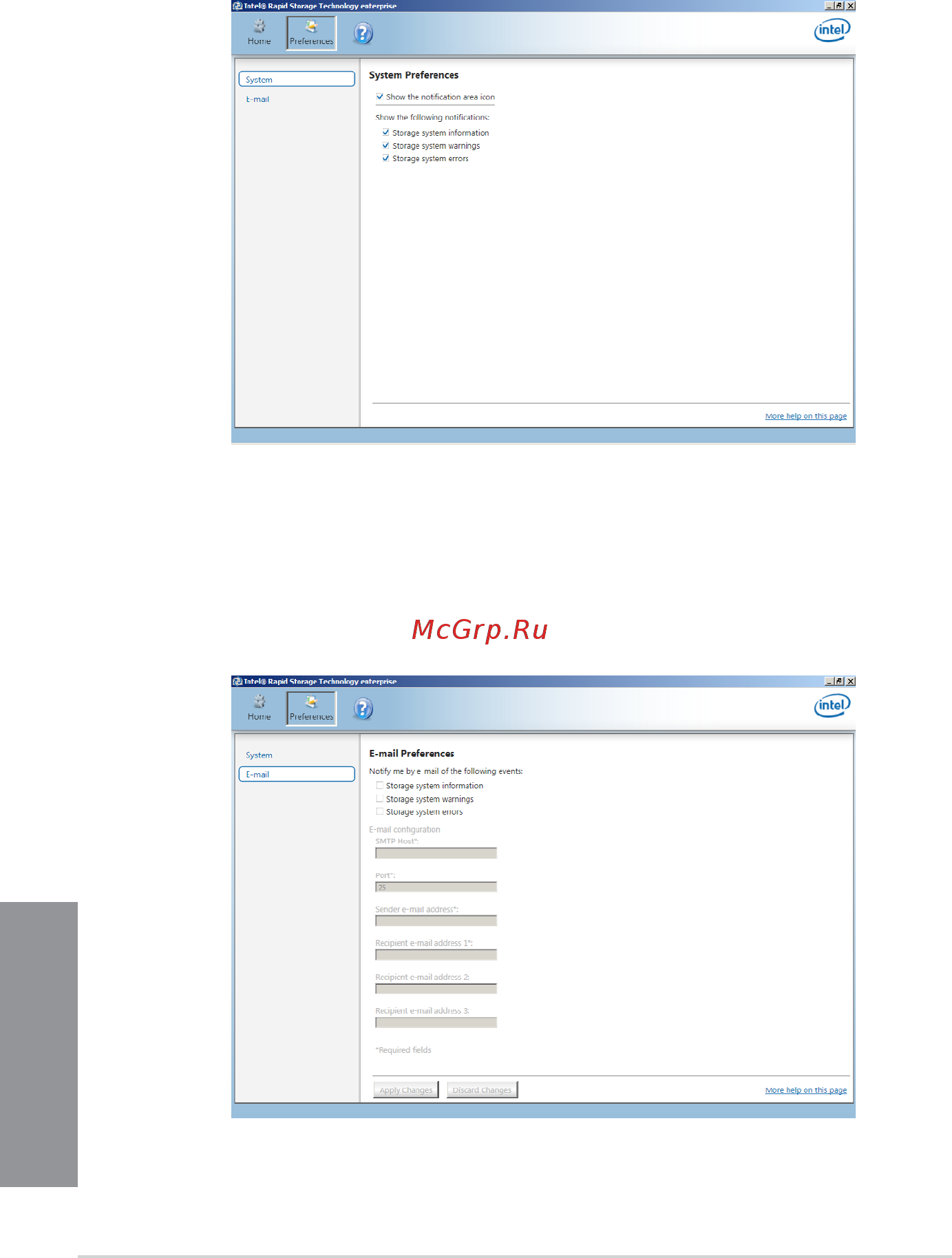

5.3.4 Preferences

System Preferences

Allow you to set to show the notication area icon and show system information, warning, or

errors here.

E-mail Preferences

Allow you to set to sent e-mail of the following events:

• Storage system information

• Storage system warnings

• Storage system errors
