Chapter 4: Software Support

Chapter 4

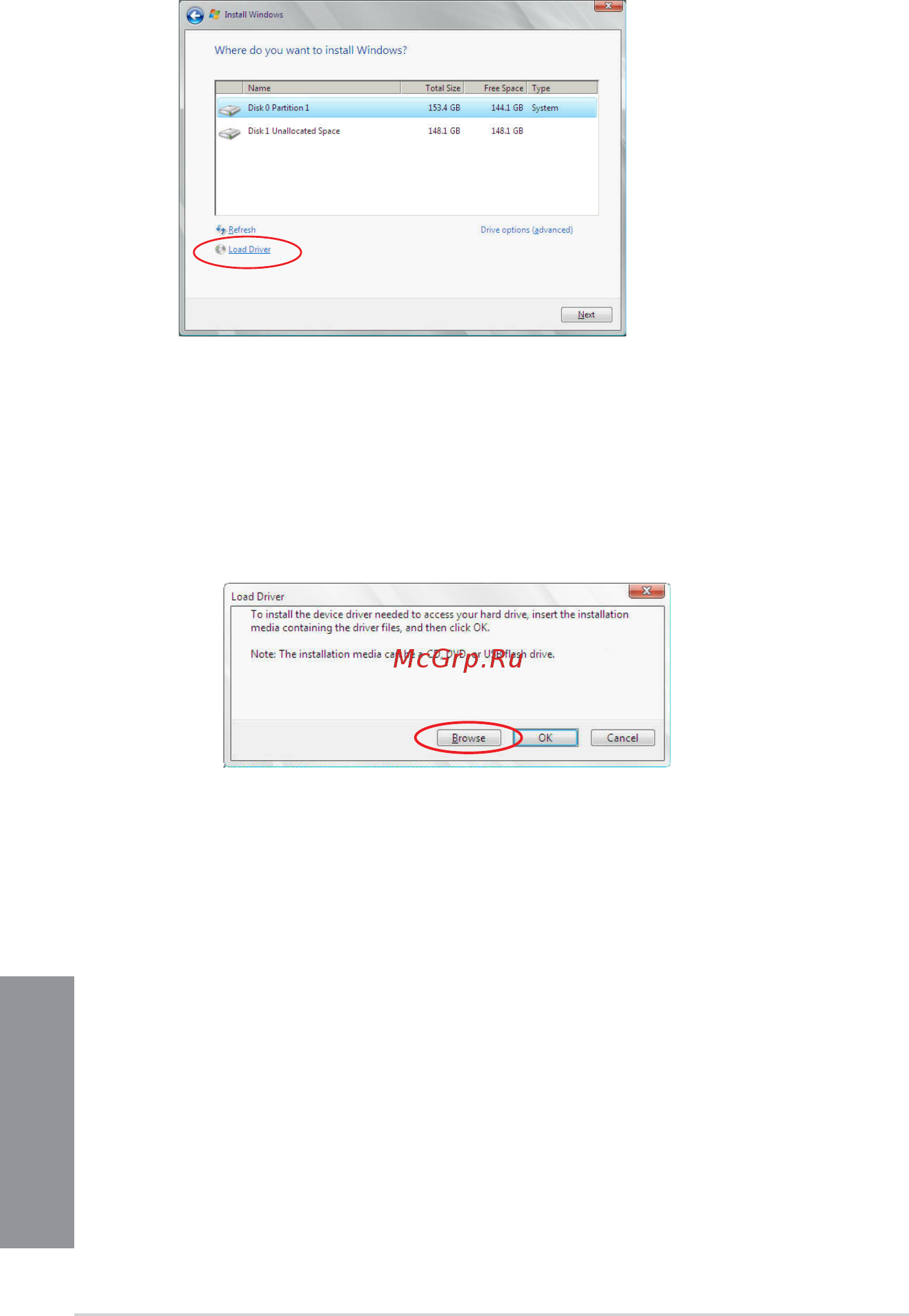

3. Click Load Driver.

4. A message appears reminding you to insert the installation media containing the driver

of the RAID controller driver (the installation media can be a CD, DVD, or USB ash

drive).

• If you have only one optical drive installed in your system, eject the Windows OS

installation disc and replace with the motherboard Support DVD into the optical

drive.

• Or you may connect a USB ash drive containing the RAID controller driver.

Click Browse to continue.

5. Locate the driver in the corresponding folder of the Support DVD or USB ash drive

and then click OK to continue.

6. Select the RAID controller driver you need from the list and click Next.
