Nec NC3200S [15/70] 3 5 control panel
![Nec NC3200S [15/70] 3 5 control panel](/views2/1375701/page15/bgf.png)
15
1. What’s in the Box? and the Names of the Projector Parts

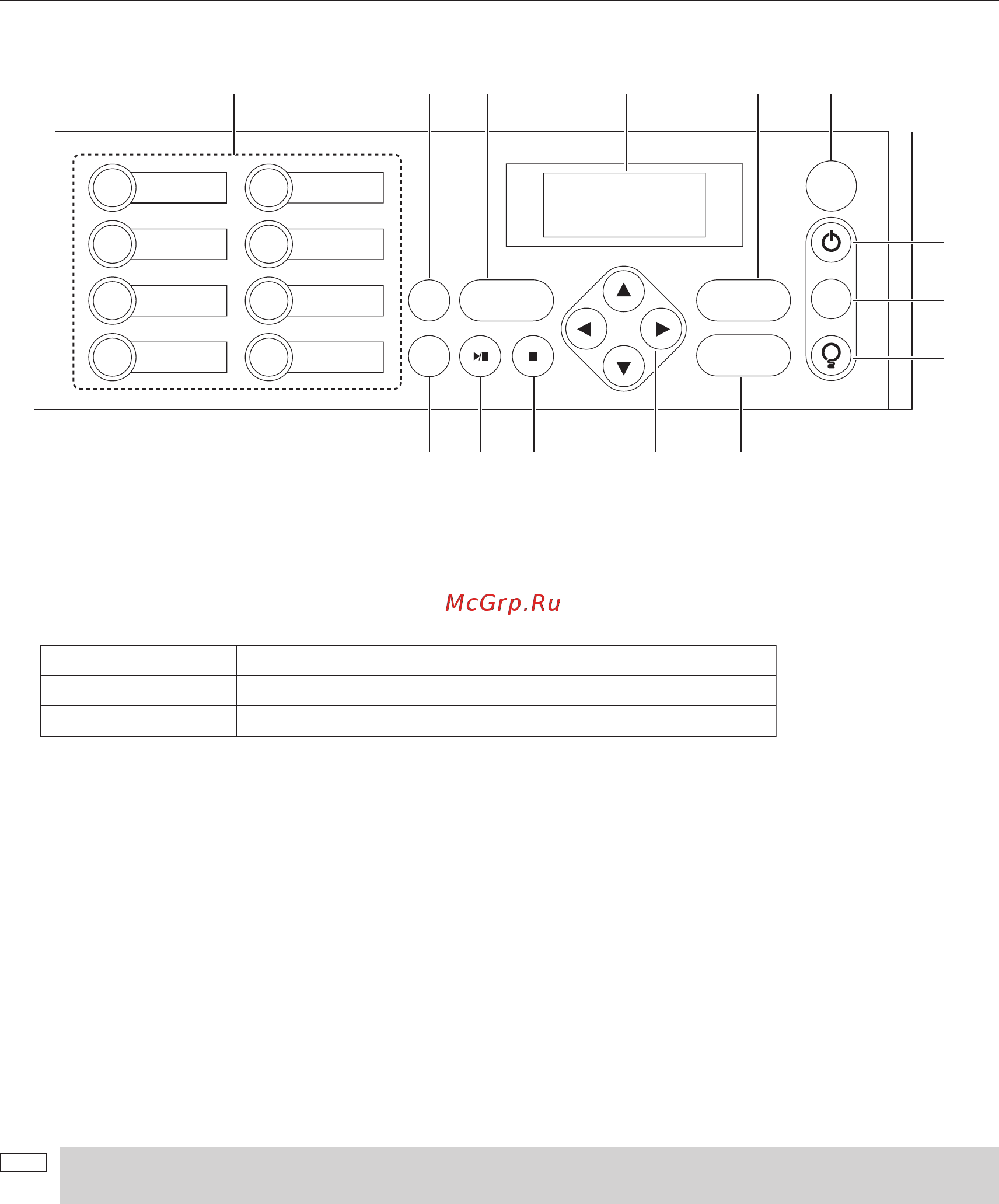

1-3-5. Control panel
1
2
3
4
5
LAMP MENU ENTER
DOUSER
KEY
LOCK
EXIT
IMB
6
7
8
1 2
10 11 12 1413
3 5 6
7
8
9
4
1. Button <1> to <8>
Press the button <1> to <8> to select a title (input signal) assigned to each button.
Up to 100 titles (input signals) can be registered to this projector, and any 8 titles from them can be assigned to the button
<1> to <8>.
Indicators on the left of each button show their assigned title or selection status.
Lit white
Lit green
Off
A title is assigned to the button
The title is being selected
No title is assigned to the button
2. LAMP button
Press this button to display the lamp adjustment menu. (See page 27)
3. MENU button
Press this button to display the menu for various settings and adjustments. (See page 36)
4. LCD screen
The LCD screen displays menus and setting values for the projector operations.
5. ENTER button
Press this button to select the menu item.
6. KEY LOCK button
Press this button to lock (KEY LOCK) the buttons on the control panel. Buttons on the control panel do not function while
KEY LOCK is on.
Pressing the KEY LOCK button for one second or longer while KEY LOCK is off locks the buttons.
Pressing the KEY LOCK button for one second or longer while KEY LOCK is on unlocks the buttons. (See page 28)
NOTE
KEY LOCK becomes automatically on if no control panel operation takes place in the standby state for 30 seconds
by default. (See page 28)
