37
4. Using Menus

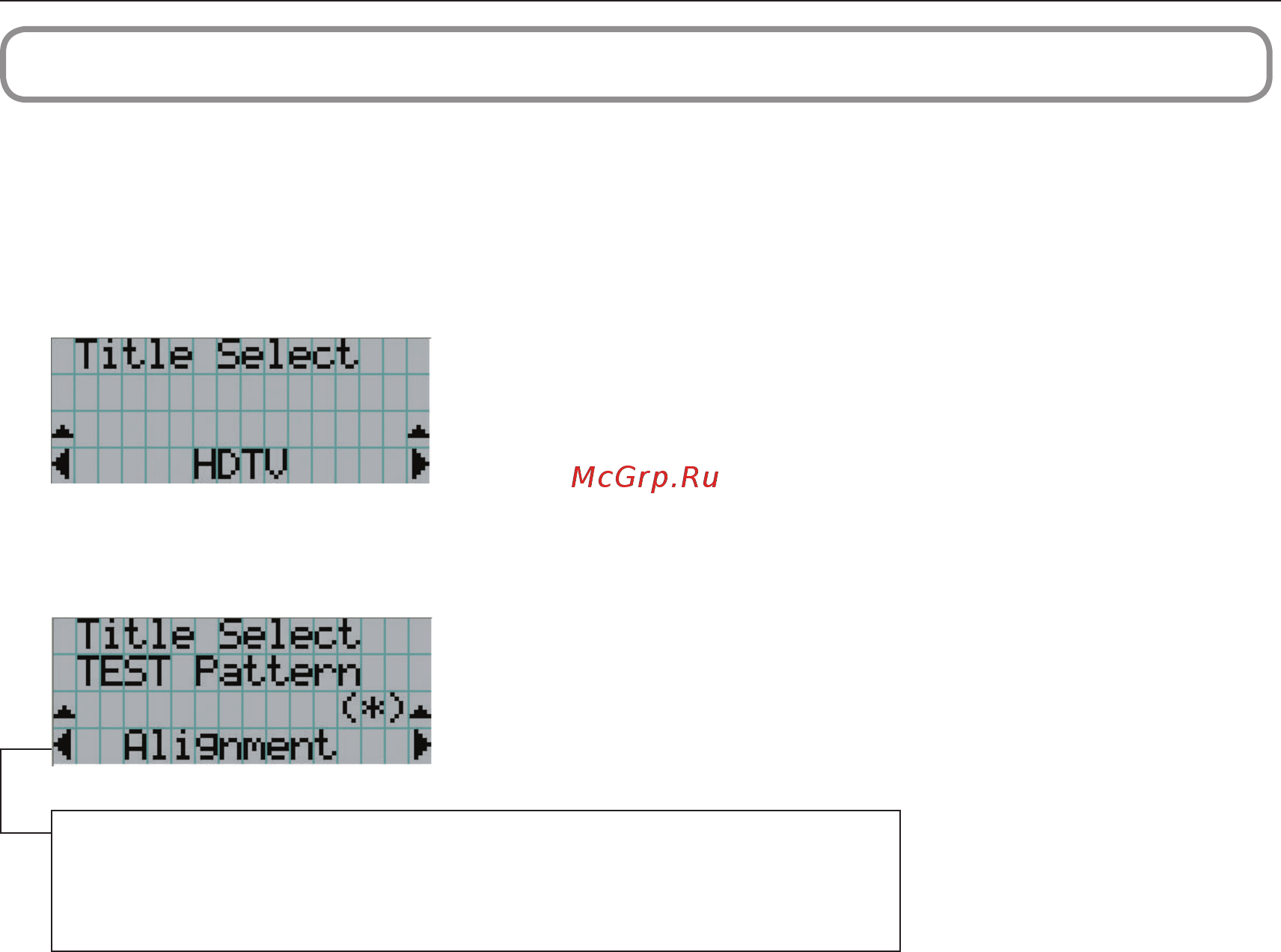

4-3. Title Select
4-3-1. Title select (Title Memory)
Selects the title of the signal to be projected.
You can register up to 100 titles. You can also assign registered titles to the preset buttons (<1> to <8> buttons) on the projector’s
control panel and call them up directly using those buttons.
Request your dealer/distributor for details on registering and changing titles.
← Displays the currently selected item with asterisk (*).
← Selects the title to be projected.
4-3-2. Test Pattern
Selects the test pattern to be projected.
OFF, Alignment, Convergence, H-Ramp, RGB-Black, RGB-Blue,
RGB-Green, RGB-Red, RGB-White, Y-Color Bars, YCbCr-Blue,
YCbCr-Green, YCbCr-Red, YCbCr-White, RGB-CROSS, RGB-50%-White
← Displays the currently selected item with asterisk (*).
← Selects the test pattern to be projected.
