33
4. Using Menus
4-1-2. Operating menus
Preparation: Turn your projector on. (See page 21)
1

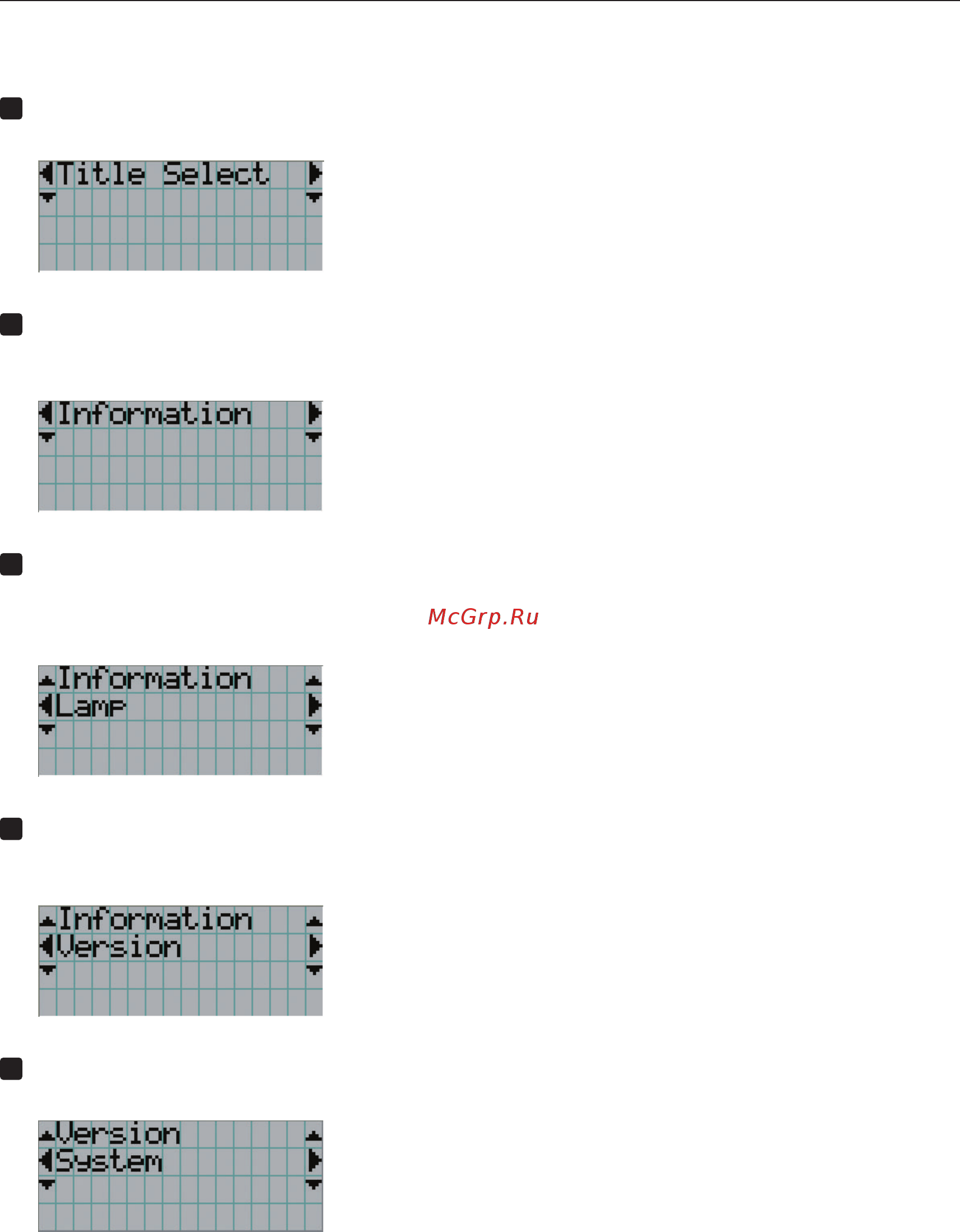

Press the MENU button on the control panel of your projector.
The menu is displayed in the LCD screen.
2
Press the LEFT/RIGHT buttons to display “Information.”
At each press of the LEFT/RIGHT buttons, the display will cycle as “Title Select” ←→ “Configuration” ←→ “(Title
Setup)” ←→ “Information.”
3
Press the DOWN button.
The submenu “Lamp” of “Information” is displayed.
The menu item can be selected by pressing the ENTER button instead of the DOWN button
To return to the previous state, press the UP button, or the EXIT button.
4
Press the LEFT/RIGHT button to select the submenu “Version.”
At each press of the LEFT/RIGHT button, the display will cycle as “Lamp” ←→ “Preset Button” ←→ “Usage” ←→
“Error Code” ←→ “Version” ←→ “IP Address” ←→ “Setup Date” ←→ “Option Status.”
5
Press the DOWN button.
The submenu “System” another rank lower than “Version” is displayed.
