48
5. Maintenance of Your Projector
3

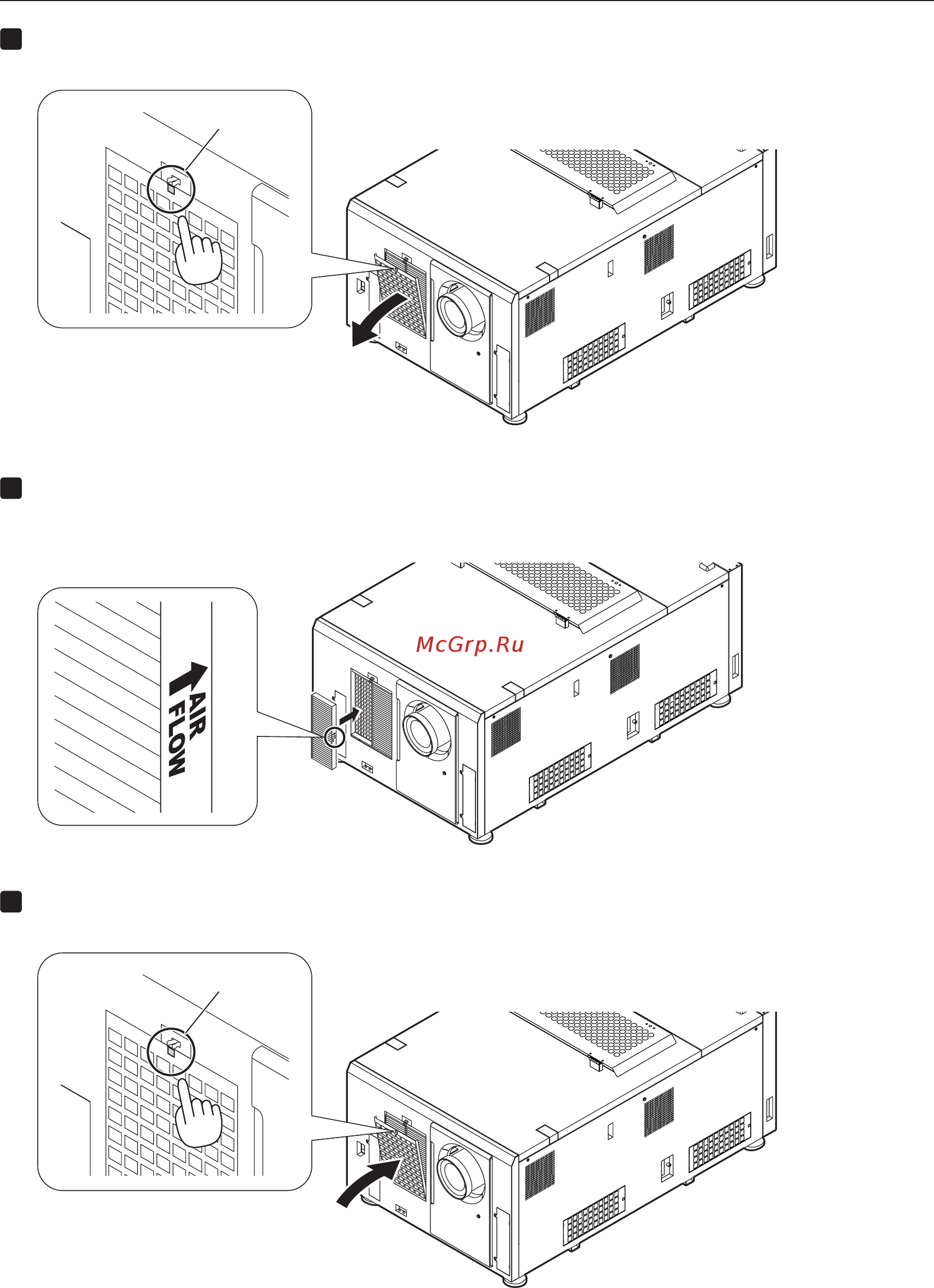

Remove the filter cover.
Push the latch until it clicks to unlock the filter cover.
Latch
4
Replace with new air filters.
Look for an arrow indicating the installation direction on the side of the air filter. Place the filter so that the arrow is
pointing down at the projector.
5
Mount the filter cover.
Align two fasteners on the filter cover to the holes on the projector, and push in until the latch clicks.
Latch
