35
4. Using Menus
4-1-3. How to enter alphanumeric characters
Alphanumeric characters are entered for items, such as the title of input signal.

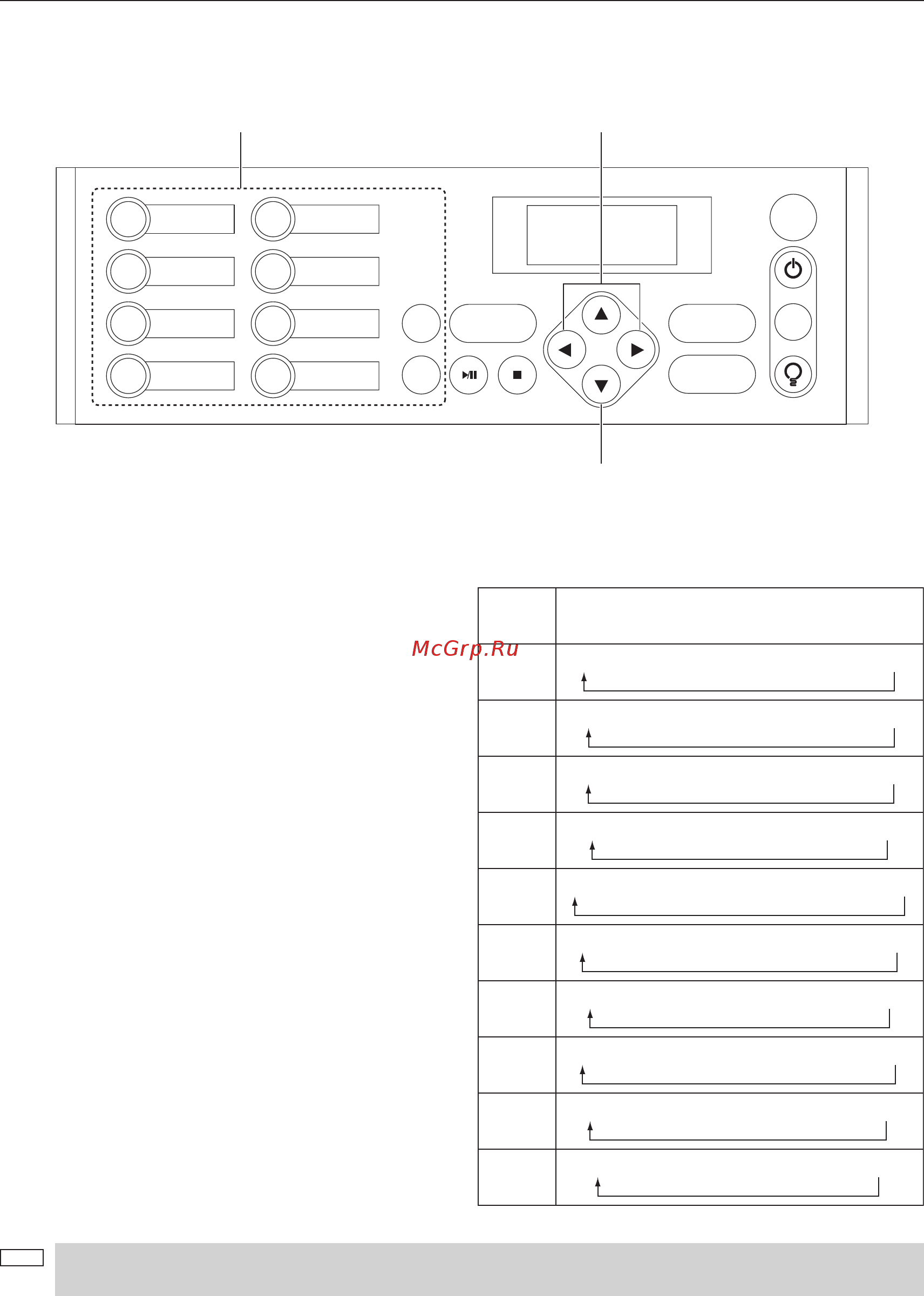

Characters can be entered by pressing numeric buttons on the control panel on this projector.
1
2
3
4
5
LAMP MENU ENTER
DOUSER
KEY
LOCK
EXIT
IMB
6
7
8
Enter characters
Delete entered characters
Move right and left
Characters can be entered by pressing each button as shown in the following table.
• To delete a character during entry, press the DOWN button.
[Example of Entry]
To enter “XGA” for example, use the following procedure:
(1) Press the “8” button three times.
V
→ W → X
(2) Press the RIGHT button.
(3) Press the “3” button.
XG
(4) Press the RIGHT button.
(5) Press the “1” button.
XGA
Button
1
2
3
4
5
6
7
8
LAMP
IMB
Entered character
A → B → C → 1 → a → b → c → ! →
D → E → F → 2 → d → e → f → " →
G → H → I → 3 → g → h → i → # →
J → K → L → 4 → j → k → l → $ →
M → N → O → 5 → m → n → o → % →
P → Q → R → 6 → p → q → r → & →
S → T → U → 7 → s → t → u → ’ →
V → W → X → 8 → v → w → x → ( →
Y → Z → / → 9 → y → z → ? → ) →
* → , → . → 0 → ; → : → + → - →
NOTE
To input characters using the remote control, only numbers can be entered with [password] and the security
[keyword].
