8023 | V5.0_EN (11/2015)
Technical changes reserved
Trotec Laser GmbH
Page 21 of 61
INPUT POWER
220-240VAC 50HZ
INPUT POWER
100-120VAC 60HZ
3.7 Connections
Perform the connections exactly in the order described, otherwise electrostatic
charging can damage your computer and/or the electronics of the laser
system.
3.7.1 Connecting the Mains

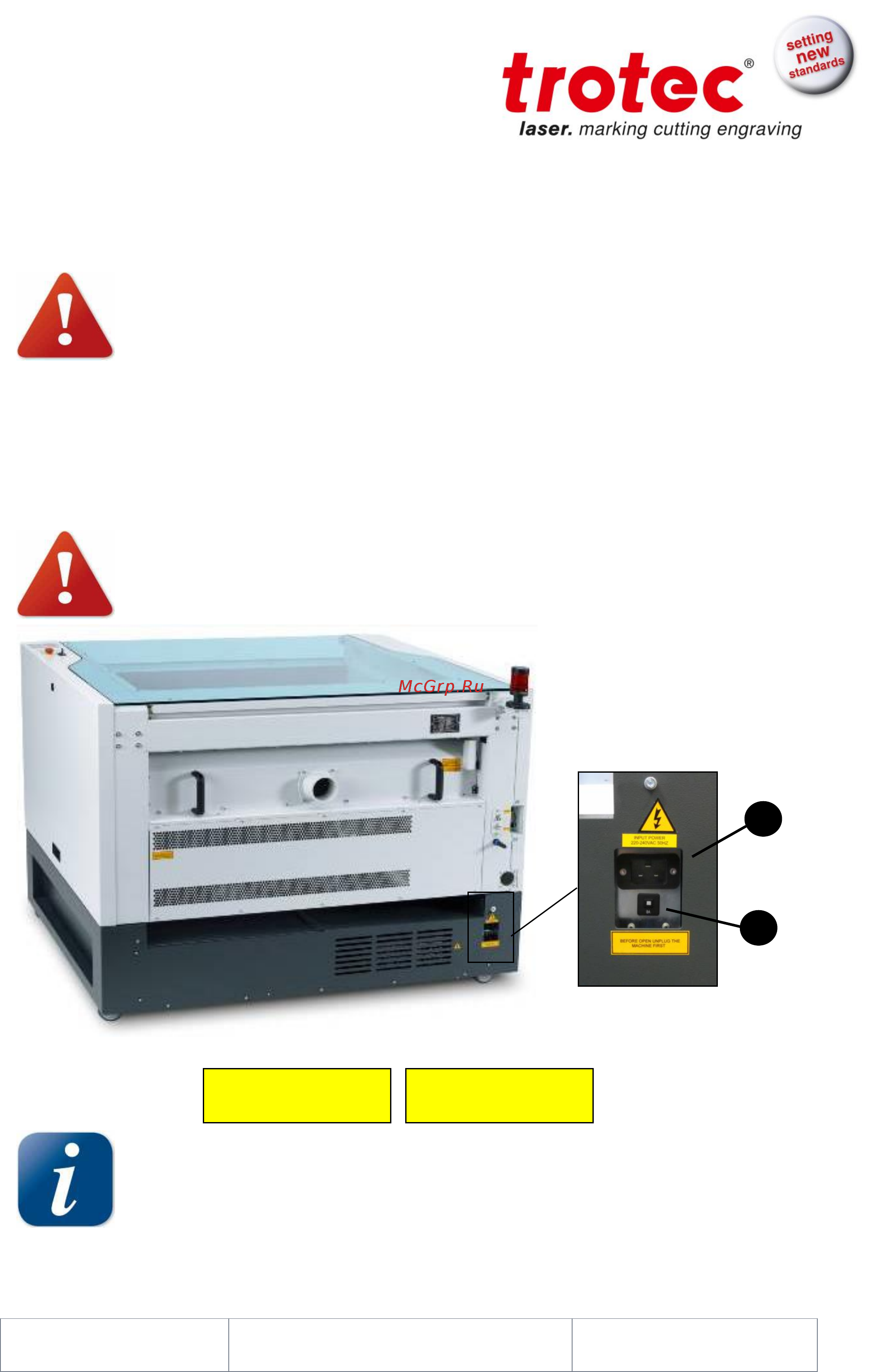

Connect one end of the mains cable with the connection socket (1) at the rear side of the
laser device (see Figure below) and the other end with a protected power outlet.
Mains voltage and operating voltage must correspond (AC 230 V/50 Hz or AC
115 V/60 Hz) - see information label beside the connection socket.
Under no circumstances switch on the device if the voltages do not
correspond.
The main fuse (2) is located below the connection socket and is accessible
from the exterior.
2
1
