5.2.2 CLEANING THE MIRRORS #2, #3 AND #4

There are two mirrors in the operating area of the laser, which may have to be

cleaned if they are soiled. To clean the mirrors, follow the instructions below.

MIRROR #2 and #3

1. The mirrors #2 and #3 are located on the right-hand side of the machine. To be able

to access those mirrors, you must remove the right maintenance panel.

The laser must be switched off before the panel is removed!

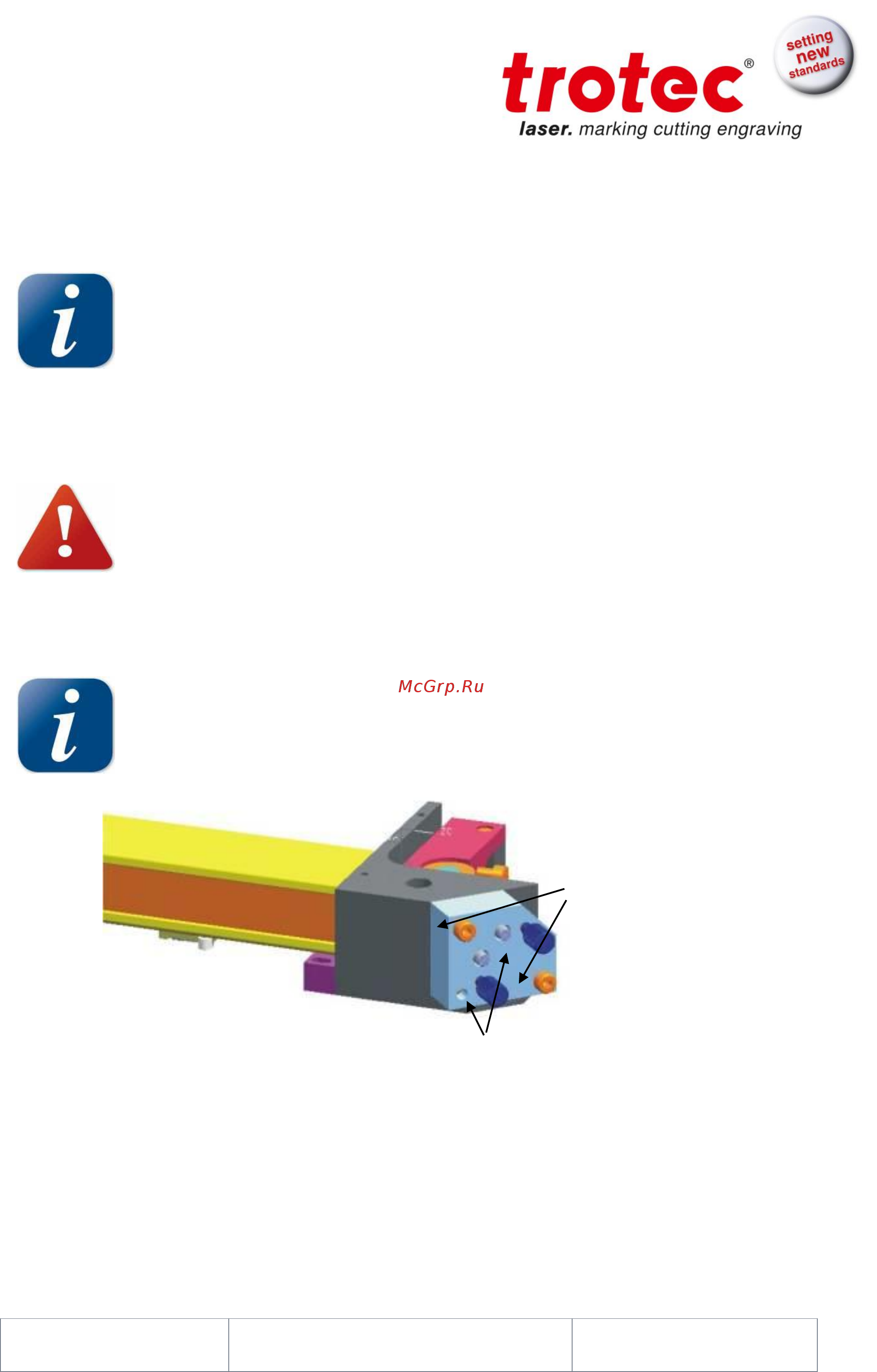

2. The mirrors are attached by means of two Allen screws (1), which are located on the

mirror holder. Open the screws and remove the lens holder together with the mirror. Do not

touch the milled screws while doing this (2).

Make sure that you do not touch the mirror surface with your fingers as this

reduces the mirror's working life significantly.

3. Use a drop of lens cleaning liquid from the accessories box and, while holding the

mirror on an angle, flush the surface of the mirror, to wash away coarse soiling.

4. Put the mirror on a working surface. Put some drops of lens cleaning liquid on the

mirror and leave the liquid take effect for approximately 1 minute.

5. Use a folded piece of lens cleaning tissue soaked with lens cleaning liquid and wipe

gently over the mirror only once. Use a fresh lens cleaning tissue soaked with lens cleaning

liquid each time and again wipe over the mirror only once. Then wipe the mirror dry with a
