Trotec Speedy 500 [38/61] First marking tests
![Trotec Speedy 500 [38/61] First marking tests](/views2/1404710/page38/bg26.png)
8023 | V5.0_EN (11/2015)
Technical changes reserved
Trotec Laser GmbH
Page 38 of 61
4.7 First marking Tests
The following steps describe, how to successfully mark a first pattern. Please follow the
individual steps:

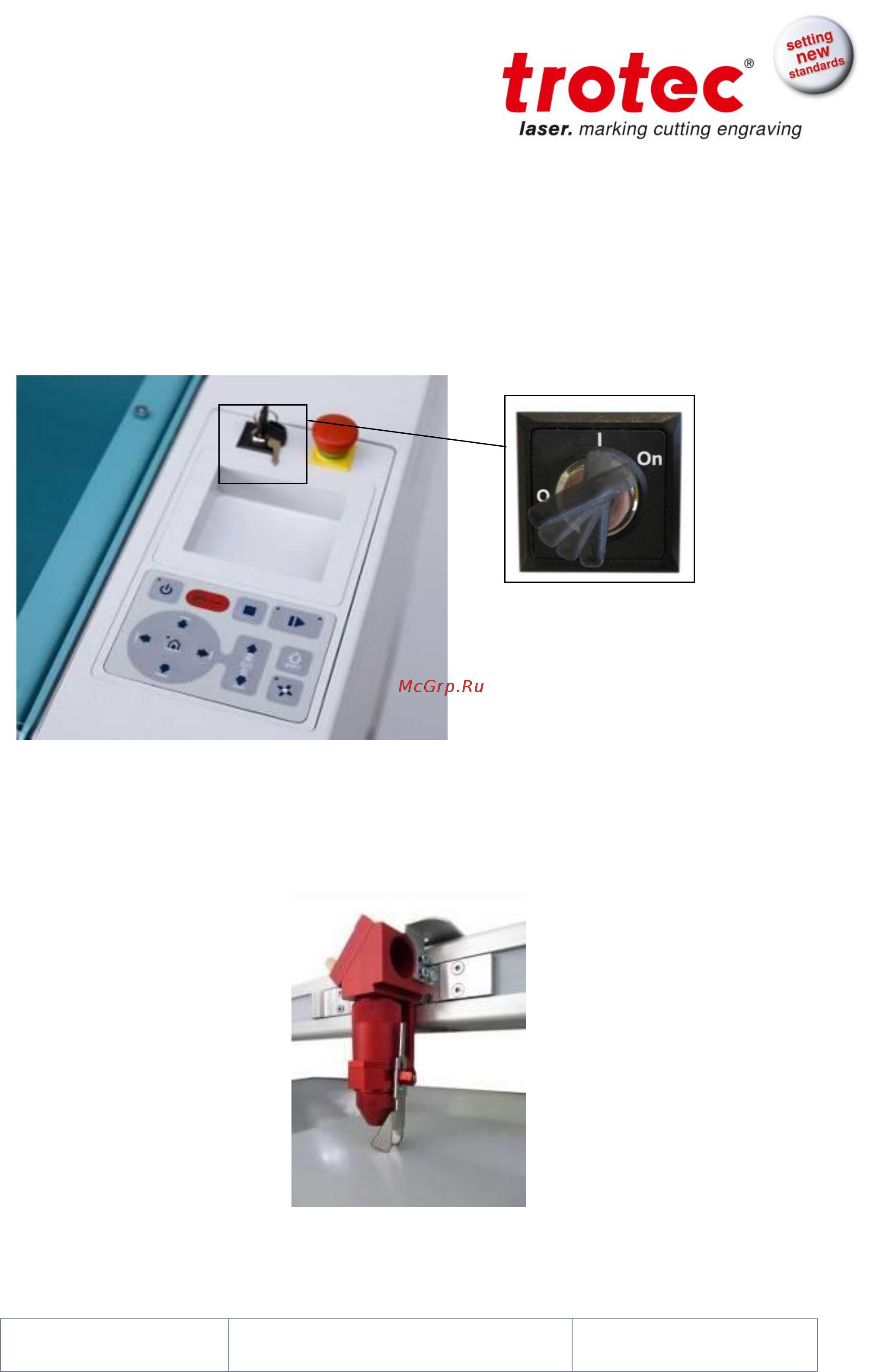

1. First switch on the computer, then the Laser.
2. Put the object to be engraved into the laser and move into the desired position on the
working table. Usually the object is positioned in the upper left-hand corner. Use the rulers to
determine the dimensions of the object to be engraved.
3. With the positioning keys the lens is positioned over the material to be engraved. You
focus with the help of the focus tool or by auto focus (see page 34 ongoing).
4. Generate a graphic with the help of your graphics software. The size of the graphic
does not matter as the printer driver adjusts it to the work piece automatically if requested.
