4.4 Keypad

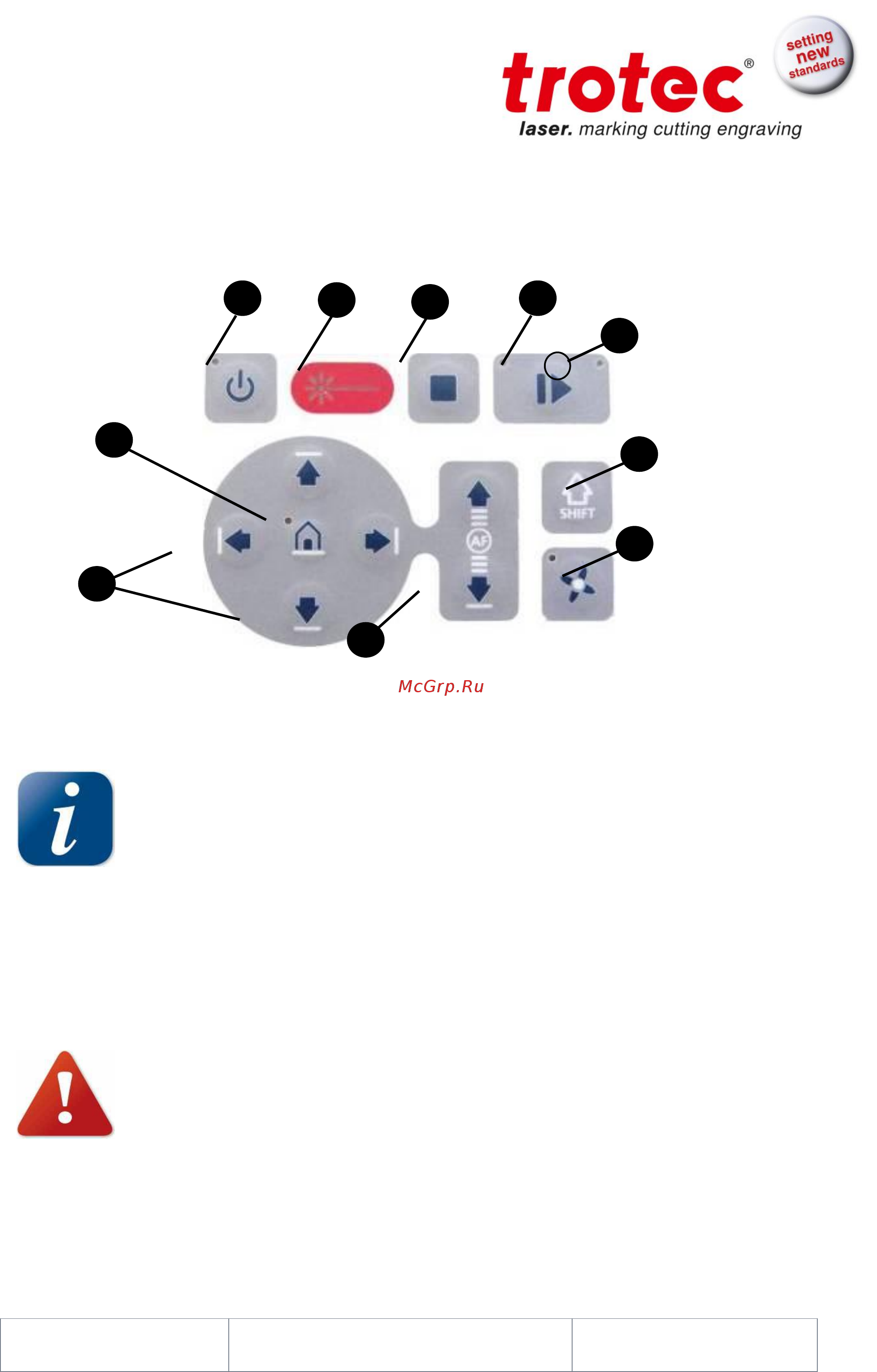

1 POSITIONING KEYS Z
When pressing one of these two keys the working table moves in Z direction
(upwards or downwards).
Use these positioning keys to move the table manually.
When both keys are pressed simultaneously, the material is focused automatically.
Before the autofocus- move is started, the head is moved backward in line with the light
barriers. If the light barrier is broken, e.g. by an air assist nozzle, the upward move will be
suppressed to prevent a collision between the nozzle and the table.
The Autofocus option might not work on transparent materials or materials
which are not flat.
Bear in mind that defects from head crashes (working head hits material or
working table) are NOT warranted.
By pressing the "Shift" key and a Z- positioning key an automatic move to the corresponding
end- positions is performed:
Shift + Down: the table moves down to the lowest possible position
Shift + Up: the table moves up to the autofocus- position.
1
2
3
4
5
6
10
8
9
7
