Trotec Speedy 500 [49/61] Cleaning the optical parts
![Trotec Speedy 500 [49/61] Cleaning the optical parts](/views2/1404710/page49/bg31.png)
8023 | V5.0_EN (11/2015)
Technical changes reserved
Trotec Laser GmbH
Page 49 of 61
5.2 Cleaning the Optical Parts
Trotec recommends to use following cleaning material:
Lens tissues Part number 69249
Lens cleaner Part number 69248
The lens has a durable multi-coating and won't be damaged by correct and careful cleaning.
You should inspect the mirrors and the lens according the maintenance plan. If you discover
a veil of haze or dirt, you must clean them.
Follow the instructions below for the cleaning of optical parts:
5.2.1 CLEANING THE LENS
1. Move the working table to a distance approx. 10 cm under the lens holder.
2. Move the working head into the center of the working surface and put a cloth under
the lens holder (so that the lens is not damaged if it accidentally drops).

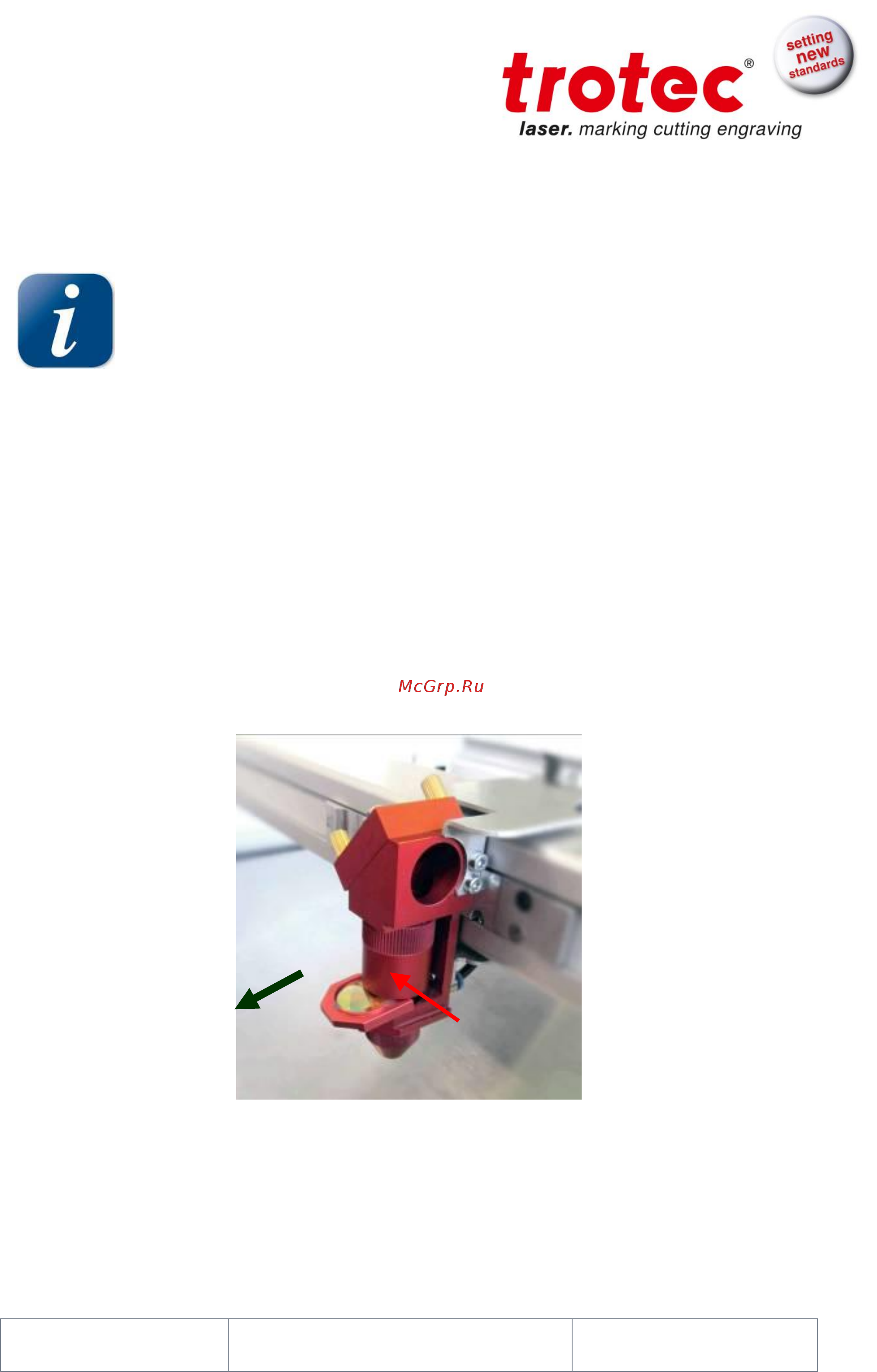

3. Now you can remove the lens by turning the fixing ring and pulling the lens assembly
to the front.
4. Remove the coarse dust as good as possible by blowing air onto the lens surface.
5. Check the surface and if necessary clean the lens with the lens cleaning liquid and
lens tissue.
