4.5 Tables

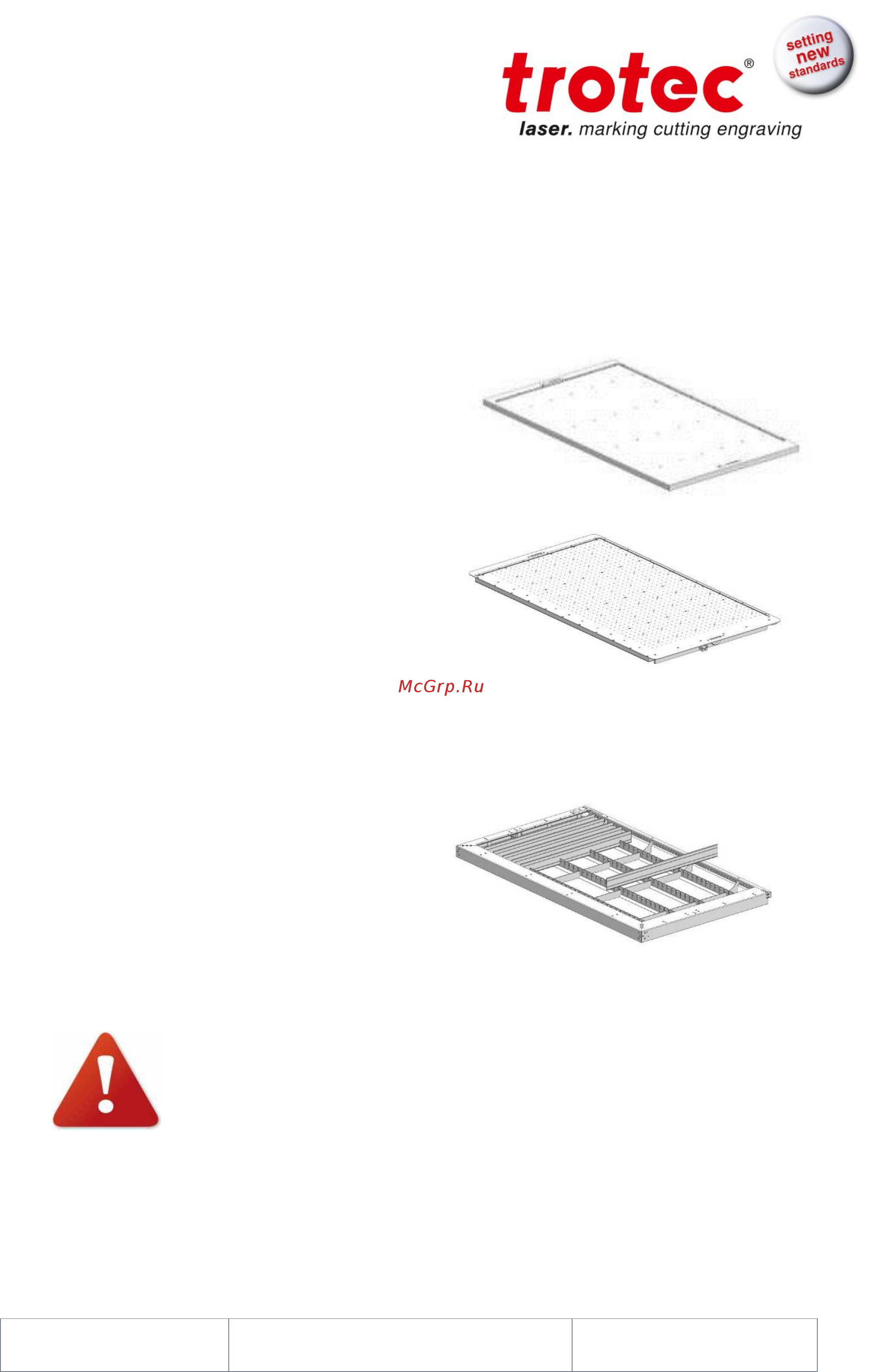

4.5.1 Engraving Table (Standard table)

 The engraving table rests on the base frame

 The engraving table is only for engraving

heavy objects, such as metals, marble,

granite, glass, heavy wood and acrylic parts.

4.5.2 Vacuum Table

 The vacuum table rests on the base

frame.

 The vacuum table is only intended for

engraving and/or cutting thin and

lightweight materials such as films, plastic

laminates, veneers, thin sheetsof wood,

paper, cardboard, and similar.

 The entire surface of the vacuum table must be covered to ensure the maximum

vacuum effect

4.5.3 Cutting Table

 The cutting table rests on the base

frame.

 The entire surface of the vacuum table

must be covered to ensure the maximum

vacuum effect

It is not allowed to place Workpieces into the baseframe without a

Table attachment (e.g. Standard-, Vacuum- or Cutting Table).

This is important so no bending on the frame and impairment of the

exhaust function is possible.
