Trotec Speedy 500 [23/61] Connecting the exhaust system
![Trotec Speedy 500 [23/61] Connecting the exhaust system](/views2/1404710/page23/bg17.png)
8023 | V5.0_EN (11/2015)
Technical changes reserved
Trotec Laser GmbH
Page 23 of 61

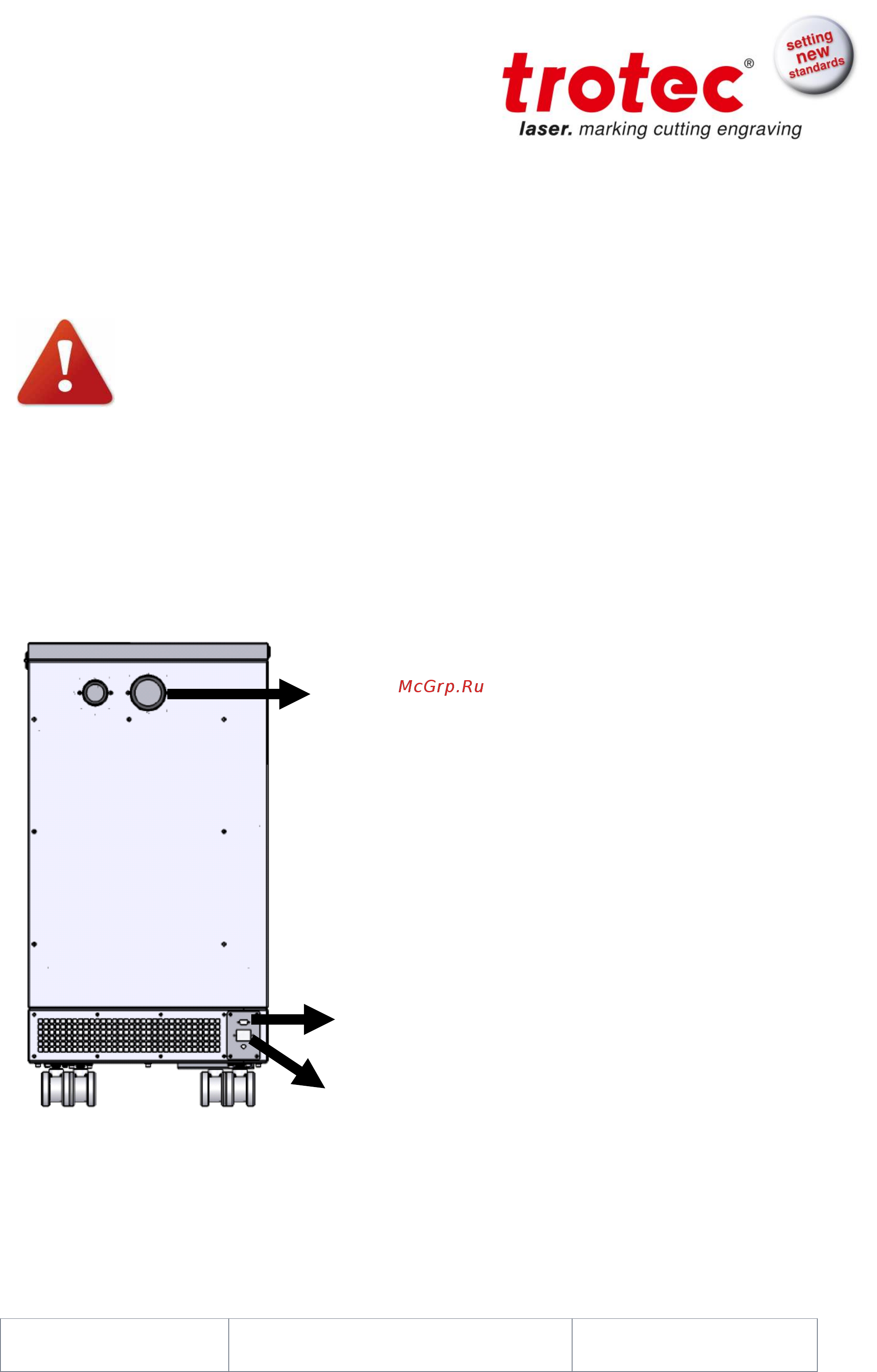

3.7.3 Connecting the Exhaust System
Connect your exhaust system to the mains socket (1).
Make sure that the mains voltage corresponds with the voltage allocated for
the exhaust system.
Plug the ends of the exhaust duct into the allocated connection (2). The position of
the connector depends on the type of exhaust system.
When using the Trotec exhaust system, also connect it with the cable included to the
remote control connector of the laser (3).
Also follow the operation and maintenance instructions in the Operation Manual of the
exhaust system.
Exhaust connection hose to
Laser (2)
Exhaust connection cable to
Laser (3)
Mains cable to mains socket (1)
