4.8 Rotary Engraving Attachment

The rotary engraving option in the printer driver is used in combination of the

rotary engraving attachment, to engrave cylindrical objects.

To compensate for the different diameters of different objects, the image

must be adjusted. This is performed automatically by the engraving driver, by

selecting the rotary engraving option and entering the diameter of the object

to be engraved.

Never plug or unplug the rotary engraving attachment while the machine is

turned on. If this is not observed, there insists the danger of irreparable

damage on the electronics.

The rotary engraving attachment is available with cones and with rolls. The rotary with cones

permits engraving of cylindrical objects with a diameter of up to 270 mm, a length of up to

760 mm and maximum weight of 3 kg. The rotary with rolls permits engraving of cylindrical

objects with a diameter of up to 180 mm, a length of up to 960 mm and maximum weight of

10 kg.

To install and set-up the rotary engraving attachment proceed as described as follows:

1. Make sure the engraving or vacuum table is installed.

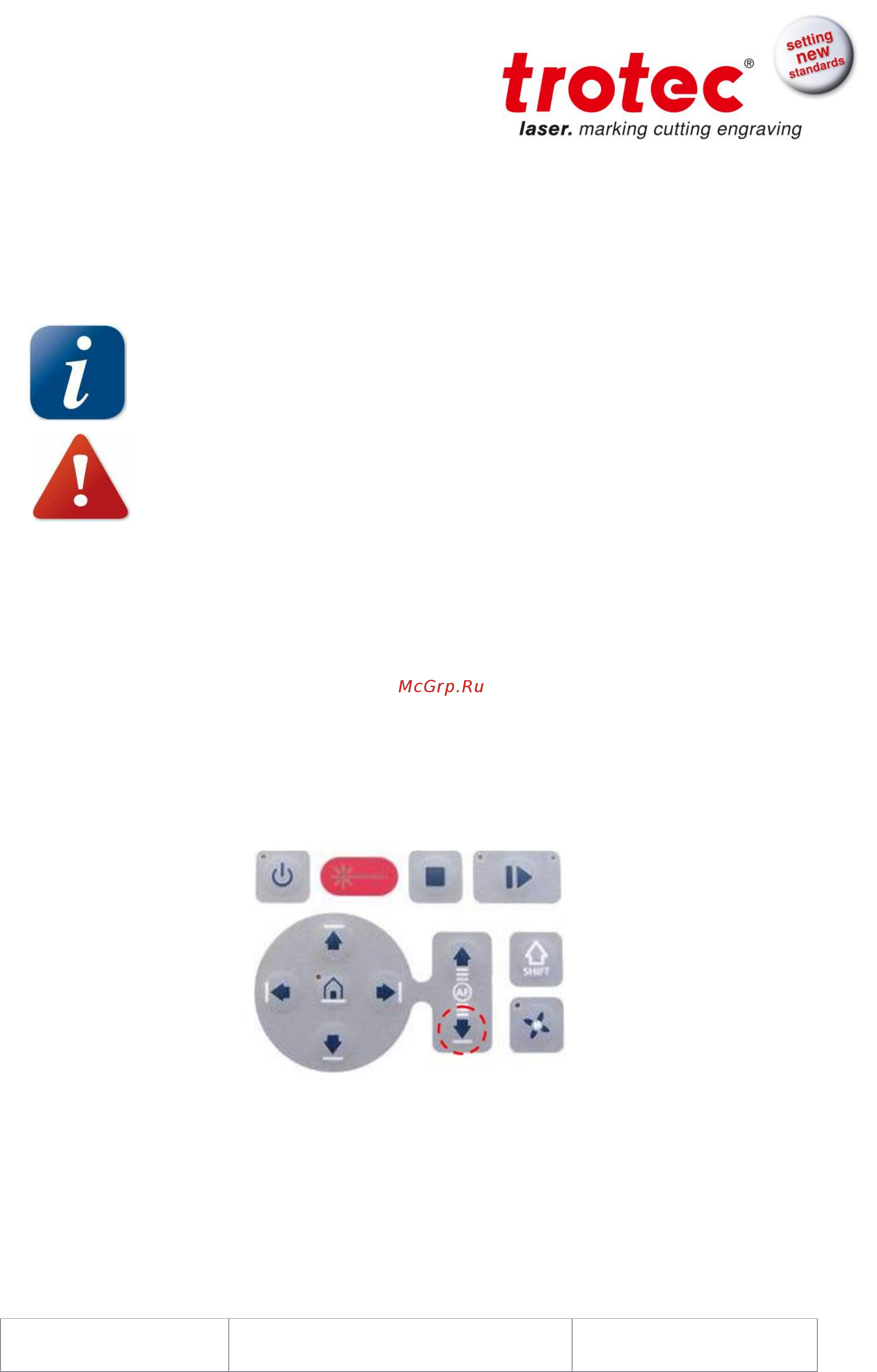

2. Move the working table to the lower position, switch off the laser and open the top lid

and front panel for easier loading.
