new dry lens cleaning tissue. Never use a cleaning tissue twice, as it could carry dust
particles, which can scratch the mirror surface.
6. Examine the mirror and repeat the cleaning process, if necessary.
7. Replace the mirror and fix it again with the two Allen screws.

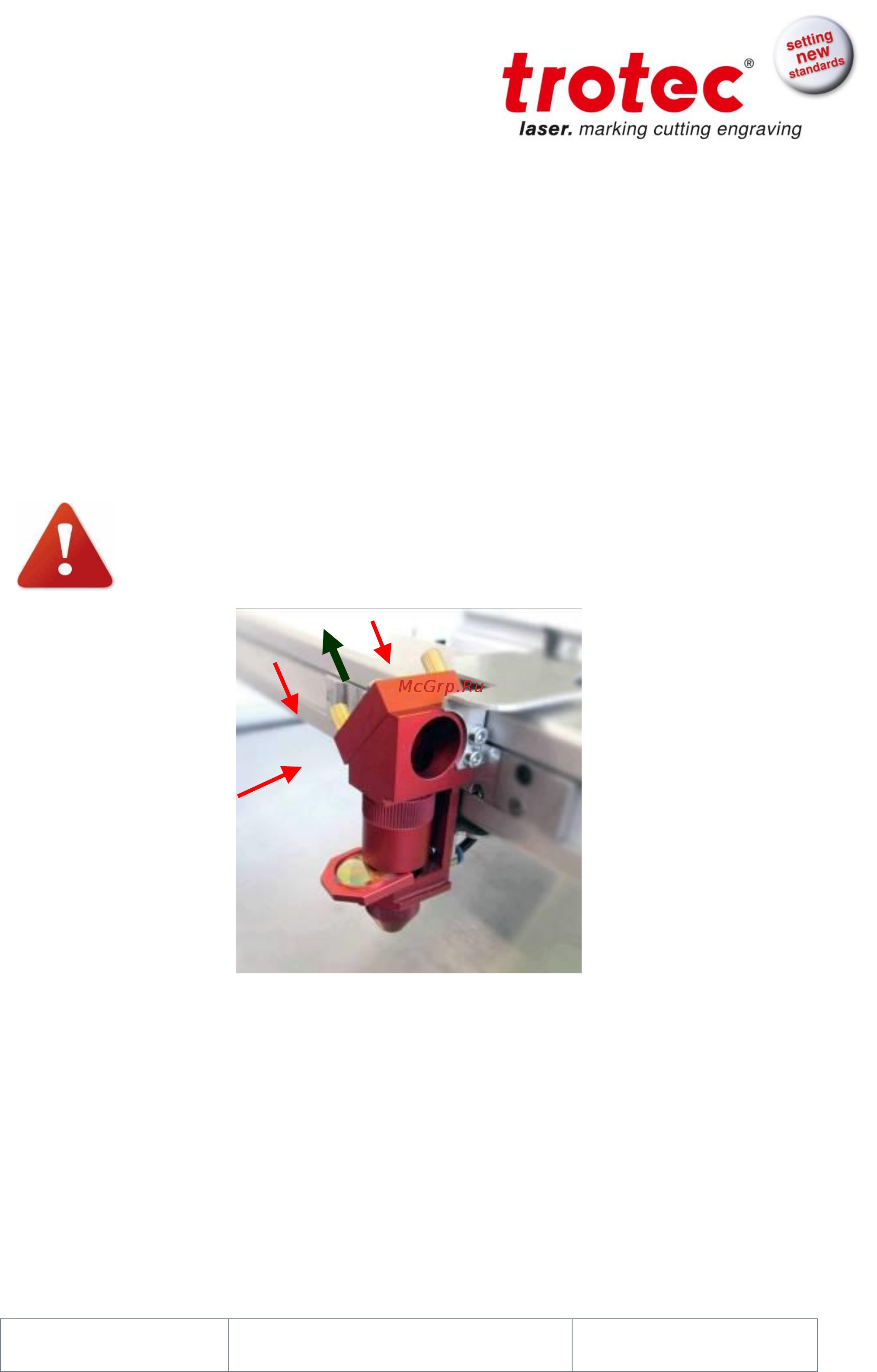

MIRROR #4
1. While holding the mirror, loosen the two knurled screws (1) and lift the mirror from the
mirror holder (2).
Pay attention that the mirror doesn't grind over the mirror holder, as it can be
scratched very easily.
2. Use a drop of lens cleaning liquid from the accessories box and, while holding the
mirror on an angle, flush the surface of the mirror, to wash away coarse soiling.
3. Put the mirror on a working surface. Put some drops of lens cleaning liquid on the
mirror and leave the liquid to take effect for approximately 1 minute.
4. Use a folded piece of lens cleaning tissue soaked with lens cleaning liquid and wipe
gently over the mirror only once. Use a fresh lens cleaning tissue soaked with lens cleaning
liquid each time and again wipe over the mirror only once. Then wipe the mirror dry with a
new dry lens cleaning tissue. Never use a cleaning tissue twice, as it could carry dust
particles, which can scratch the mirror surface.
5. Examine the mirror and repeat the cleaning process, if necessary.
2
1
