Page 28
General Description
7.5 Water heat exchanger
Evaporator
All SLS R134a units have a “Shell & Tube” water
heat exchanger with direct expansion multi refriger-
ant circuits. The tube bundle can be removed for in-
spection or maintenance.
The evaporators are insulated with UV ray-proof 19
mm-thick anti-condensate closed-cell polyethylene
material.The external surface is provided with wire
resistors (130 Watt), which prevent frosting at low
temperatures (down to –18°C) when the unit is off.
Desuperheater
All units are available with desuperheaters (DSH).
DSH is refrigerant / water heat exchanger with
brazed plates, of "Dual Circuit" type, fitted on the
compressor discharge pipe.
Each unit is equipped with 2 exchangers, one for
each circuit. Exchangers are insulated with UV ray-
proof 19 mm-thick anticondensate closed-cell poly-
ethylene material.

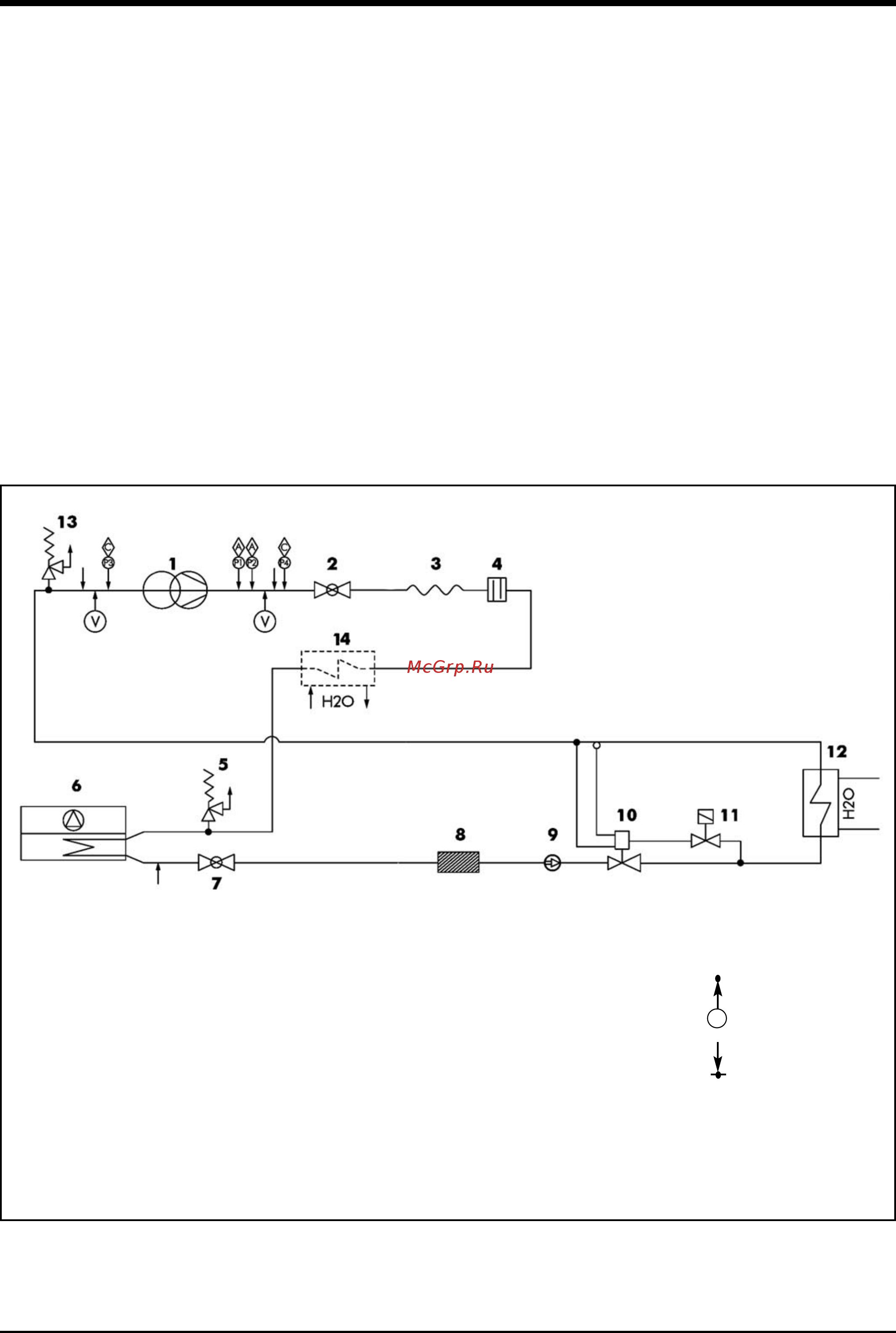

SLS - refrigerant circuit of unit with shell & tube evaporator
Note: the units are equipped with
two refrigeration circuits.
Only one circuit is illustrated
for the sake of simplicity.
7 Liquid cock
8 Filter
9 Sight glass
10 Thermostatic valve
11 Solenoid valve
12
Shell & Tube exchanger
13 Safety valve
14 Desuperheater (optional)
Components:
1 Screw compressor
2 Screw compressor’s
delivery cock
3 Flexible hose
(absorber)
(only for ELN)
4 Silencer (only for ELN)
5 Safety valve
6 Coil
Safety devices:
A HP pressure switch
B LP pressure switch
C Transducer
Filling/discharge and
pressure intakes Freon
Suction points for
vacuum
V
SLS1-en.qxp 29-06-2007 15:37 Pagina 28
