Page 29
English
7.6 Air heat exchanger
Coils are made of copper pipes in staggered rows,
mechanically expanded inside an aluminium finned
pack.
7.7 Fans
The condenser’s fans are of large diameter (800
mm) axial type. They are provided with external dif-
fusers (nozzles), that reduce the aeraulic motor to a
large extent. Each fan is provided with galvanised
steel accident-prevention guard, painted after assem-
bly. Finally, the fans’ motors are completely closed,
protection class IP54, protection thermostat im-
mersed in windings.
Total heat recovery condenser
All units are available with total heat recovery con-
denser (THRC). THRC is refrigerant / water heat ex-
changer shell and tube type, according to chiller
size. THRC is fitted on the compressor discharge
pipe in parallel with the standard cooling circuit.
The heat recovery function is by means of a four-way
valve. Each unit is equipped with 2 exchangers, one
for each circuit. Exchangers are insulated with UV
ray-proof 19 mm-thick anticondensate closed-cell
polyethylene material.
Filling/discharge and
pressure intakes Freon
Suction points for
vacuum
V

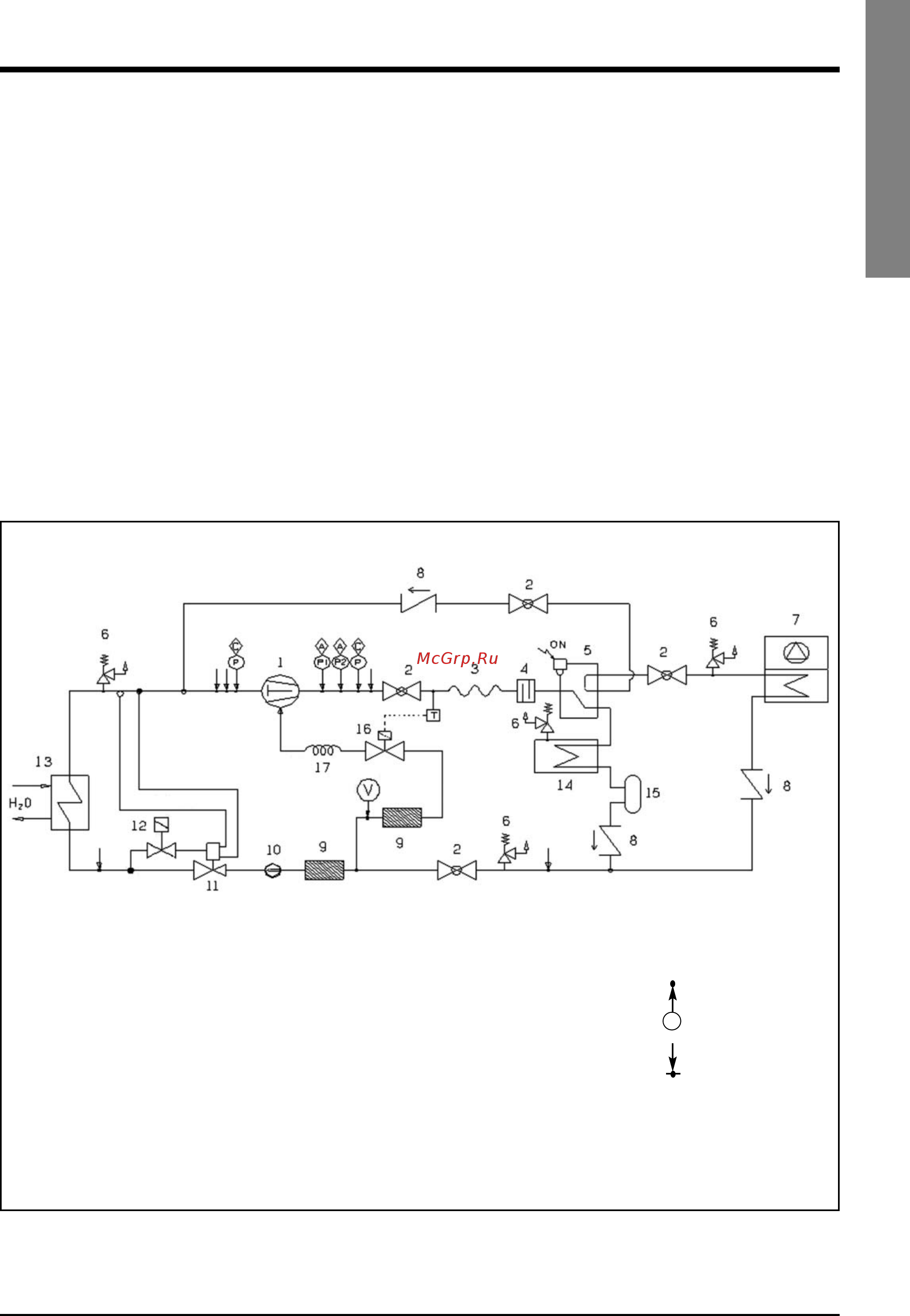

SLS - Refrigerant circuit of units with total heat recovery
Note: the units are equipped
with two circuits. Only
one is illustrated for the
sake of simplicity .
Liquid injection is op
tional
9 Filter
10 Sight glass
11 Thermostatic valve
12 Solenoid valve
13 Evaporator
14 Heat recovery heat exchanger
15 Liquid receiver
16 Solenoid valve
17 Capillary
Components:
1 Screw compressor
2 Shut of valve
3 Flexible hose absorber
(Standard on ELN version)
4 Silencer (Standard on ELN
version)
5 4-way valve
6 Safety valve
7 Coil
8 Non-return valve
Safety devices:
A HP pressure switch
C Transducer
SLS1-en.qxp 29-06-2007 15:37 Pagina 29
