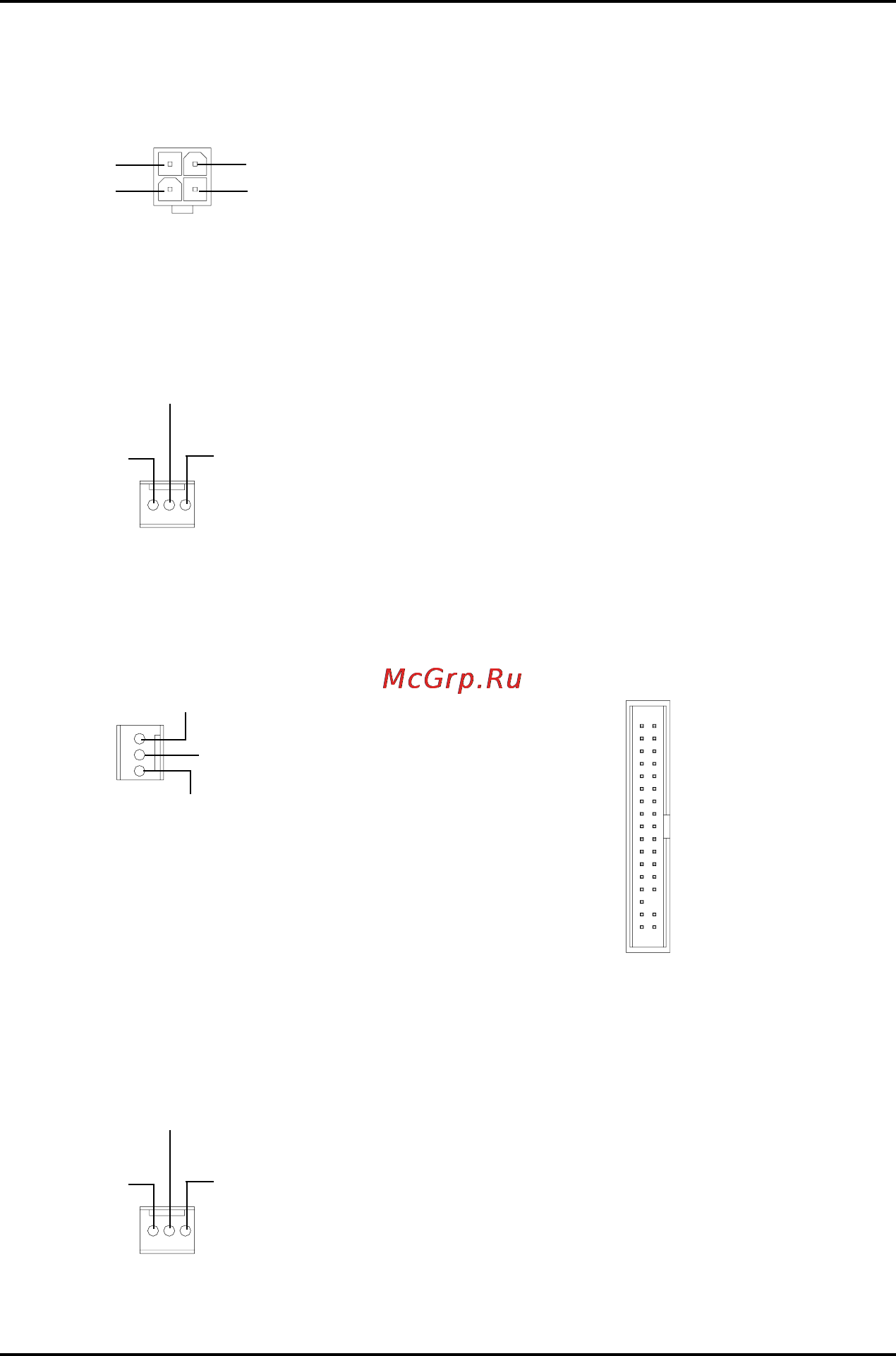

Hardware Installation Process

B) CPU_FAN (CPU FAN Connector)

 This connector (ATX +12V) suppliesthe CPU

operation voltage (Vcore).

If this " ATX+ 12V connector" is not connected,

system cannot boot.

A) AUX_12V ( +12V Power Connector)

 Please note, a proper installation of the CPU

cooler is essential to prevent the CPU from

running under abnormal condition or damaged

by overheating.The CPU fan connector

supports Max. current up to 600 mA.

F) SYS_FAN (System FAN Connector)

+12V

+12V/Control

Sense

GND

+12V/Control

Sense

GND

D ) FDD (Floppy Connector)

T) PWR_FAN (POWER FAN Connector)

+12V/Control

Sense

GND

+12V

GND
