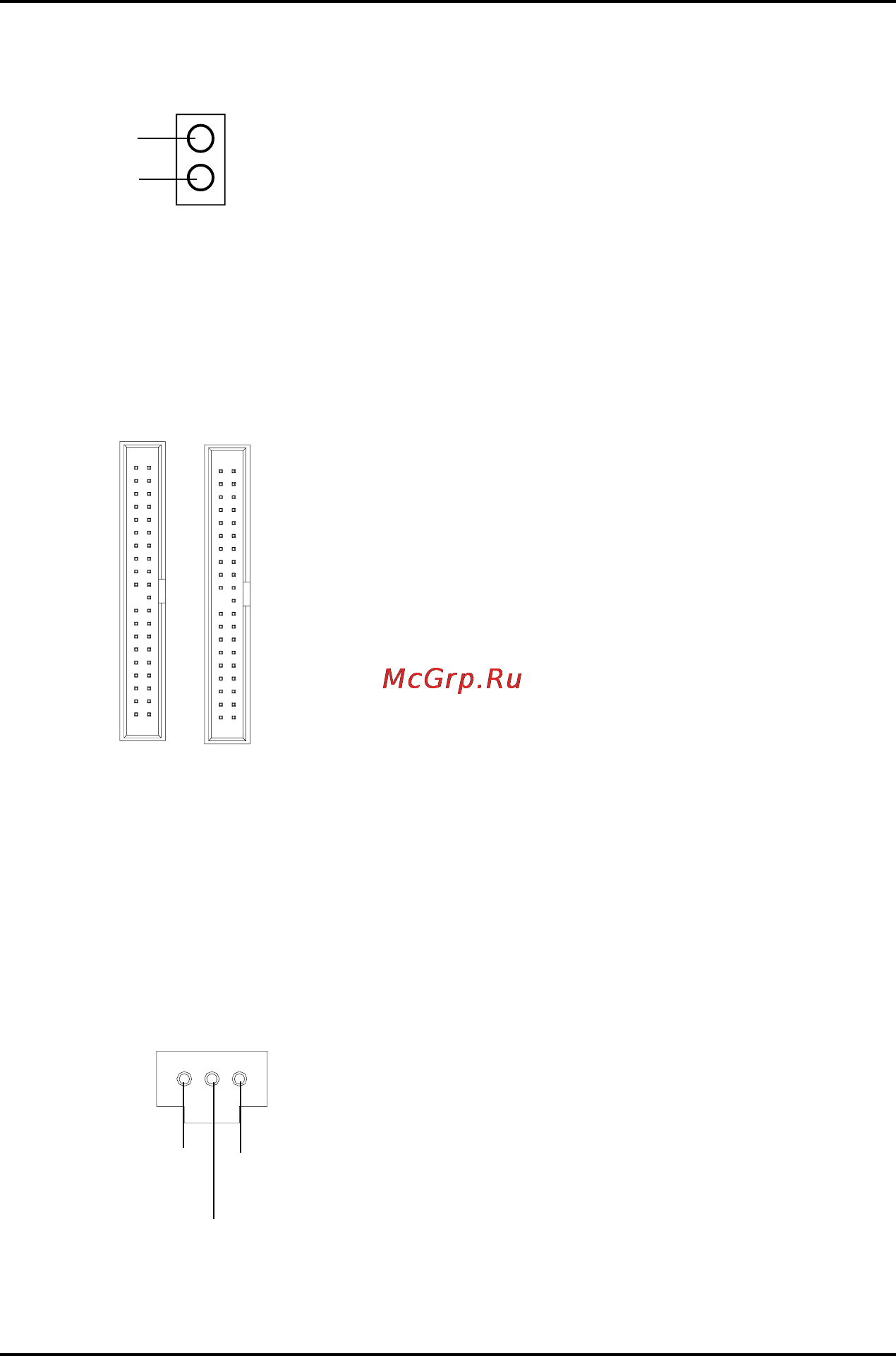

GA-8IGX Motherboard

IDE2

E) IDE1/IDE2 [IDE1 / IDE2 Connector(Primary/Secondary)]

 Important Notice:

Please connect first harddisk to IDE1

and connect CDROM to IDE2.

IDE1

M) SPDIF (SPDIF)

 The SPDIF output is capable of providing digital

audio to external speakers or compressed AC3

data to an external Dolby Digital Decoder. Use

this feature only when your stereo system has

digital output function.

VCC

SPDIF OUT

GND

H) CI (CASE OPEN)

 This 2 pin connector allows your system to

enable or disable the system alarm if the sys

tem case begin remove.

Signal

GND
