Gigabyte GA-8IGX [24/95] C atx atx power

GA-8IGX Motherboard

C) ATX (ATX Power)

 AC power cord should only be connected to your power supply unit after ATX power cable and other

related devices are firmly connected to the mainboard.

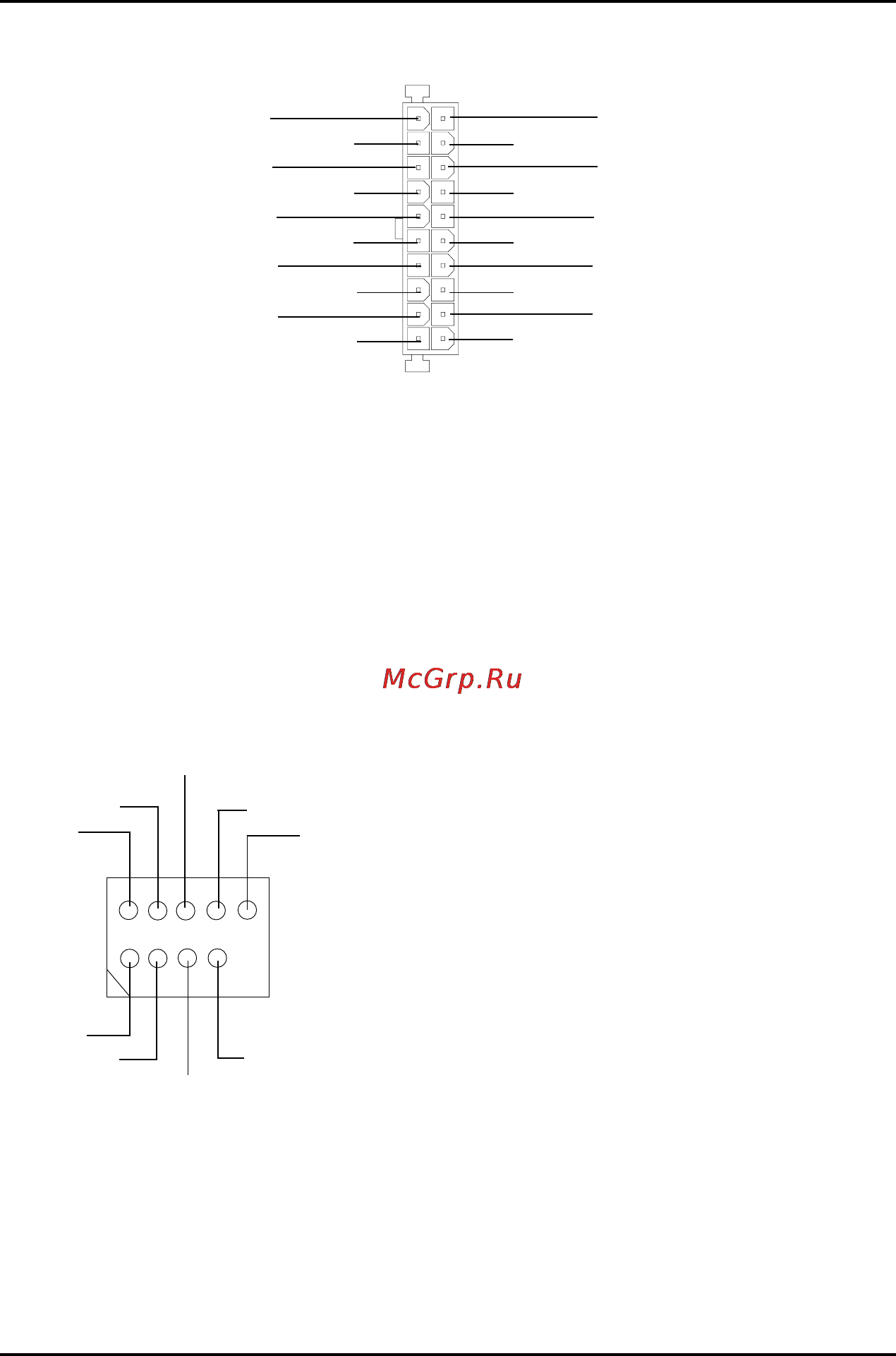

PS-ON(Soft On/Off)

3.3V

GND

VCC

+12V

5V SB (Stand by +5V)

Power Good

3.3V

GND

VCC

-5V

-12V

 Be careful with the polarity of the front

panel USB connector. Check the pin

assignment while you connect the front panel

USB cable. Please contact your nearest dealer

for optional front panel USB cable.

GND

USB Dy+

USB Dx+

GND

USB Over Current

K) F_USB1/F_USB2 (Front USB Connector)

(F_USB1 & F_USB2 connectors in yellow are for USB 2.0)

USB Dx-

Power

USB Dy-
