Hardware Installation Process

P) BAT1 (Battery)

CAUTION

 Danger of explosion if battery is incorrectly

replaced.

 Replace only with the same or equivalent

type recommended by the manufacturer.

 Dispose of used batteries according to the

manufacturer’s instructions.

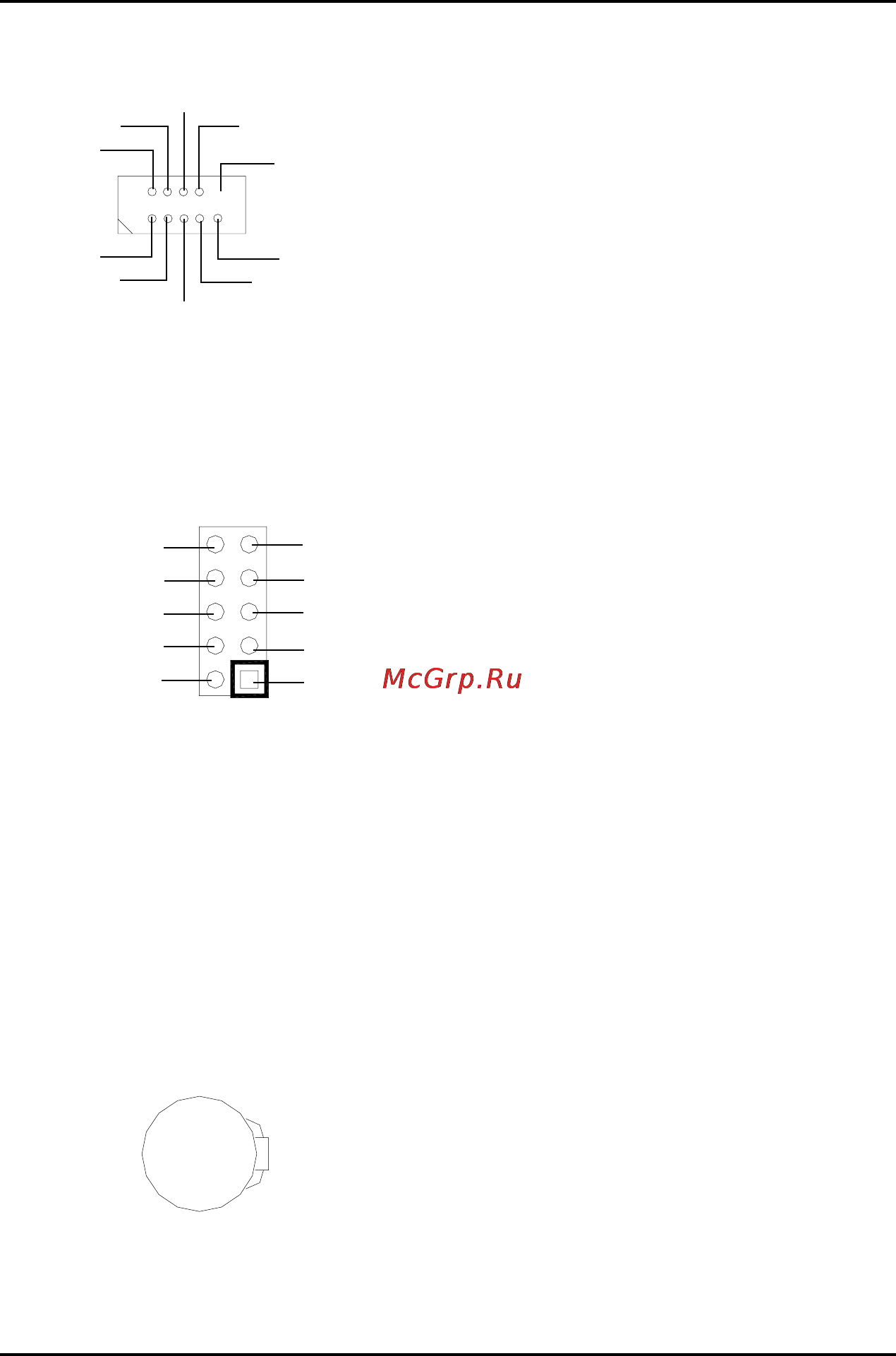

L) COMB (COM B Connector)(White)

NDCDB-

NDTRB-

NSOUTB

NRIB-

GND

NRTSB-

NCTSB-

NDSRB-

NSINB

I) IR_CIR (IR/CIR)

 Make sure the pin 1 on the IR device is

aling with pin one the connector. To

enable the IR/CIR function on the board,

you are required to purchase an option IR/

CIR module. For detail information please

contact your autherized Giga-Byte

distributor.

To use IR function only, please connect IR

module to Pin1 to Pin5.

IRRX

GND

IRTX

VCC

GND

CIRRX

VCC
